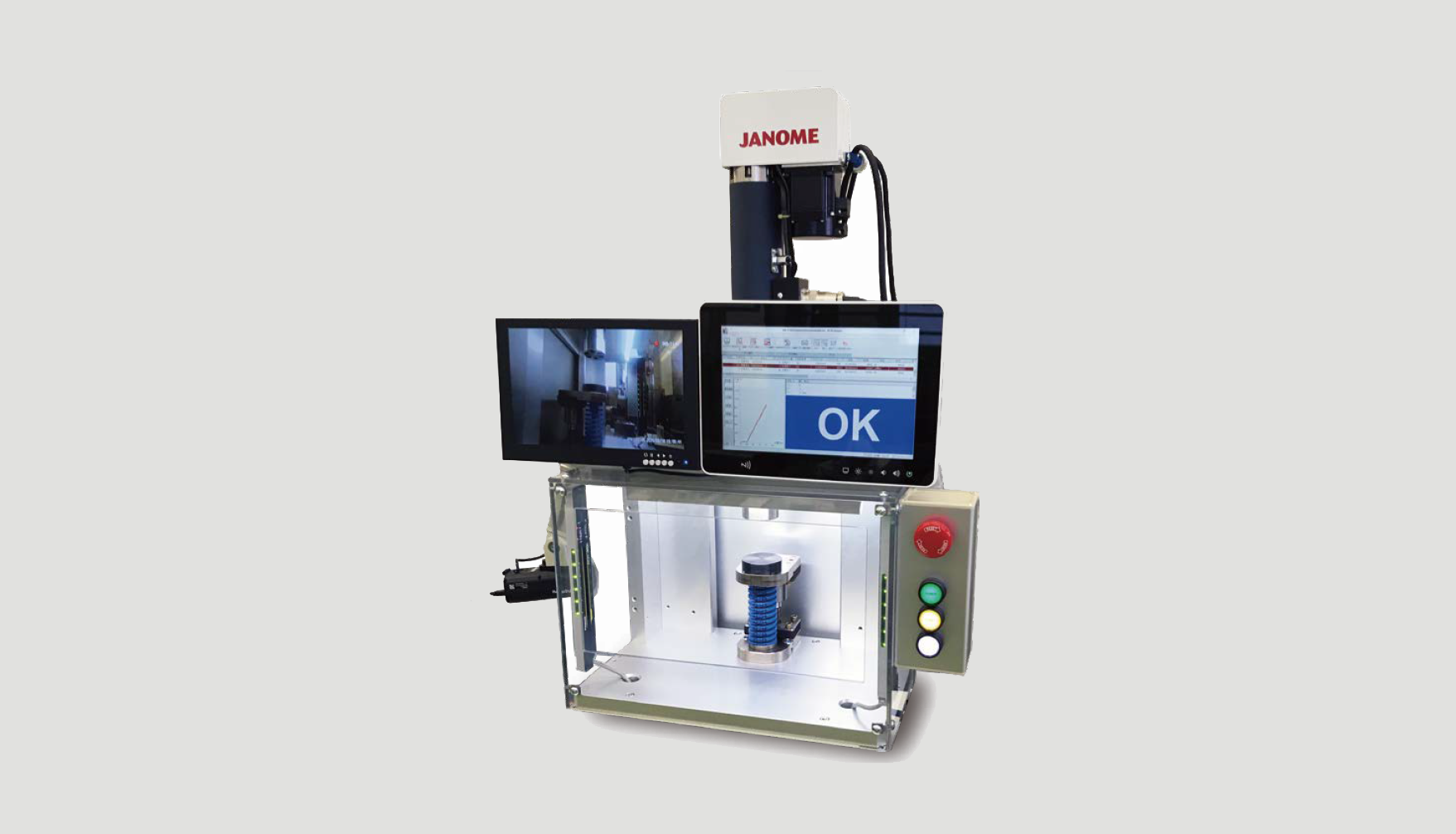

Touch panel interface for janome servo press

TOUCH PANEL INTERFACE FOR JANOME SERVO PRESS

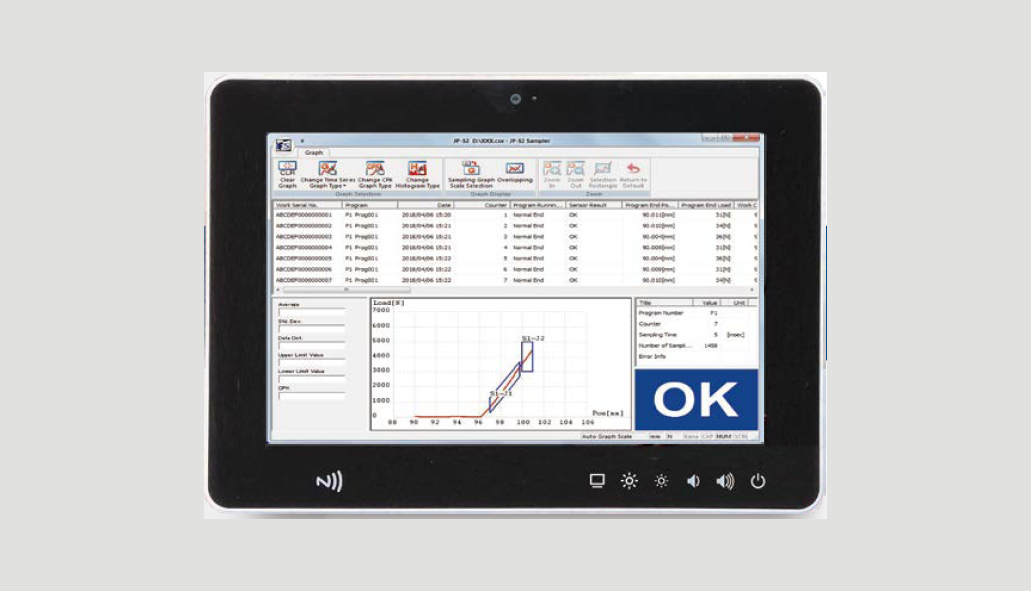

View and analyze process parameters and graphs

Comperehensive press control at your fingertips!

Immediate access to Janome's dedicated PC software applications
Quick installation, set up and use immediately
Seperated Adminstrator and Operator accounts to prevent unauthorized access to program data
View sequential quality control data for multiple press units at the same time
No need for a teching pendant or separate PC
Large result data storage capacity, retrieve data easily via a USB memory
Use Windows 10 IoT Enterprise, avoid the hassle of periodical system updates
Ideal for inline installation.

Display	Touch panel display 10.1" (1280x800pix)
External I/O Connector	1 x RJ45 for RS232 or RS422 or RS4852 x USB2.0 Type A1 x 10/100/1000 Ethernet1 x 4-pin 3.5mm Audio Jack
OS	Windows 10 IoT Enterprise
Processor	Intel Atom® x5-Z8350: 2M Cache, up to 1.92 GHz
System Memory	2GB
Storage	Up to 32GB
Dimension	270 x 193 x 28 mm
Weight	1.1 kg
Operating temperature	0~40 deg. C
Operating humidity	0~90% relative humidity, non-condensing
