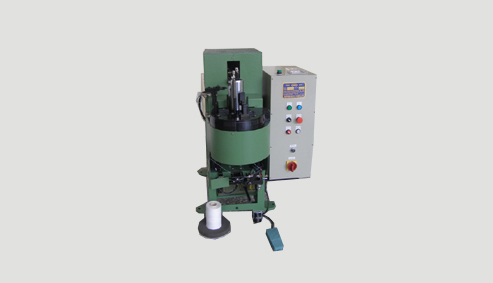

This machine equipped with thumb switch to control the spindle, speed, electric magnetic clutch brake and frequency inverter to control the lacing speed and adjustable spindle speed.
It also equipped tension device to adjust the lacing tension. Lacing coil in the shape of tortoise shell increases the lacing efficiency.
| Specification | GMW L-1F |
| Lacing Thread Dia. (mm) | max Ø1.2 |
| Stator OD/ID Limit (mm) |
IDØ35-140 ODØ200 max |
| Stator Core Length Limit (mm) | 20-175 |
| Cycle Time (sec) | <0.7 sec/time |
| Floor Area (W*L*H) (cm) | 85*120*130 |
| Machine Weight (Kg) | 480 kg |
| Main Operation Power Source (KW) | 0.4 |
| Max. Power Consumption (KW) | 1.4 |
| Pneumatic Source (Kg/cm²) | 4-7 |
| Use voltage | Can be customized according to the voltage used in each country |
