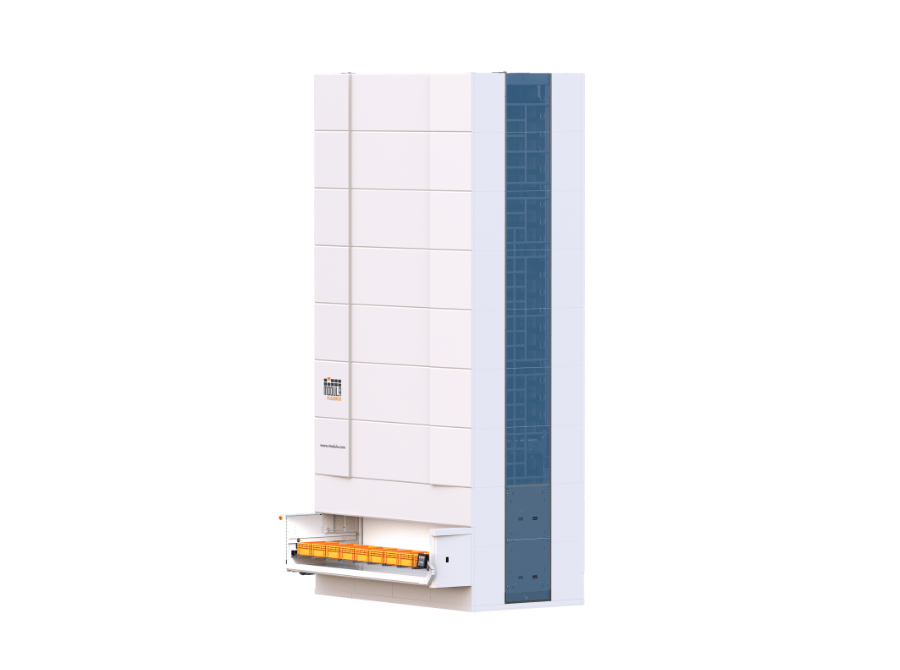

SMART WAREHOUSE MODULA LIFT - MX SERIES

The best automated warehouse system to recover space and increase security

Model: MX25 - MX25D, MX50 - MX50D, MX75 - MX75D, MX1000 - MX1000D

Technical Information

Model

Tray Width  (mm)

Tray Depth (mm)

Tray Wall Height (mm)

Maximum Tray Payload Capacity (kg)

Unit Footprint Internal Bay (WxD)

Unit Footprint External Bay  (WxD)
MX25 3.100 654 45/70/120 250 W = 3.517
D = 2.556		 W = 3.517
D = 3.246
MX25D 3.100 857 45/70/120 250 W = 3.517
D = 3.165		 W = 3.517
D = 4.058
MX50 3.100 654 70/120 500 W = 3.517
D = 2.556		 W = 3.517
D = 3.246
MX50D 3.100 857 70/120 500 W = 3.517
D = 3.165		 W = 3.517
D = 4.058
MX75 3.100 654 70/120 750 W = 3.517
D = 2.556		 W = 3.517
D = 3.246
MX75D 3.100 857 120 750 W = 3.517
D = 3.165		 W = 3.517
D = 4.058
MX1000 3.060 654 120 990 W = 3.517
D = 2.556		 W = 3.517
D = 3.246
MX1000D 3.060 857 120 990 W = 3.517
D = 3.165		 W = 3.517
D = 4.058
