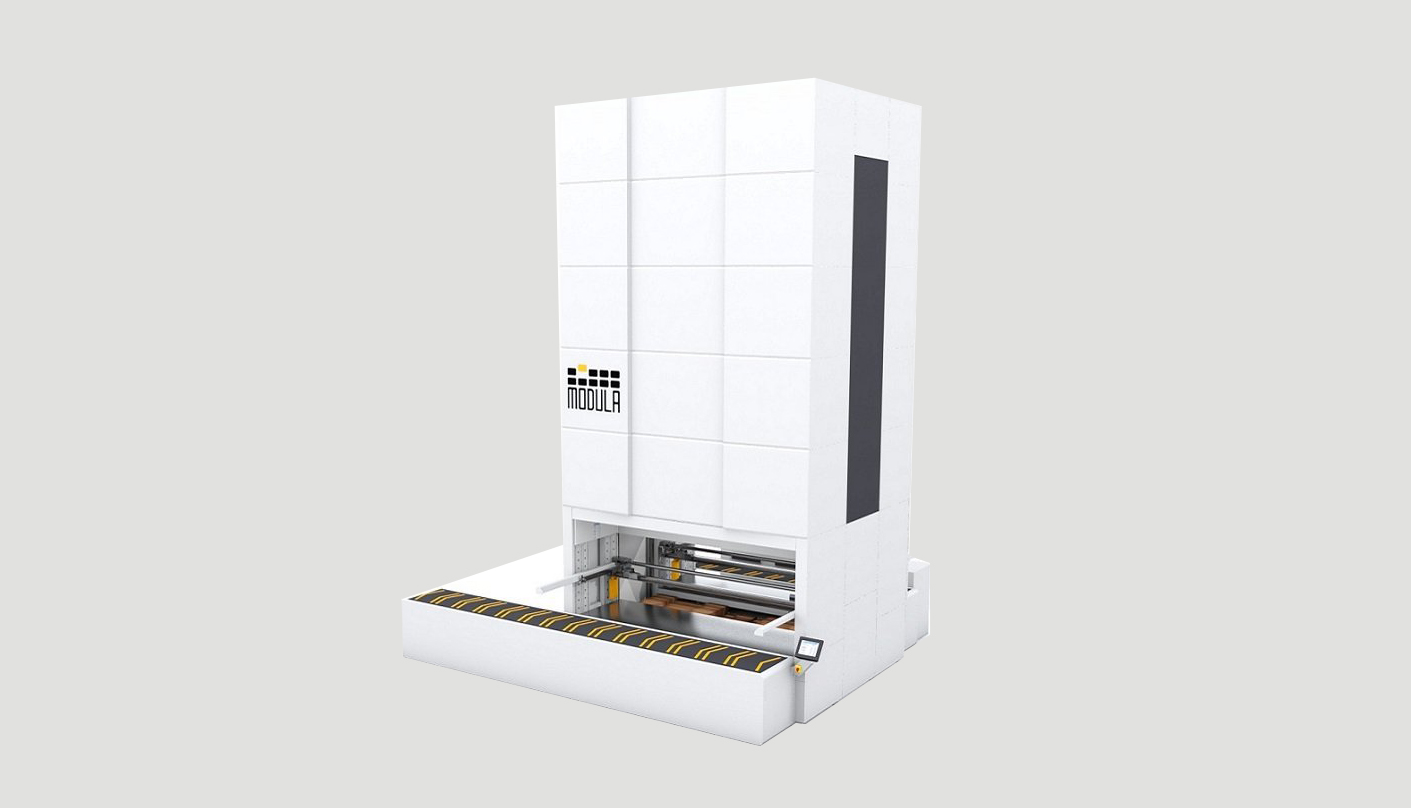

SMART WAREHOUSE MODULA - ONEPICK SERIES

The best automated warehouse system to recover space and increase security

Technical Information

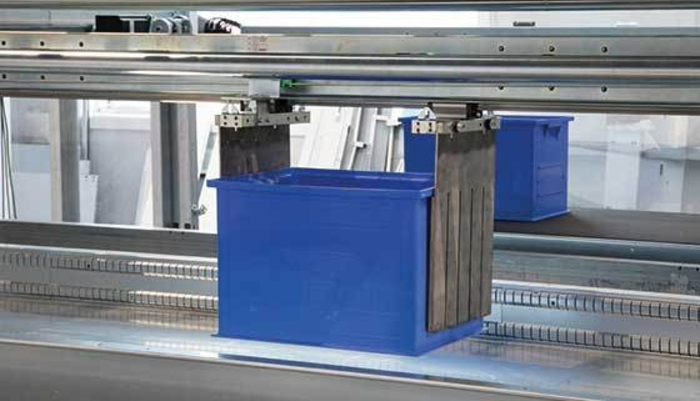

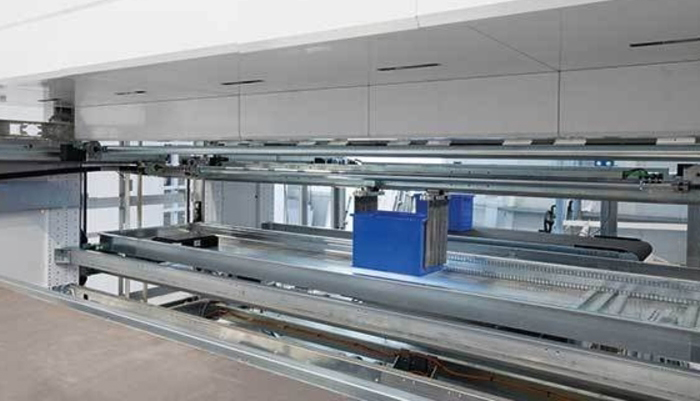

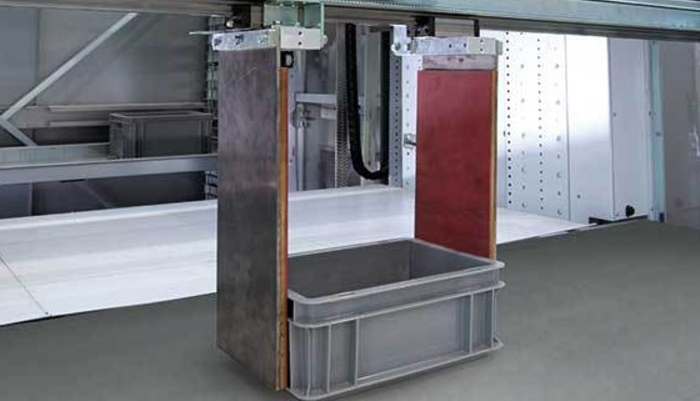

  • Modula One-pick system allows integration on all models of Modula LIFT MA&MA-D, MC&MC-D, ML&ML-D, MX&MX-D

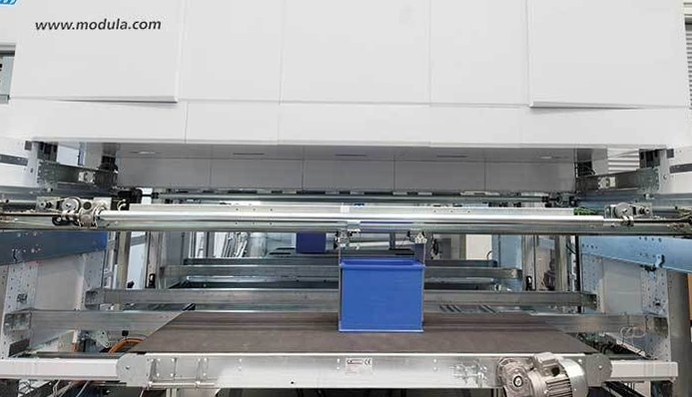

  • The Modula One-pick system is fully automatic and safety. Easy to integrate with conveyor systems, AGV, AMR, ...



Unit height:

from 3,300 mm to 16,100 mm

Total NET weight:

90,000 kg

Unit height increment:

200 mm

Number of bays:

Up to 3 Onepick, also on the same side and displaced

Tray storage pitch:

25mm

Maximum load unit height:

360 mm

Tray widths:

from 1,900 mm to 4,100 mm

Maximum load unit weight:

25 kg

Tray depths:

654 mm & 857 mm

Option for opposed bays

NET tray payload:

250 / 500 / 750 / 990 kg

 Dynamic tray height storage

Load-bearing structure in zinc-coated steel
Eagle steel-reinforced toothed belt transmission
Elevator guiding system with 6 HDPE rollers per side
Multiple payload tray management

 Retrofit possible on existing
Modula Lifts (New Generation)
