Stator coil lacing machine gmw l-1d

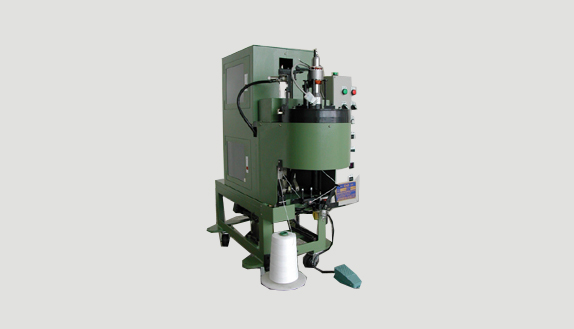

STATOR COIL LACING MACHINE GMW L-1D

MODEL: GMWL-1D

Technical Information

It also equipped tension device to adjust the lacing tension. Lacing coil in the shape of tortoise shell increases the lacing efficiency.

STATOR OUTSIDE DIA.	200 mm Max
STATOR INSIDE DIA.	27 mm Min.
STATOR STACK HEIGHT&COIL END HEIGHT	185 mm Max.
STATOR DRIVE NUMBER	6 ~ 36
POWER	220V/ 380V , 3 PHASE , 50/60HZ
DRIVE MOTOR	0.4 KW AC Motor
OPERATION	Pneumatic 4 –6 kgs/cm²
DIMENSION	100(L)65(W)115(H)cm
WIGHT	535Kgs

download Request a quotation
