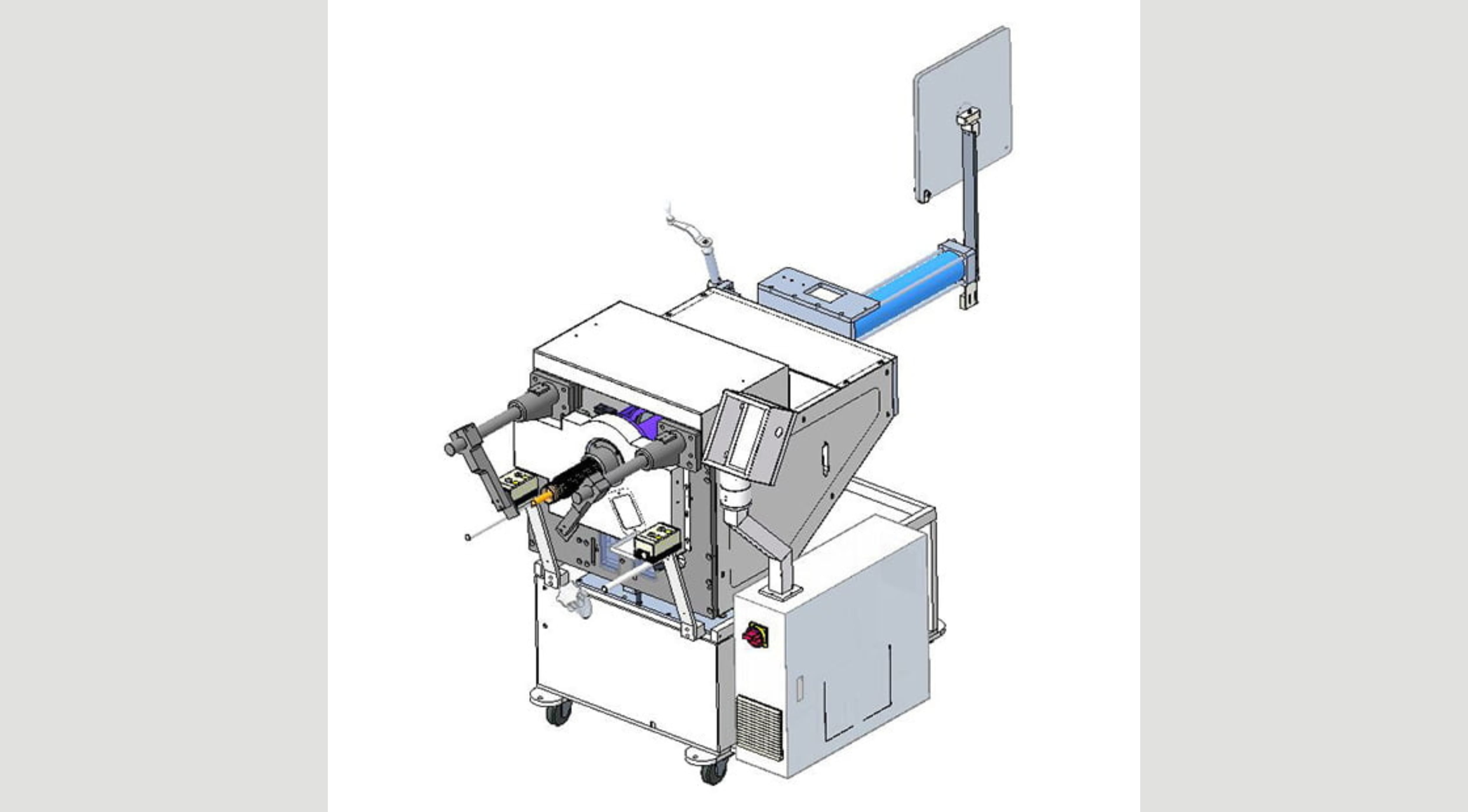

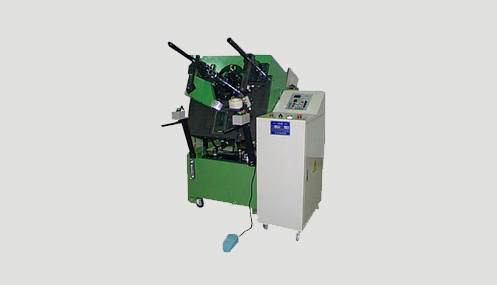

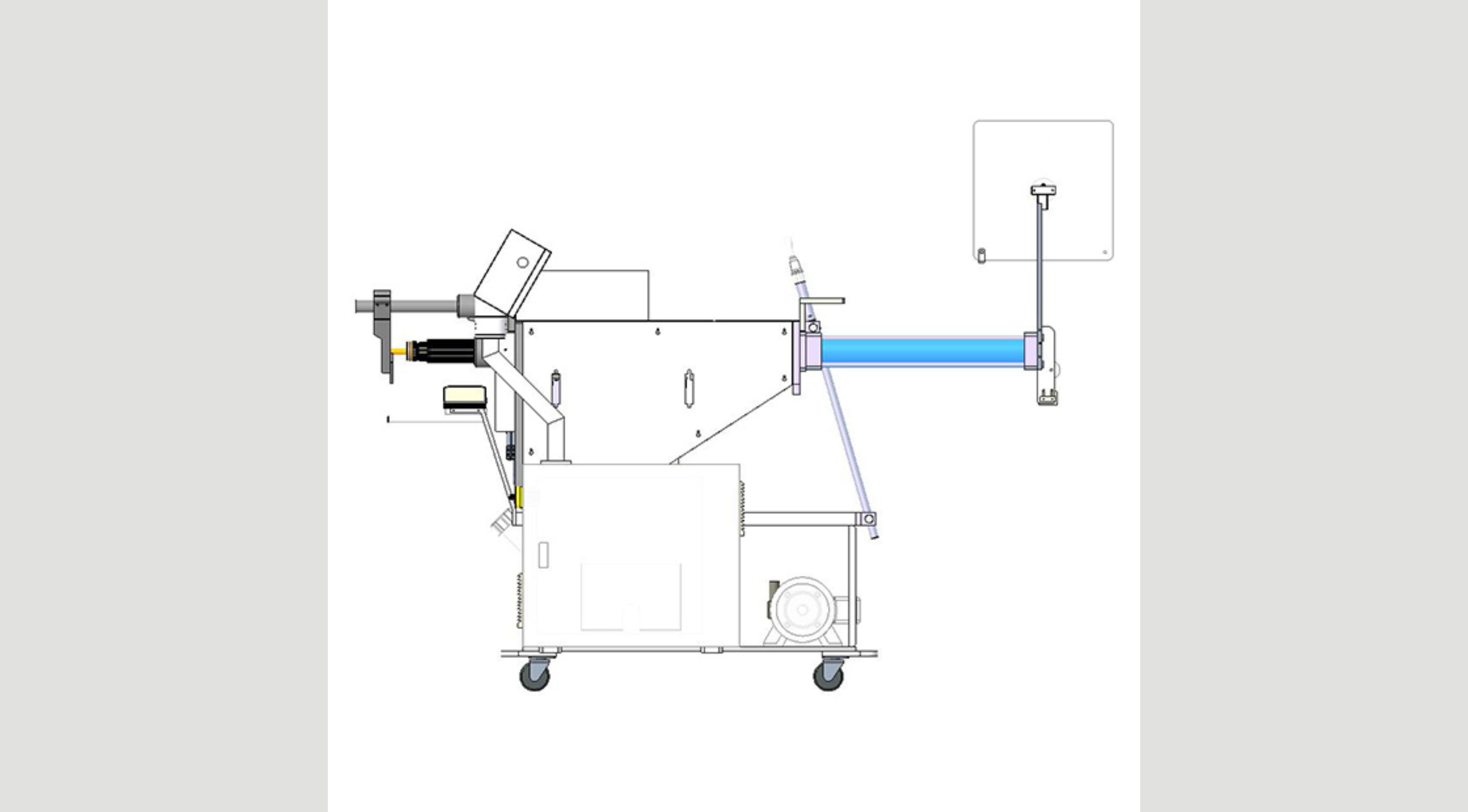

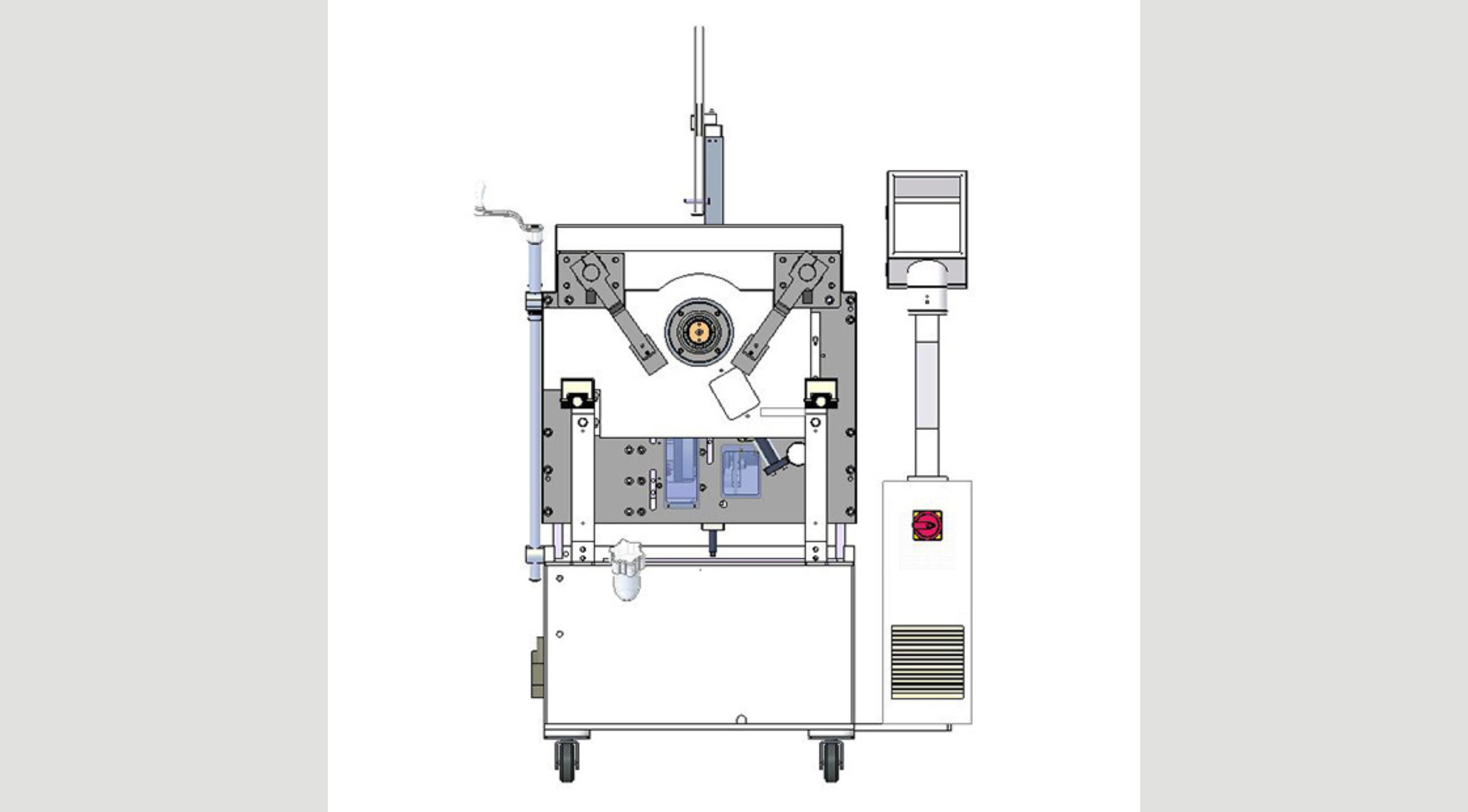

STATOR COIL & WEDGE INSERTER GMW CI-3A

MODEL: GMWCI-3A

Technical Information

This machine is designed for inserting wound coils & wedges or separators into the stator slots. This machine has a robust construction to minimize the occupying spare.
It only takes 10-15 minutes to complete tool changing.

Specification GMW CI-3A
Stator OD/ID Limit (mm) Ø18-120
Stator Core Length Limit (mm) 10-120
Cycle Time (sec) <30 sec/time
Floor Area (W*L*H) (cm)  120*120*180
Machine Weight (Kg) 1400 kg
Main Operation Power Source (KW) 2.3
Max. Power Consumption (KW) 2.7
Pneumatic Source (Kg/cm²) NA
Use voltage Can be customized according to the voltage used in each country
