Technical Information

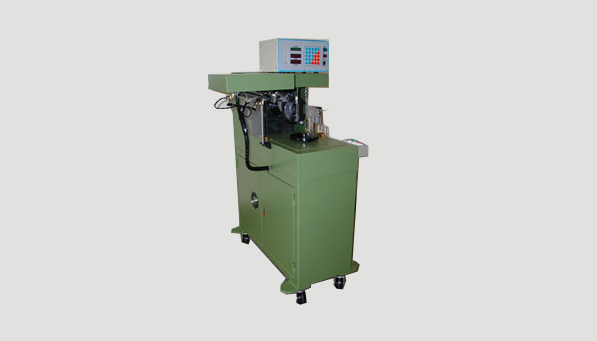

MODEL GMWC-8A
WIRE DIAMETER 0.05 – 0.4 mm
WINDING ANGLE 0度 - 180 度
STATOR INSIDE DIA 30 – 80 MM
STATOR STACK HEIGHT 20 – 40 MM
CONTROL Microprocessor Control AC Servomotor & Stepping Motor
WINDING STEPS 99 Steps
POWER SUPPLY 220V 1. 50/60 HZ
PHNEUMATIC POWER SUPPLY 5 KG/CM²
DRIVE MOTOR 1.5 KW Servo motor
DIMENSION 135(L) * 185(W) * 155(H) cm
WEIGHT 400Kgs
