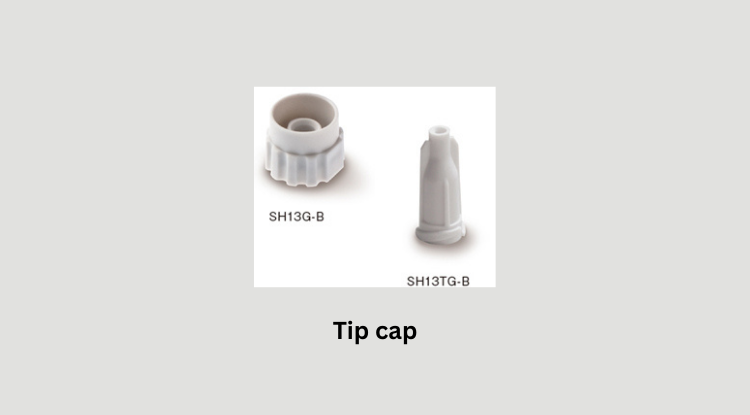

| Tip cap | ||
| Capacity | Product number | Quantity/box |
|---|---|---|
| Common to all types | SH13G-B | 50 |
| SH13TG-B | 50 | |

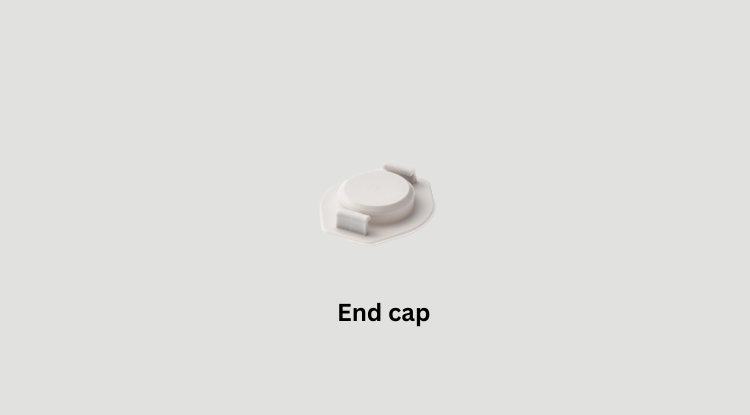

| End cap | ||
| capacity | Product number | Quantity/box |
|---|---|---|
| 3 tsp | SH09ECG-B | 50 |
| 5 tsp | SH10ECG-B | 40 |
| 10 tsp | SH11ECG-B | 30 |
| 30cc/55cc | SH12ECG-B | 20 |

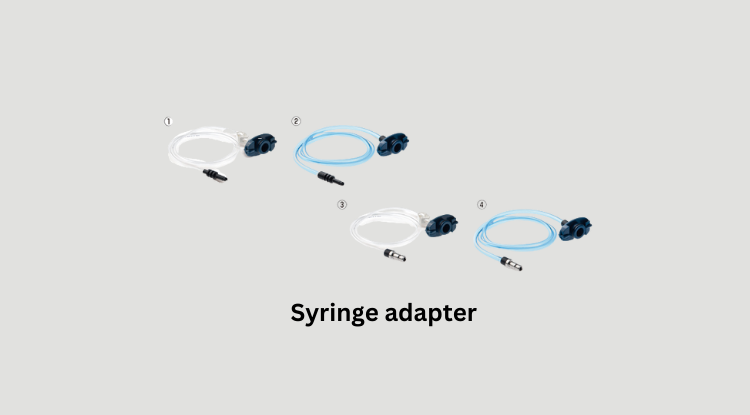

| Syringe adapter | |||||||
|---|---|---|---|---|---|---|---|
| Capacity | Quick connector specifications (standard product) | Metal connector specifications | Quantity /box | ||||
| (1) φ4.0mm | (2) φ6.0mm | (3) φ4.0mm | (4) φ6.0mm | ||||
| 0.9m | 1.8m | 0.9m | 1.8m | 0.9m | |||
| 3 tsp | 1000BSH48 | 1000BSH48-6 | 1000DSH48 | 1000DSH48-6 | 1000BSH48-ST | 1000DSH48-ST | 1 |
| 5 tsp | 1000BSH49 | 1000BSH49-6 | 1000DSH49 | 1000DSH49-6 | 1000BSH49-ST | 1000DSH49-ST | 1 |
| 10 tsp | 1000BSH50 | 1000BSH50-6 | 1000DSH50 | 1000DSH50-6 | 1000BSH50-ST | 1000DSH50-ST | 1 |
| 30cc/55cc | 1000BSH52 | 1000BSH52-6 | 1000DSH52 | 1000DSH52-6 | 1000BSH52-ST | 1000DSH52-ST | 1 |

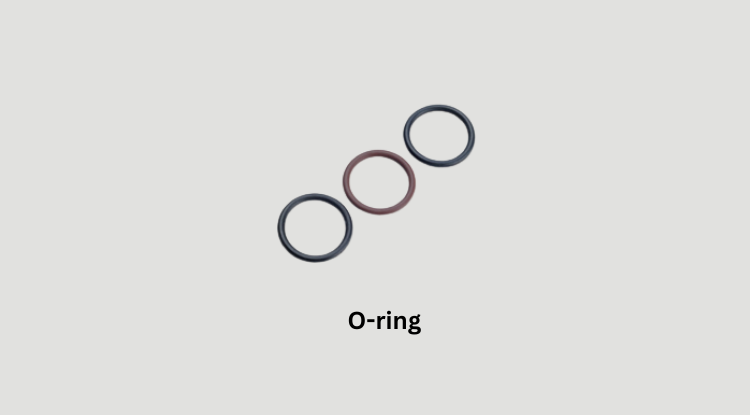

| Replacement O-ring (for adapter) | ||||
|---|---|---|---|---|
| Capacity | BUNA nitrile rubber | VITON fluororubber | EPR ethylene propylene rubber | Quantity/box |
| 3 tsp | SH48R-B | SH48RV-B | SH48RE-B | 10 |
| 5 tsp | SH49R-B | SH49RV-B | SH49RE-B | 10 |
| 10 tsp | SH50R-B | SH50RV-B | SH50RE-B | 10 |
| 30cc/55cc | SH52R-B | SH52RV-B | SH52RE-B | 10 |
