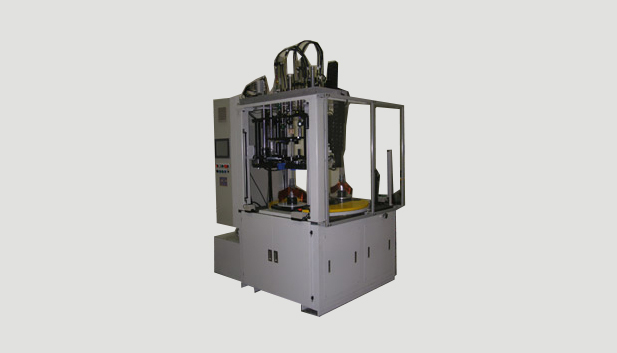

TURN TABLE STATOR COIL AND WEDGE INSERTER GMW CI-7A

MODEL: GMWCI-7A

Technical Information

The close-loop motor drives the action of inserting; therefore, it can provide an excellent ability to locate precisely. Beside, alignment has on/off molds to choose and is driven by air press. It reduces not only the operation time but also the mistakes might made by operators.
Double working space on the rotation table can both save working time and improve working efficiency.

STATOR INSIDE DIA. 90 mm Max, 50mm Min
STATOR STACK HEIGHT 120 mm Max, 10mm Min
WEDGE LENGTH 140 mm Max
POWER SUPPLY 220/380V 3Ø. 50/60 HZ
OPERARION & CONTROL PLC CONTROL
DRIVE MOTOR 3.5 KW A.C. MOTOR
DIMENSION 1150(L) * 1150(W) * 2300(H) mm
WEIGHT 2200Kgs
