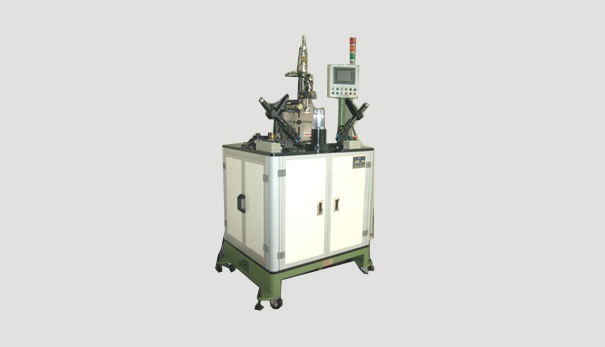

VERTICAL AUTO COIL AND WEDGE INSERTER GMW CI-6A

MODEL: GMWCI-6A

Technical Information

The close-loop motor drives the action of inserting; therefore, it can provide an excellent ability to locate precisely. Beside, alignment has on/off molds to choose and is driven by air press. It reduces not only the operation time but also the mistakes might made by operators.

STATOR INSIDE DIA. 120 mm Max, 30mm Min
STATOR STACK HEIGHT 120 mm Max, 10mm Min
WEDGE LENGTH 135 mm Max
POWER SUPPLY 220/380V 3Ø. 50/60 HZ
OPERATION & CONTROL PNUEMATIC & PLC CONTROL
DRIVE MOTOR 7.5 KW SERVO MOTOR
DIMENSION 850(L) * 1000(W) * 2080(H) mm
WEIGHT 1300Kgs
