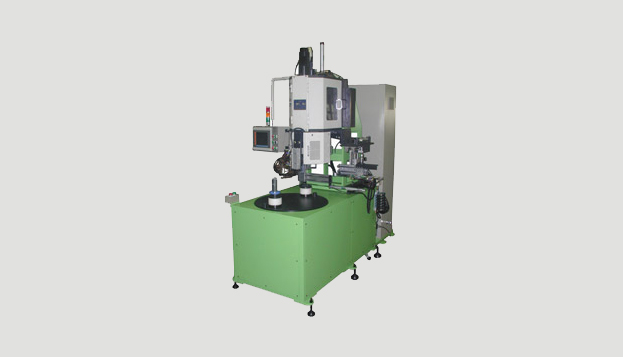

Technical Information

The machines are compactly designed and permit easy maintenance. When stator specifications are changed, only the replacement of one coil former is required and this can be quickly accomplished. Besides, this machine also has following advantages:

1. Synchronized winding-stripping mechanism enables any number of turns on only 30mm length of each step of the coil former to be obtained.
2. Index-table design makes it possible by winding and transfer tools changing simultaneously.
3. Parallel winding is possible with no wire damage. (optional)
4. Concentric winding can be achieved for 2 pole、4 pole、6 pole or 8 pole. 2 pole especially can produce outstanding effect.

WIRE DIA. Ø0.15 ~ Ø 1.0
STATOR STACK HEIGHT 20 ~ 120 mm
(R.P.M.) WINDING SPED
3000 RPM MAX.
DIRECTION OF ELYER ROTATION CW, CCW.
CONCENTRIC COILS MAX: 5
EVERY STEP’S DISTANCE 20mm MAX.
NUMBER OF POLES FOR INDEX
SINGLE OR 3 PHASE
MAX. NUMBER OF TURNS PER POLE MAX. 999
CONTROL METHOD
MICROPROCESSOR CONTROLLER C/W LCD TOUCH PANEL
DRIVE MOTOR
7.5HP AC SERVO MOTOR
PNEUMATIC POWER SUPPLY
4KG /c㎡ MIN
WEIGHT
about 2000 KGS
POWER
3 Ø , 220/380 V, 50/60 Hz , 12.5KVA
DIMENSION
1950(L)*970(W)*2300(H)mm
