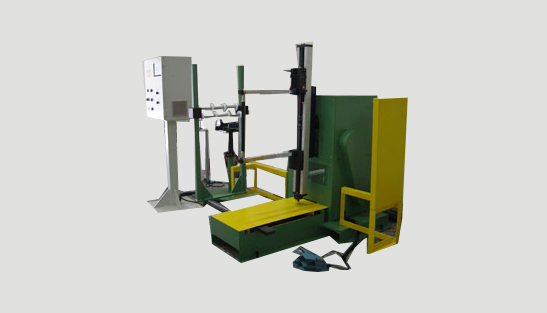

At this machine equipped with stepping motor, and ball crew and gear box, it can wind uniform coils and extend the limit of machine. It also equipped A.C. motor and frequence inverter to control spindle, it can be suitable for more items as well as develop its starting torque and operating under low-speed operation. Long arms with two shafts design make customers can use stack- adjustable winding formers.
| WIRE DIAMETER |
1.0 ~ 2.5mm * 8 WIRES PARALLEL MAX
|
| WINDING WIDTH | 99mm |
| DIAMETER OF COIL BODY |
MAX : 1300mm
|
| CONTROL |
Microprocessor Control & Frequence Inverter
|
| WINDING SHAFT LENGTH | 475mm |
| POWER SUPPLY |
220V/380V , 3O , 50/60HZ
|
| ADJUSTED LENGTH | 550mm |
| DRIVER MOTOR |
3 Phase 5HP 4P AC Motor WITH 1/15GEAR REDUCER
|
| DIMENSION (BODY) |
138(L) * 195(W) * 157(H) cm
|
| WEIGHT | 950 KGS |
| LENGTH OF WINDING ARM | 1325mm |
