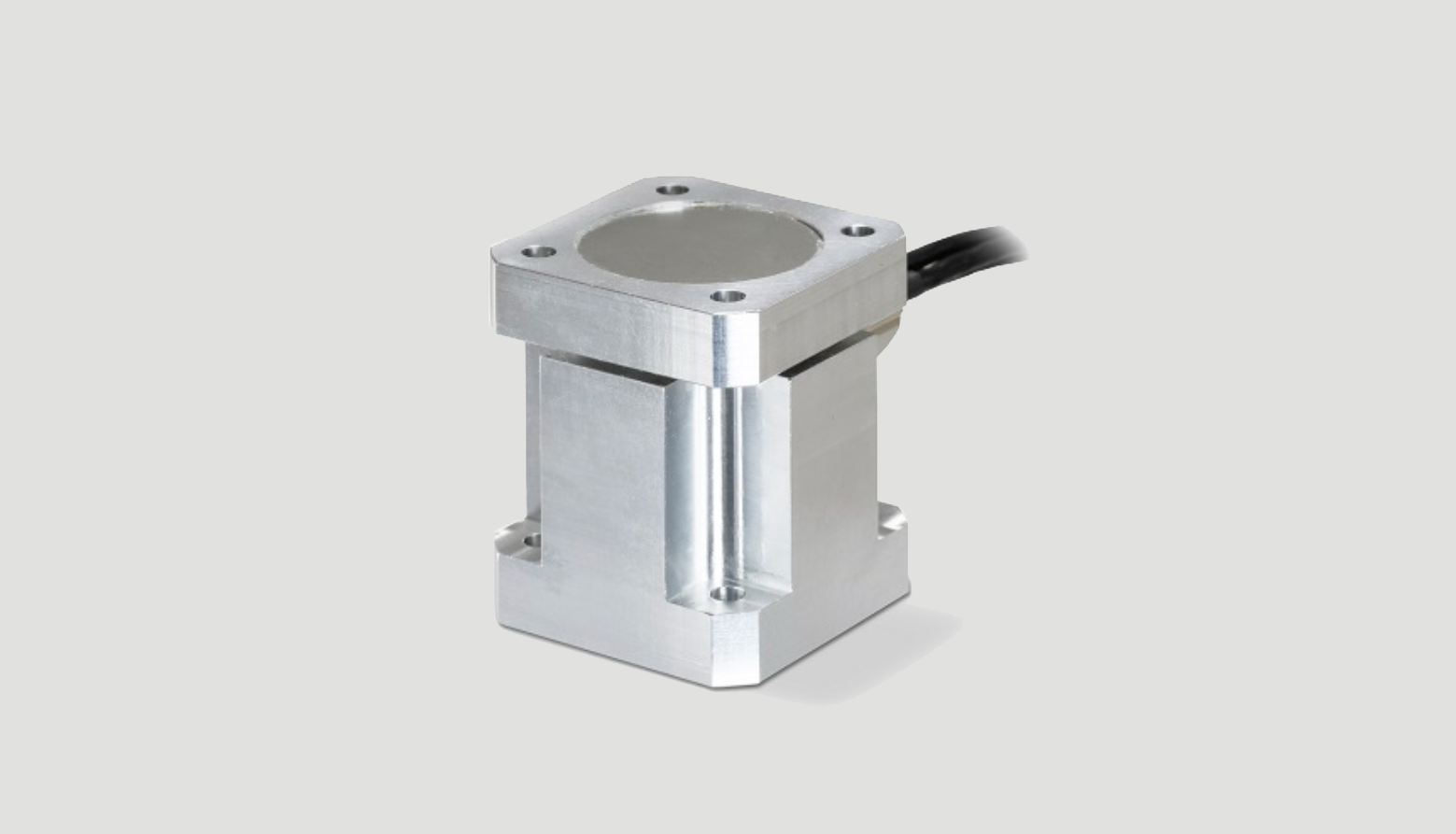

| Model | Sensor：UPP-100NX3, Amplifier：FS300 |
| Rated capacity | Fx, Fy : ±100N、Fz : 100N |
|---|---|
| Power supply voltage | DC24V±15% |
| Consumption current | 150mA or less |
| Load signal output | Fx、Fy、Fz：±5V |
| Load resistance | 2kΩ or more |
| Response | 2kHz |
| I/O signal | Input: Auto zero commandOutput: Auto zero response |
| Safe overload | 500%FS |
| Non-linearity | 0.5%FS |
| Hysteresis | 0.5%FS |
| Repeatability | 0.5%FS |
| Compensated temperature range | 0 to +40℃ |
| Safe temperature range | -10 to +50℃ |
| Temperature effect on zero | 0.5%FS/℃ |
| Temperature effect on span | 0.05%FS/℃ |
| Sensor material | Aluminum alloy |
| Weight | Sensor：Approx. 70g、Amplifier：Approx. 180g(Excluding the cable) |
| Cable | 8 conductor flexible cable 1m(Connector is included for FS300 connection) |
* Above specifications are achieved when the sensor(UPP-100NX3) is connected with the dedicated amplifier(FS300).
* Accuracy is not guaranteed in the range of Fz 0 to -5V.
