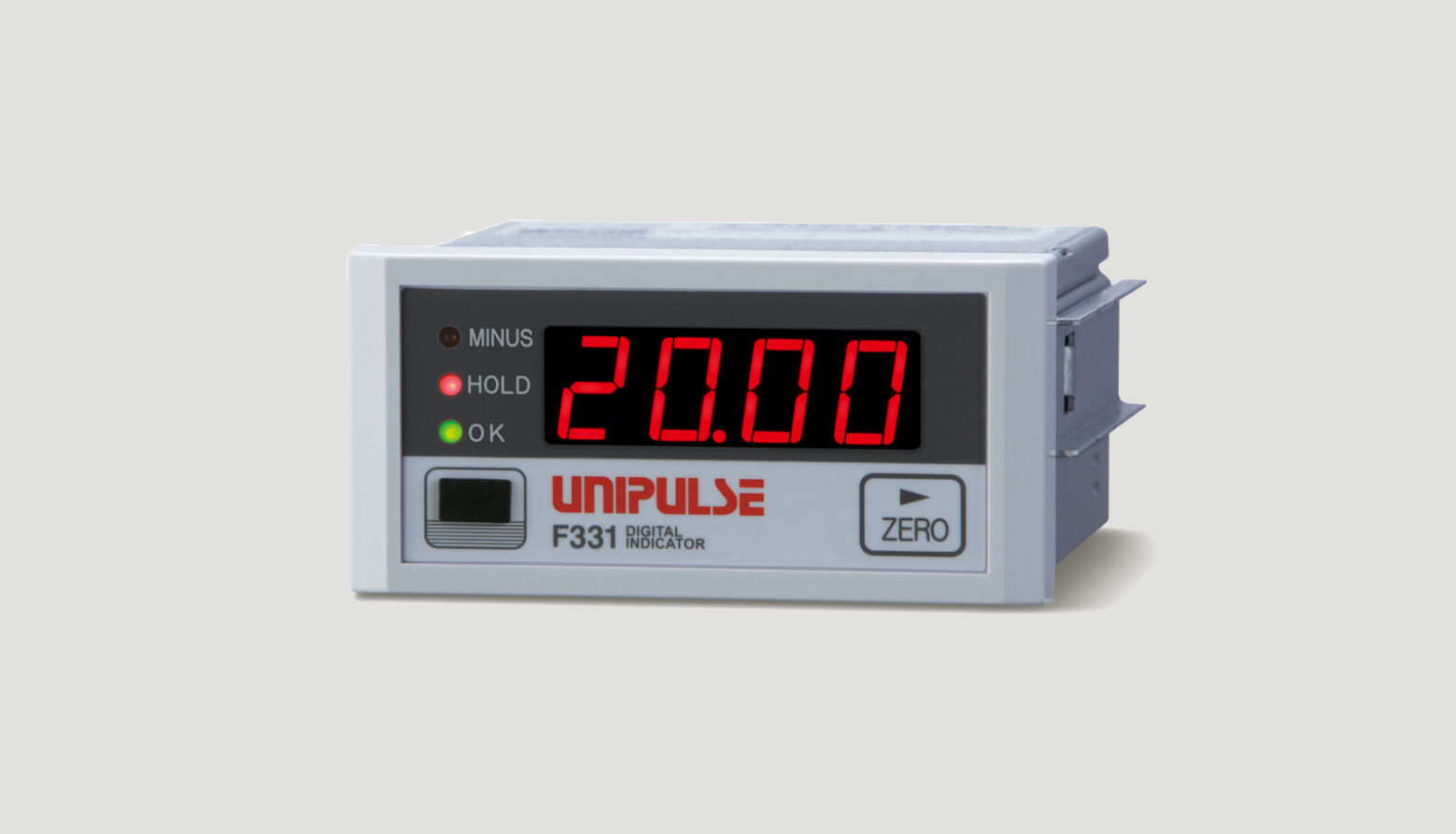

FORCE INDICATOR UNIPULSE F331

Compact DIN 96 x 48 mm Size Digital Indicator

Technical Information

Item Description
Power voltage DC24V(±15%)
Power consumption 6W Max
Inrush current 0.7A, 18msec: DC24V average load condition(cold start at room temperature)
Operation conditions Operation temperature: -10 to +40℃　Storage temperature: -40 to +80℃Humidity:85%RH or less(non-condensing)
Dimensions 96(W)×48(H)×132.5(D)(mm)　(not including protrusions)
96(W)×48(H)×132.5(D)(mm)　(not including protrusions) 92×45(+1-0) (mm)
Weight Approx. 550g
