PRESS FORCE ANALYZER UNIPULSE PFA

Press Force Analyzer PFA Integration Tool

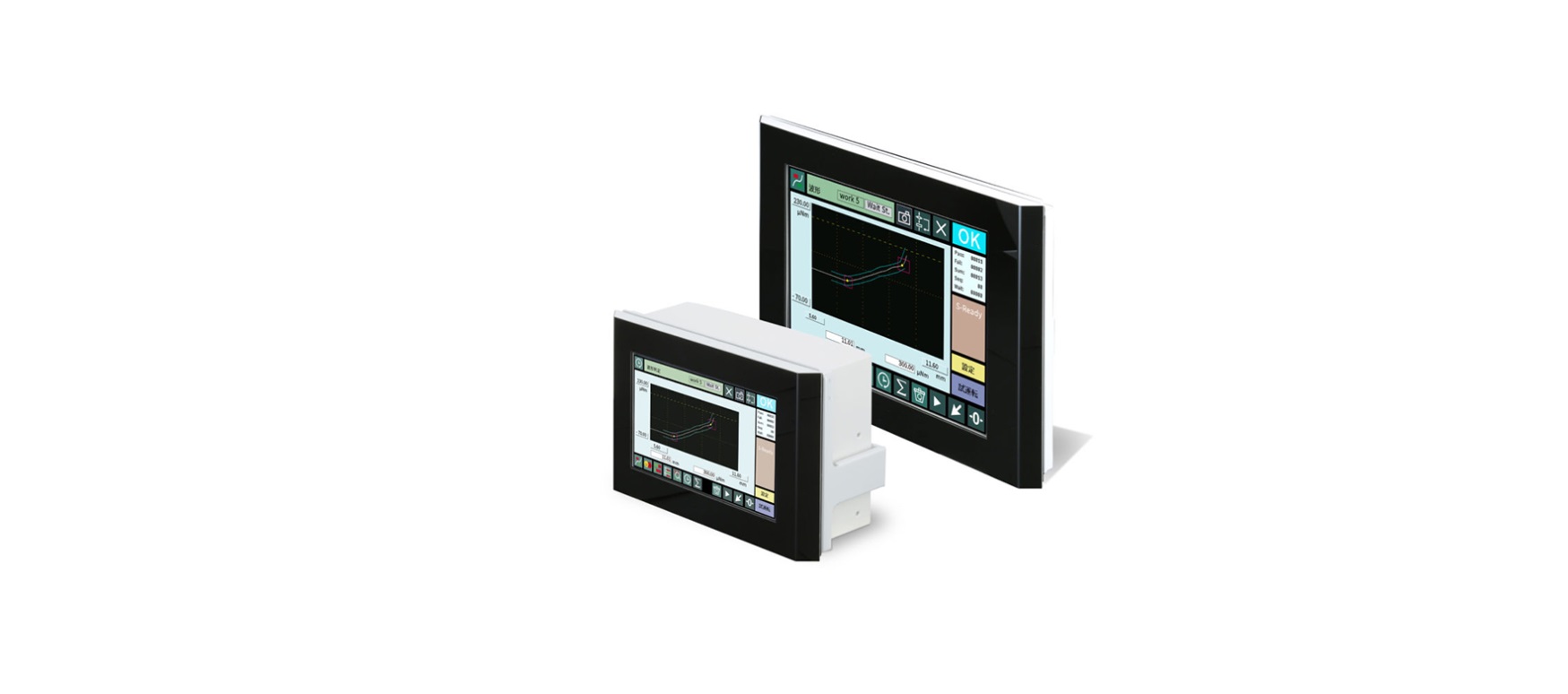

Model : PFA7, PFA10

PFA is an all-purpose type controller that can perform motor control & OK/NOK judgement at the same time!
Sequence can be setup with easy touch panel operation while changing test condition.
Various judgement functions such as waveform judgement by 2 dimensions including “Force vs. Displacement” or “Torque vs. Angle” are mounted, which manages tests inclusively.
Can be cooperated with external peripheral devices & can perform continuous tests independently, thus can construct testing device, pressing machine & screw tightening device etc. without PLC.
Enables high speed press without overshooting.

Common specifications
Power supply voltage	DC24V（±15％）
Power consumption	20W typ.
Operation condition	Operation temperature: -10℃ to +40℃/ Storage temperature: -20℃ to +60℃Humidity: 85% RH or less (non-condensing)
Dimensions	218(W)x 140(H)x 87(D) mm (Projections excluded)
Weight	PFA10: Approx 2.5kg　PFA7: Approx1.8kg
CE marking certification	EMC Directives EN61326-1
