ULTRA THIN COMPRESSION TYPE LOAD CELL UST

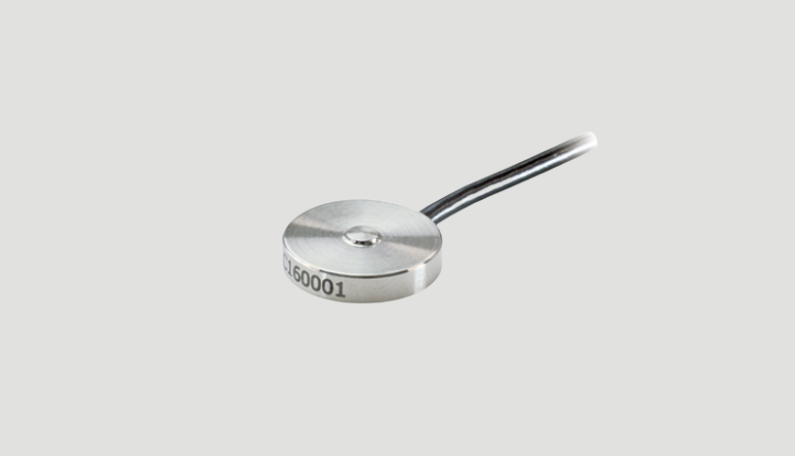

Ultra thin compression type load cell from Unipulse

Model: UST-50N, UST-100N, UST-200N, UST-500N

Technical Information

Model UST-50N UST-100N UST-200N UST-500N
Rated capacity 50N 100N 200N 500N
Rated output Approx. 1mV/V
Safe overload 150%R.C.
Zero balance ±20%R.O.
Non-linearity 0.7% or less R.O.
Hysteresis     0.7% or less R.O.
Repeatability     0.1% or less R.O.
Compensated temperature range     0 to +60℃
Safe temperature range 1%R.O/10℃ or below
Temperature effect on span 1%R.O/10℃ or below
Input resistance Approx. 350Ω
Output resistance Approx. 350Ω
Recommended excitation voltage 2.5V
Maximum excitation voltage 5V
Insulation resistance (DC50V) 1000 MΩ or more

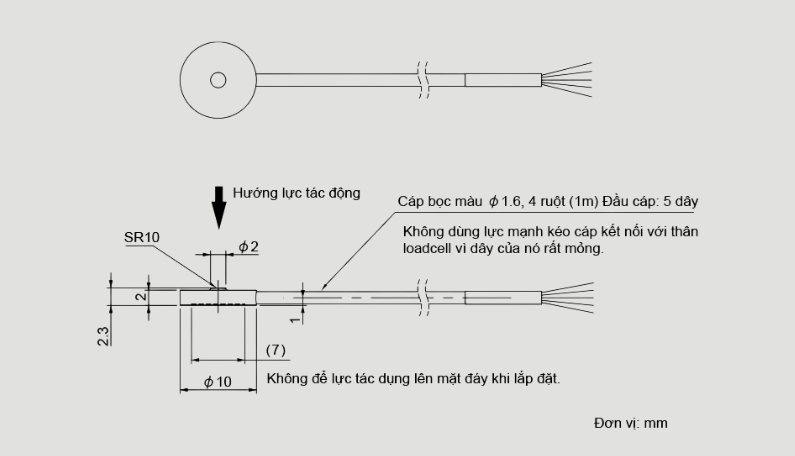

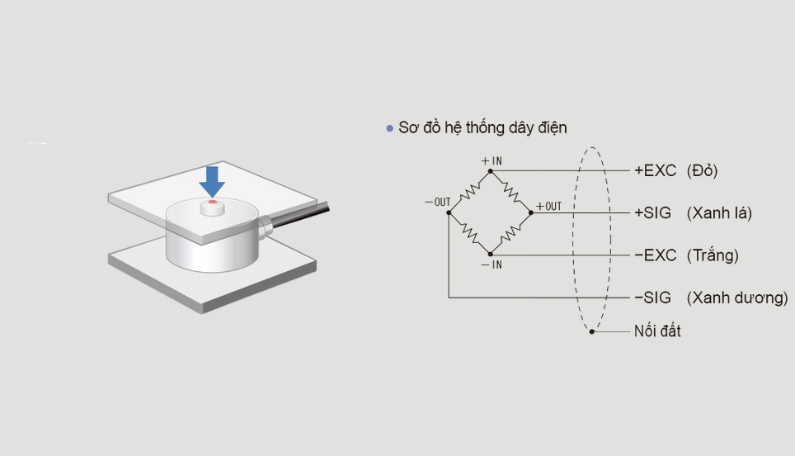

Cable φ1.6 4-conductor color shield cable (1 m) Cable end: 5 wires
Load cell material Stainless steel
Deflection at rated 0.003 mm 0.004 mm 0.004 mm 0.005 mm
Natural frequency 140kHz 160k Hz 180kHz 180kHz
Weight 2g
