ENVIRONMENT-TOLERANT LOAD CELL UNIPULSE UCC / UCC (HL)

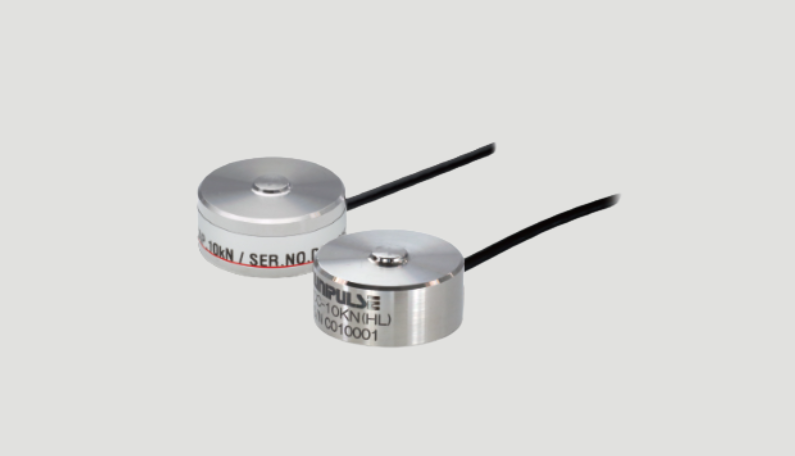

Ultra-thin compression type load cell from Unipulse Environment-tolerant

Model: UCC-10kN, UCC-20kN, UCC-10kN(HL), UCC-20kN(HL)

Technical Information

Model UCC-10kN UCC-20kN

UCC-10kN (HL)

 UCC-20kN (HL)
Rated capacity 10kN 20kN 10kN 20kN
Rated output Approx. 1mV/V
Safe overload 120%R.C.
Zero balance ±10%R.O.
Non-linearity 0.5% or less R.O.
Hysteresis     0.5% or less R.O.
Repeatability     0.2% or less R.O.
Compensated temperature range     0 to +60℃
 -40 to +150℃
Safe temperature range -10 to +60℃ -40 to +150℃
Temperature effect on zero 0.5%R.O/10℃ or below
Temperature effect on span 0.5%R.O/10℃ or below

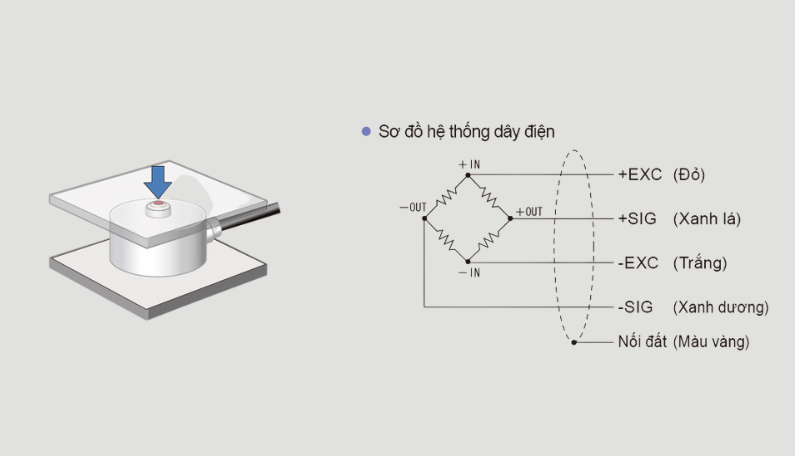

Input resistance Approx. 350Ω
Output resistance Approx. 350Ω
Recommended excitation voltage 2.5V
Maximum excitation voltage 5V
Insulation resistance (DC50V) 1000 MΩ or more

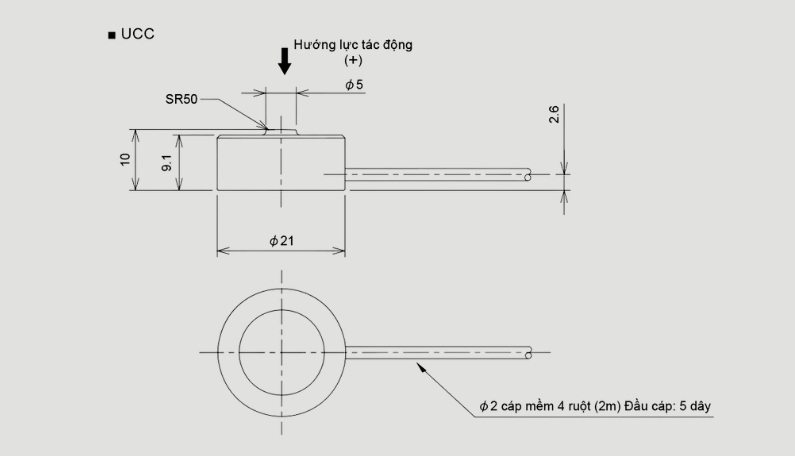

Cable φ2 4-conductor flexible cable (2m) Cable end: 5 wires
 φ2 4-conductor fluorine resin cable (3m) Cable end: 5 wires
Load cell material Stainless steel
Deflection at rated 0.030 mm 0.045 mm 0.030 mm 0.045 mm
Natural frequency 54kHz 55k Hz 54kHz 55kHz
Weight 20g
