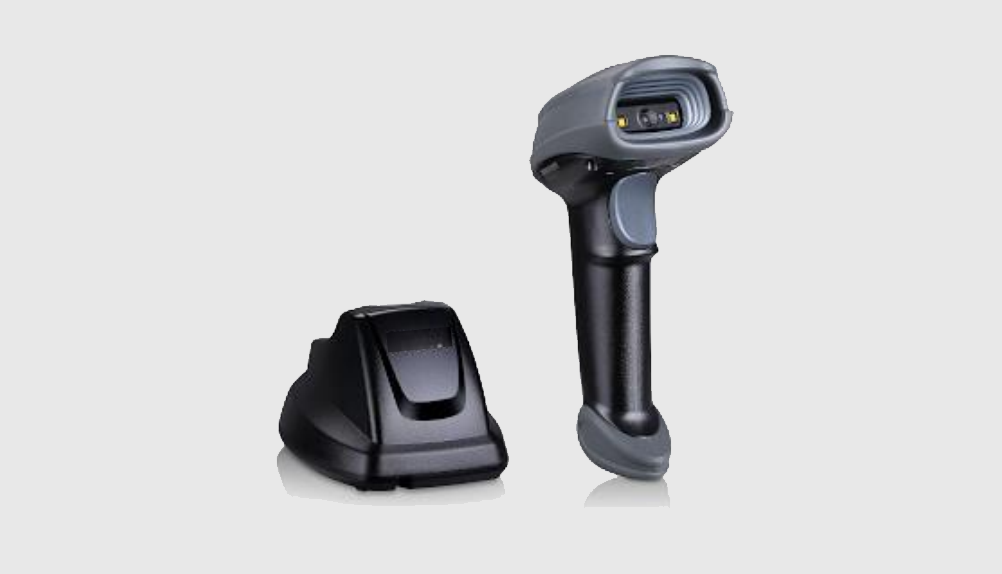

| Model | MCR-H260B | ||
| Communication Characteristics | Working Range | 30m (open air) | |
| Radio link | 2,4-2,5 GHz Bluetooth 4.0, Class2 | ||
| Mechanical Charanteristics | Dimensions |
Reader unit: 90.2(L) x 70(W) x 180(H) mm Cradle: 118 x 89,5 x 74 mm |
|
| Weight | Reader unit: 225g / Cradle: 140g | ||
| Signal | LED, Buzzer | ||
| Interface | USB HID, USB COM, RS232C, PS/2 | ||
| Performance Characteristics | Image size | 1280 x 800 pixel | |
| Field of View | Horizontal: 42 °, Vertical: 26,5 ° | ||
| Scanning Angle | ± 70 °, ± 75 °, ± 360 ° (Skew, Pitch, Roll) | ||
| Print contrast | Print Contrast 20% minimum reflectance difference | ||
| Decoding Capability |
1D: UPCA/UPC E, EAN 8/EAN 13, ISBN,ISSN, |
||
| Minimum resolution | HD: 1D (Code39): 0,076mm, 2D (QR): 0,127mm SR: 1D (Code39): 0,10mm, 2D (QR): 0,17mm |
||
| Reading Distance | High density(HD) | Standard range(SR) | |
| 0.076mm Code39 (3chars) | 10mm - 61mm | / | |
| 0.10mm Code128(9 chars) | 5mm - 88mm | 55mm - 106mm | |
| 0.33mm UPC(6 chars) | 0mm - 179mm | 0 mm - 335mm | |
| 0.50mm Code39(1 chars) | 10mm - 253mm | 8 mm - 480mm | |
| 0.127mm QR(40 chars) | 7mm - 65mm | / | |
| 0.17mm PDF417(20 chars) | 0mm - 105mm | 37mm - 145mm | |
| 0.25mm QR(20chars) | 0mm - 134mm | 0 mm - 168mm | |
| 0.50mm QR(20chars) | 0mm - 215mm | 0 mm - 345mm | |
| Electrical Characteristics | Input voltage | DC5V ± 0,25V | |
| Current | Reader unit: 75mA(standby), 600mA(working) | ||
| Standby current | Cradle: 60mA(standby), 500mA(charging,max) | ||
| Battery | 2600 mAh Lithium ion battery |
||
| Charge time | 6 hours | ||
| Standby time | 60 hours | ||
| Operating time | 20 hours (1scan per 5seconds) | ||
| Environmental Characteristics | Operating temperature | 0 ~ 50 ℃ | |
| Storage temperature | - 40 ~ 60 ℃ | ||
| Humidity | 5% ~ 95%RH (Non condensing) |
||
| Drop Durability | 1.5 m (5 ft.) drops to concrete | ||
| Protection level | IP51 | ||
| Ambient light | 0-100.000 lux | ||
