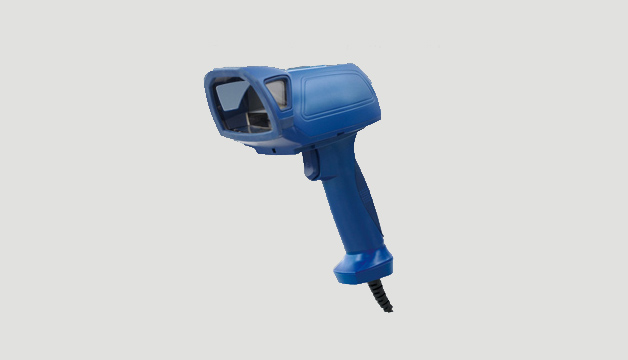

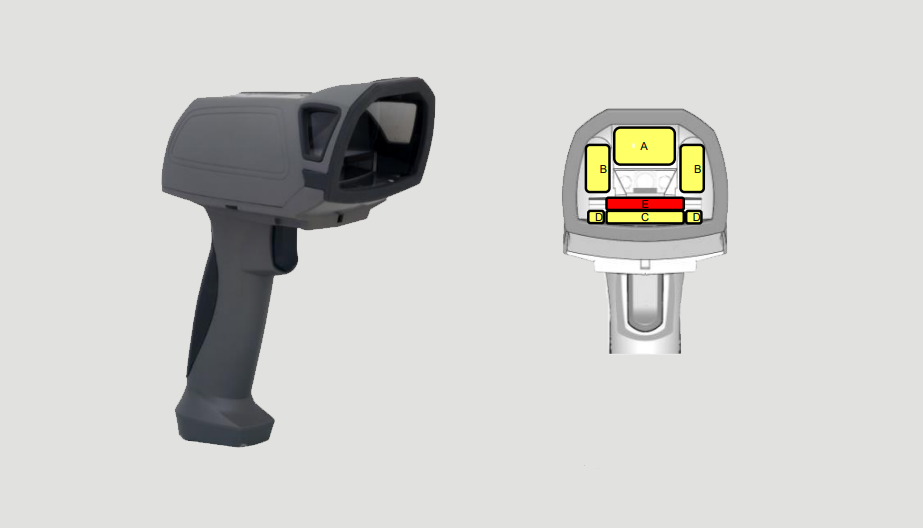

HANDHELD CODE SCANNER 1D & 2D MARS TOHKEN | MCR-H700, MCR-H710 SERIES

Model: MCR-H700R, MCR-H700U, MCR-H700B, MCR-H710R, MCR-H710U, MCR-H710B, MCR-H711B.

Support the seamless operation by high performance reading from Mars Tohken Solution.

Technical Information

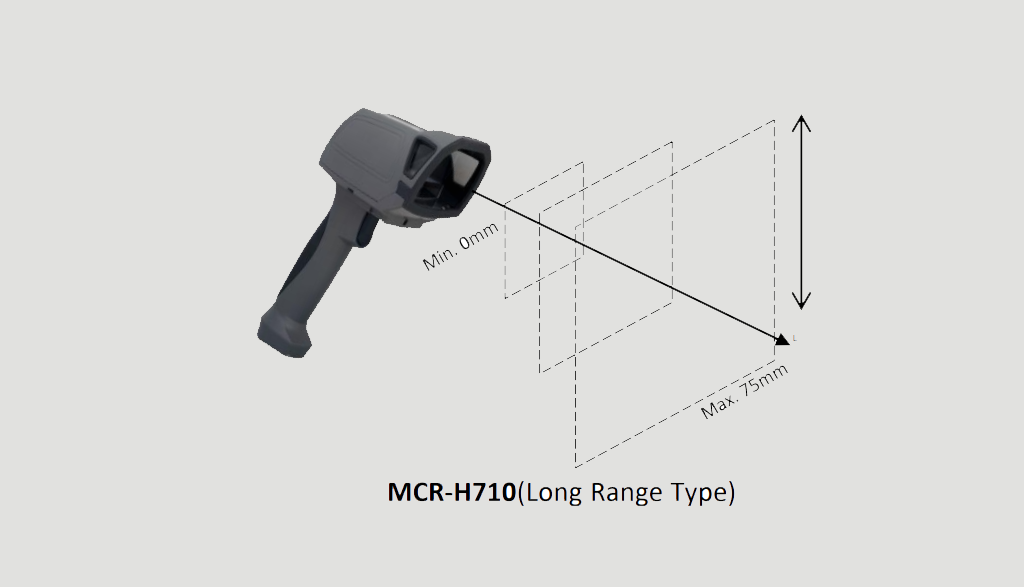

Model MCR-H700 (Shorrt rage) MCR-H710 (Long range)
Interface RS-232C, USB, Bluetooth
Supported barcodes (2D) DataMatrix (ECC200), PDF417, MaxiCode, Mã QR, MicroQR, MicroPDF, GS1 Data bar Composite, Vericode (optional)
Supported barcodes (1D) JAN / EAN / UPC, ITF, Codabar, Code39, Code93, Code128, EAN128, GS1 Data Bar, Customer barcodes (optional)
Minimum resolution 0.08mm (3.15mil) 1D: 0.125mm (5.92mil)
2D : 0.167mm (6.57mil)
Power and power consumption DC5.0V+/-5%, 400mA @ 5.0V
Operating temp./humidity 0 to 40C / 35 to 85%RH(non-condensing)
Storage temp./humidity -20 to 65C/35 to 85%RH(non-condensing)
Drop specification Multiple drops from 1.5m to concrete(no reduction in reading performance)
Dimensions 80(W) x 199(H) x 142(D)mm
Weight 315g*without cable)
