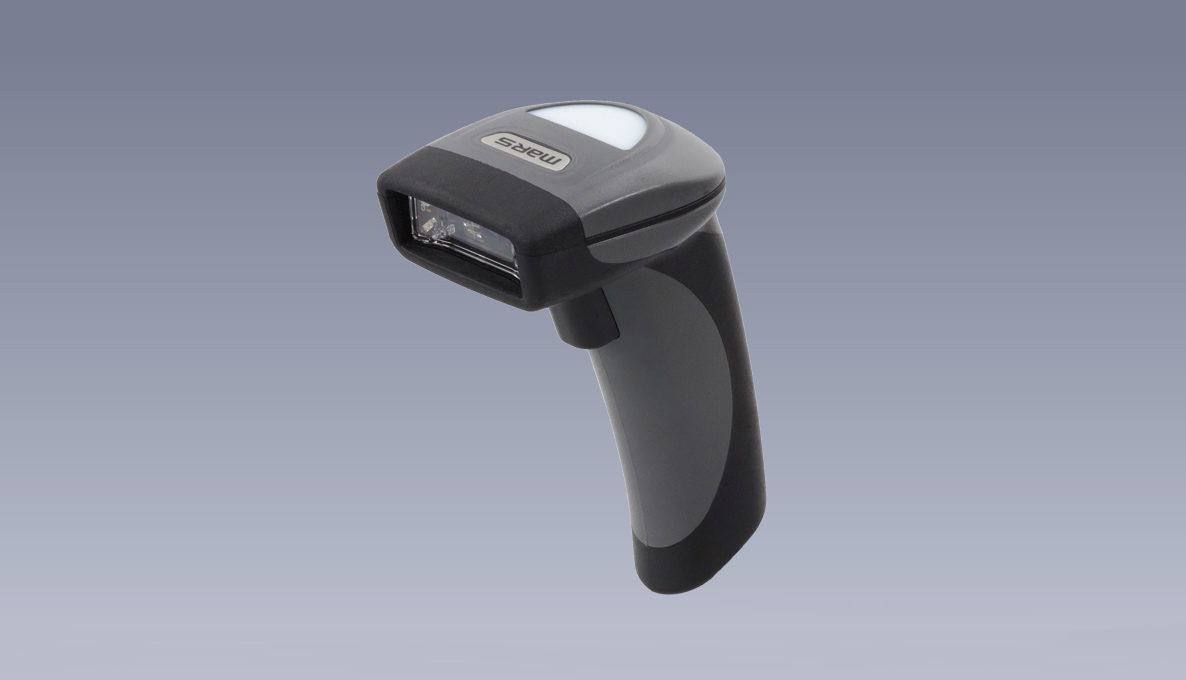

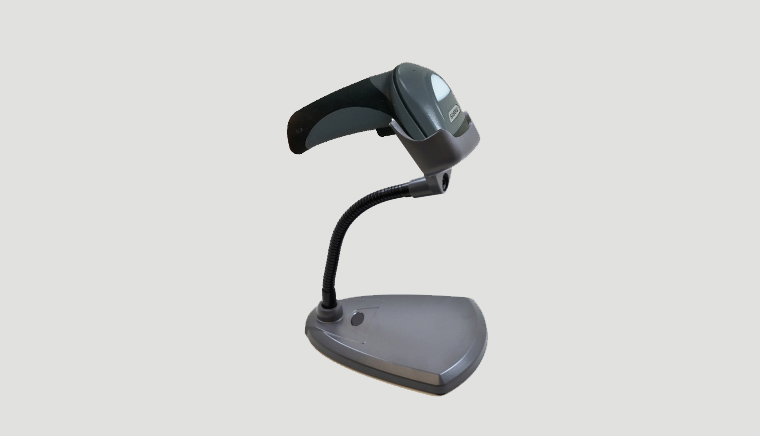

HANDHELD CODE SCANNER 1D & 2D MARS TOHKEN | MCR-H200 SERIES

Model: MCR-H200U, MCR-H200R, MCR-H200U-ESD, MCR-H200R-ESD

1D & 2D General purpose Handheld Barcode Scanner from Mars Tohken Solution.

Technical Information

Model MCR-H200U(-ESD), MCR-H200R(-ESD)
Interface RS-232C, USB 2.0
Supported barcodes (2D) DataMatrix(ECC200), PDF417, MaxiCode, QR Code, MicroQR, MicroPDF, GS1 Data Bar Composite,
Supported barcodes (1D) JAN/EAN/UPC, ITF, Codabar, Code11, Code39, Code93, Code128, EAN128, GS1 Data Bar, Pharmacode
Minimum resolution 1D: 0,075mm, 2D: 0,125mm
Power supply DC5.0V+/-5%
Power consumption 350mA @5.0V
Operating temp./humidity -20 to 55C / 5 to 85%RH (non-condensing)
Storage temp. /humidity -30 to 65 C / 5 to 85%RH (non-condensing)
Protection level IP54
Drop specification Multiple drops from 2m to concrete (no reduction in reading performance)
Dimensions 52(W) x 132(H) x 77(D)mm
Weight 116g
