COMPACT COMPRESSION TYPE LOAD CELL UNIPULSE UNLRS

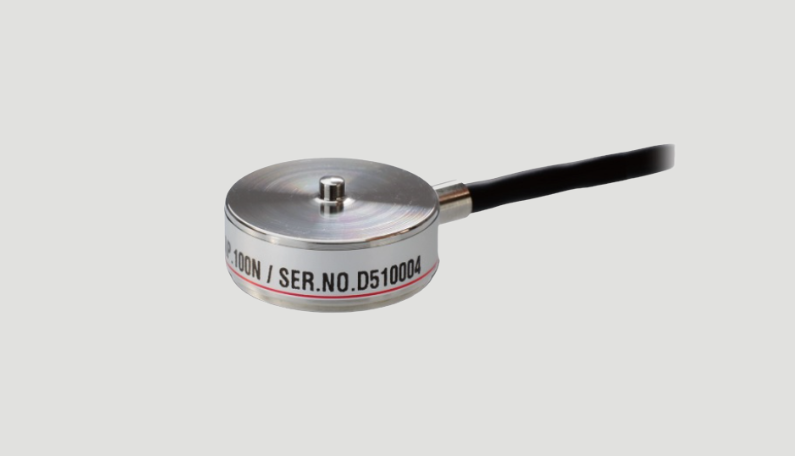

Compact compression type loadcell from Unipulse

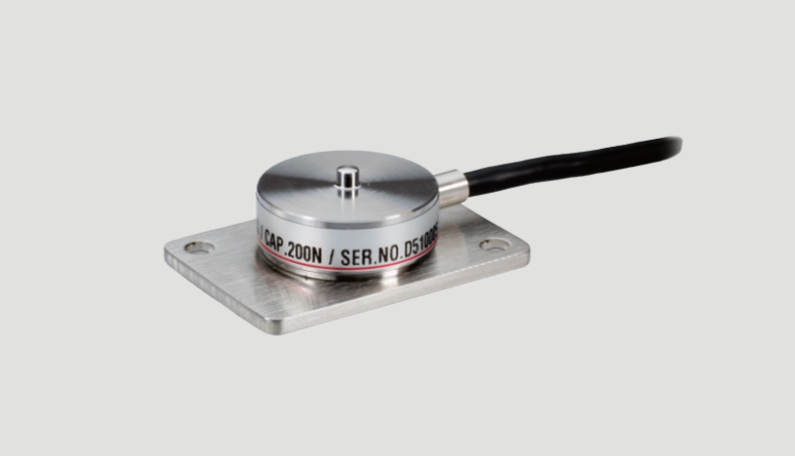

Model: UNLRS-100N, UNLRS-100N-FG, UNLRS-200N, UNLRS-200N-FG

Technical Information

Model UNLRS-100N UNLRS-100N-FG UNLRS-200N UNLRS-200N-FG Unit
Rated capacity (R.C.) 100 200 N
Rated output (R.O.) 1±20%
 mV/V
Safe overload 150
 %R.C.
Safe overload ±20 %R.O.
Non-linearity 0.3 %R.O.
Hysteresis 0.3 %R.O.
Repeatability 0.1 %R.O.
Compensated temperature range 0 to +60
 ℃
Safe temperature range -10 to +60 ℃
Temperature effect on zero 2.0 %R.O./10℃
Temperature effect on span 1.0 %R.O./10℃
Input resistance Approx. 350 Ω
Output resistance Approx. 350 Ω
Recommended excitation voltage 2.5 V
Maximum excitation voltage 6 V
Insulation resistance(DC50V) 1000 or more MΩ
Cable

φ3 4-conductor color shield cable.

Length 3m.
End treatment 5-leads.


Cable color code ＋EXC：Red
＋SIG：Green
－EXC：White
－SIG:Black
SHIELD:Yellow
Loadcell material Stainless steel
Deflection at rated 0.015 mm
Natural frequency 21 25 kHz
Weight 5 18 5 18 g
