COMPRESSION LOADCELL UNIPULSE UBFH

Suitable for measurement of axial bolt force, press-fitting, and caulking.

Model : UBFH-1KN, UBFH-2KN, UBFH-5KN

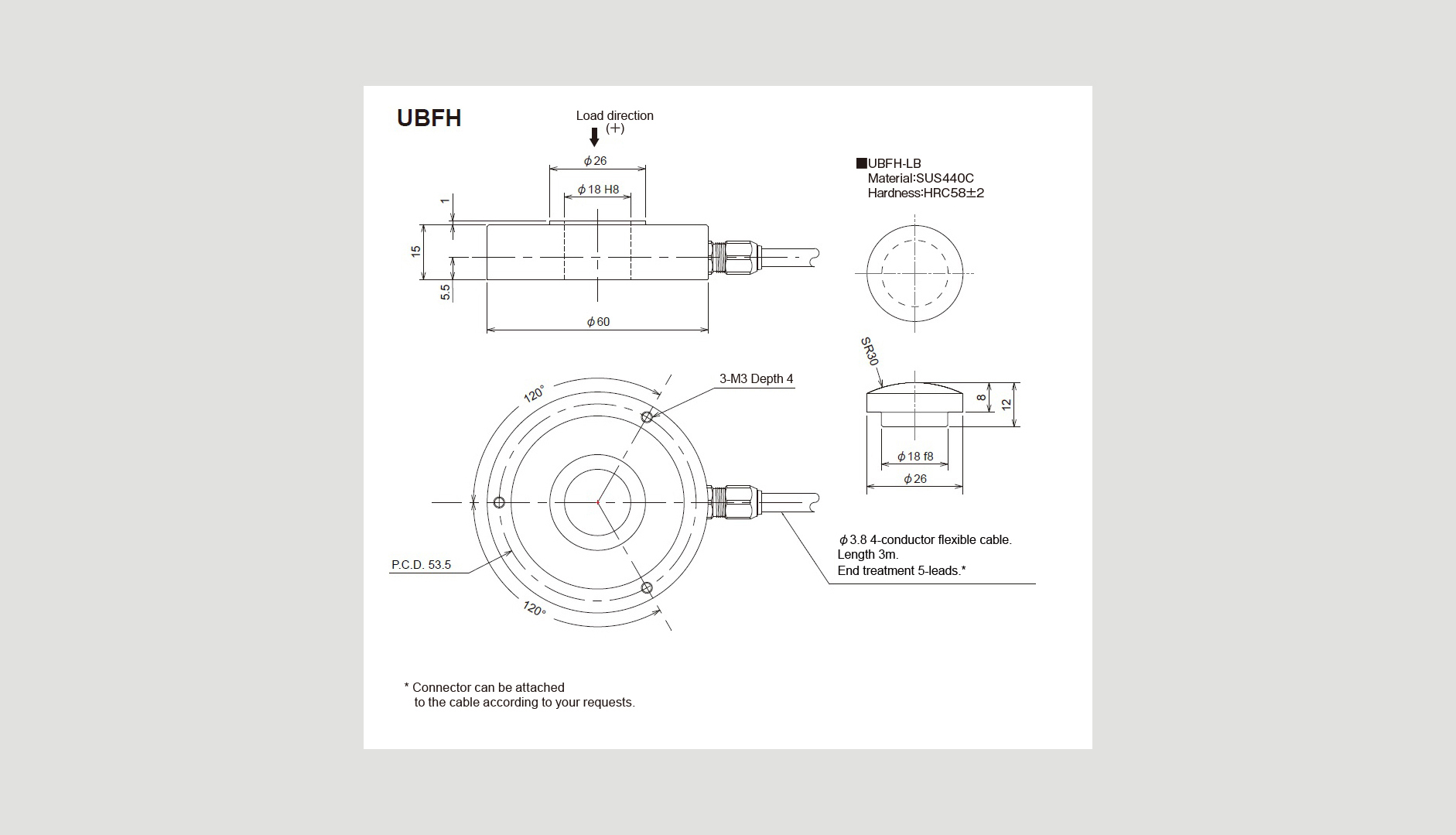

Model	UBFH-1KN	UBFH-2KN	UBFH-5KN	UBFH-10KN	UBFH-20KN
Rated capacity	1	2	5	10	20	kN
Rated output	1±15%			1±25%		mV/V
Safe overload	150					%R.C.
Zero balance	±10					%R.O.
Non-linearity	0.1		0.2	0.5		%R.O.
Hysteresis	0.2			0.5		%R.O.
Repeatability	0.1			0.3		%R.O.
Compensated temperature range	-10 to +60					℃
Safe temperature range	-10 to +70					℃
Temperature effect on zero	0.3					%R.O./10℃
Temperature effect on span	0.2					%R.O./10℃
Input resistance	Approx.1000					Ω
Output resistance	Approx.1000					Ω
Recommended excitation voltage	10					V(AC,DC)
Maximum excitation voltage	15					V(AC,DC)
Insulation resistance	1000 or more					MΩ
Cable	φ3.8mm 4-conductor flexible cable (3m)
Cable color code	＋EXC：Red＋SIG：Green－EXC：Black－SIG：WhiteSHIELD：Yellow
Deflection at rated	0.030			0.035		mm
Natural frequency	5.0	7.3	11	9.7	13	kHz
Loadcell material	Stainless steel
Weight	Approx.280			Approx.470		g
