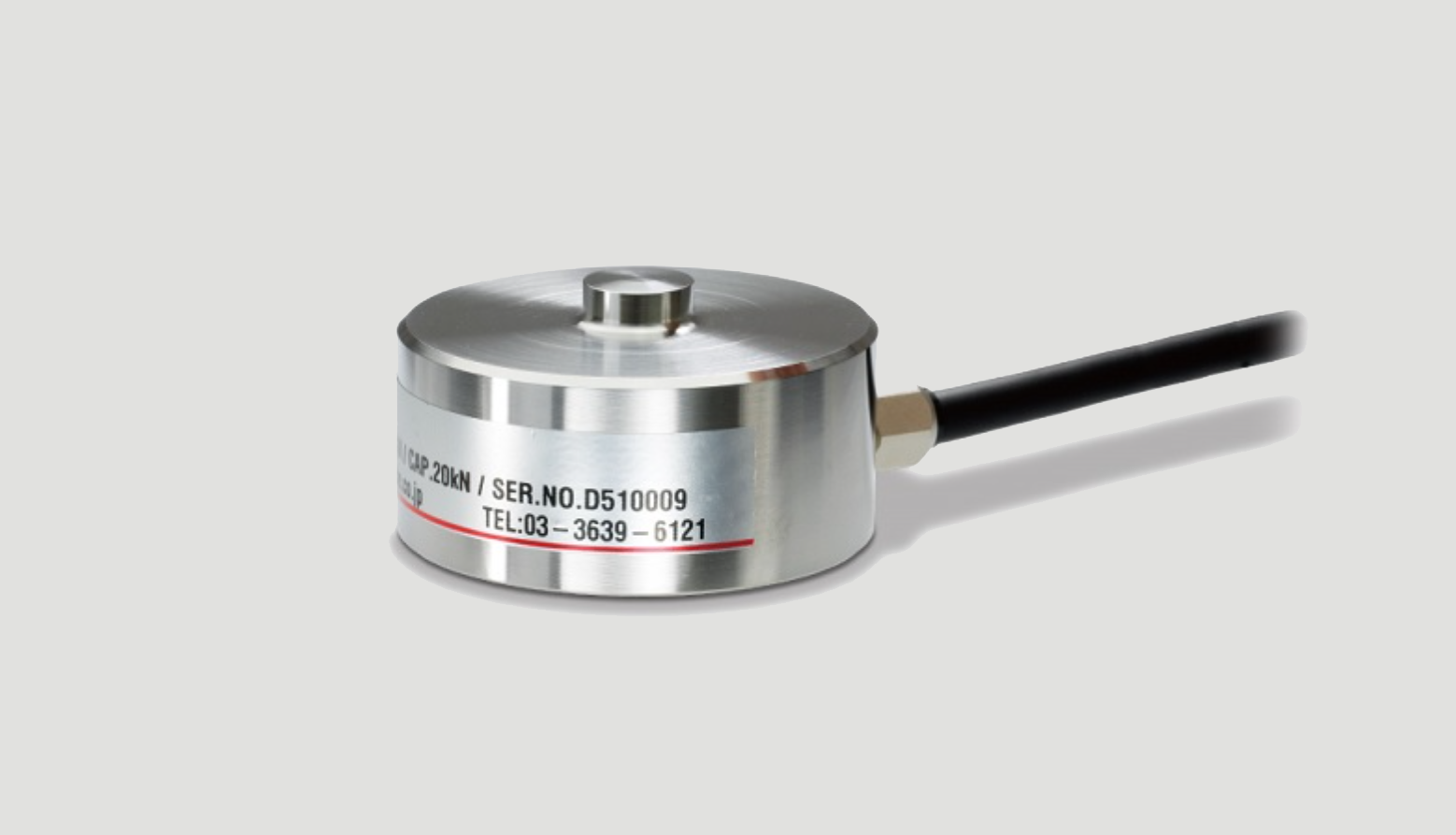

| Model | UNGS-1KN, UNGS-2KN, UNGS-5KN, UNGS-10KN, UNGS-20KN | |
| Rated capacity | 1k, 2k, 5k, 10k, 20k | N |
|---|---|---|
| Rated output | 2±1% | mV/V |
| Safe overload | 150 | %R.C. |
| Zero balance | ±5 | %R.O. |
| Non-linearity | 0.15 | %R.O. |
| Hysteresis | 0.1 | %R.O. |
| Repeatability | 0.1 | %R.O. |
| Compensated temperature range | -10 to +60 | ℃ |
| Safe temperature range | -20 to +80 | ℃ |
| Temperature effect on zero | 0.1 | %R.O./10℃ |
| Temperature effect on span | 0.1 | %R.O./10℃ |
| Input resistance | Approx.400 | Ω |
| Output resistance | Approx.350 | Ω |
| Recommended excitation voltage | 10 | V |
| Maximum excitation voltage | 20 | V |
| Insulation resistance (DC50V) | 2000 or more | MΩ |
| Cable | φ6 4-conductor color shield cable. Length 3m.End treatment 5-leads. | |
| Cable color code | ＋EXC: Red＋SIG: White－EXC: Blue－SIG: BlackSHIELD | |
| Loadcell material | Stainless steel | |
| Deflection at rated | 1KN：0.0402KN：0.0455KN：0.04010KN：0.04520KN：0.050 | mm |
| Natural frequency | 1KN：62KN：85KN：1310KN：1620KN：23 | kHz |
| Weight | 1KN：0.32KN：0.35KN：0.310KN：0.320KN：0.35 | kg |
