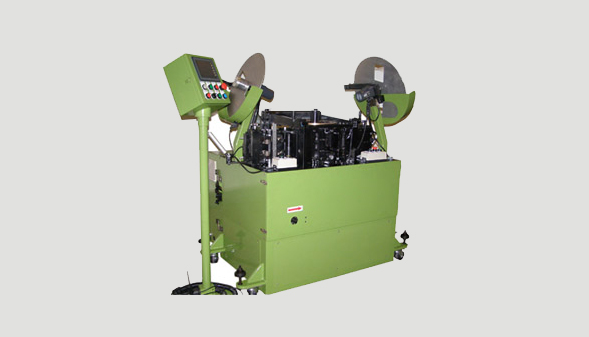

CS-11C STATOR SLOT CELL INSERTER GMW CS-11C

MODEL: GMWCS-11C

Technical Information

The only thing operator has to do is to load and unload the stator on the core nest and depress button to start inserting. Then, the operation of inserting cell is finished.
This machine has a robust construction and has been compactly designed, it can extend the limit of machine and be easy to arrange to production line.

STATOR OUTSIDE DIA MAX：180mm
STATOR STACK HEIGHT 20-105mm
NUMBER OF SLOTS 8-48 Slots
INSULATION FILM THICKNESS 0.19-0.4mm
INSERTING SPEED 0.4 Slot/Second.60/50HZ
POWER SUPPLY 3Ø.220/380V.50/60HZ
MOTOR 1 HP AC Motor
DIMENSION 1200(L) * 200(W) * 1700(H) cm
WEIGHT 1250Kgs
