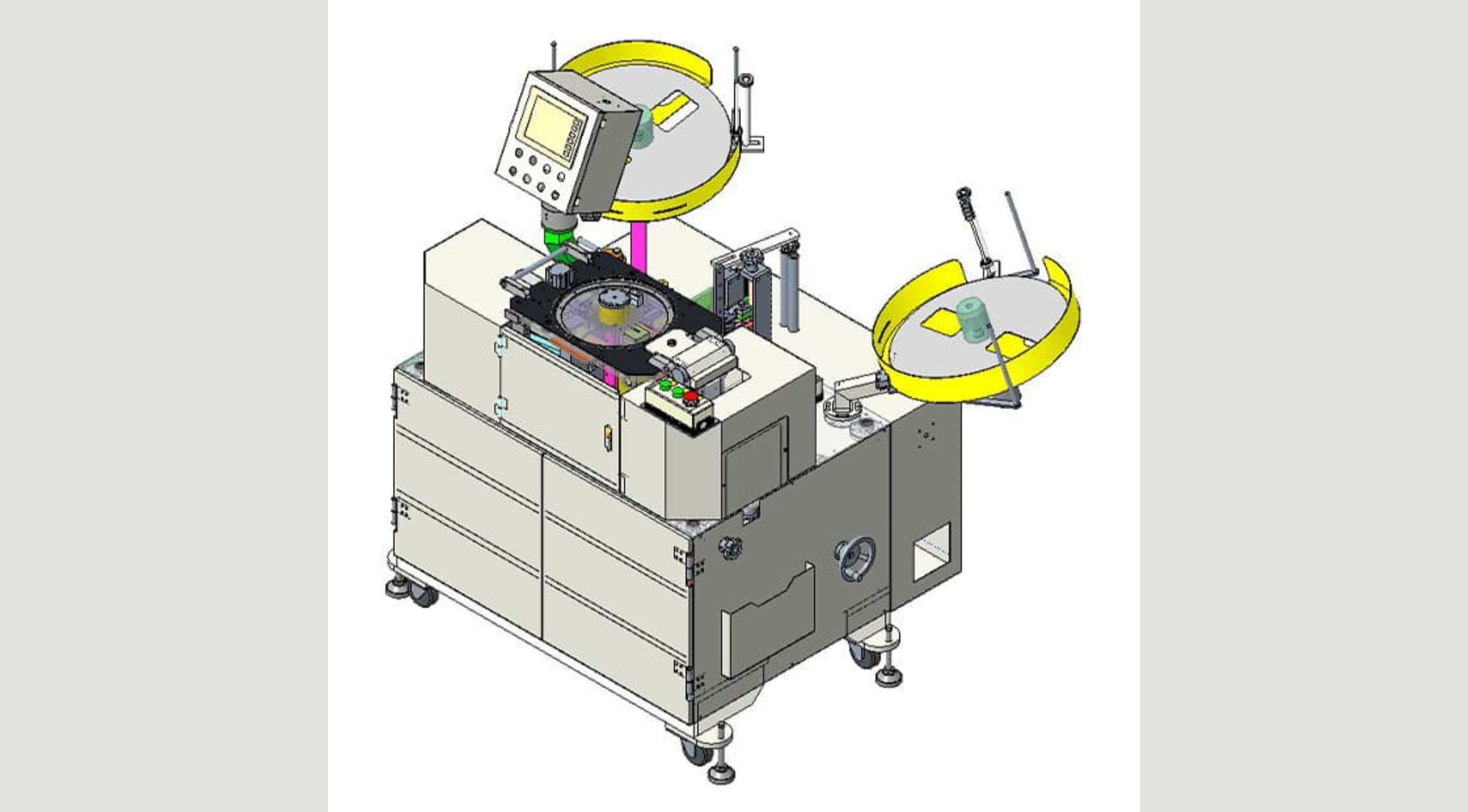

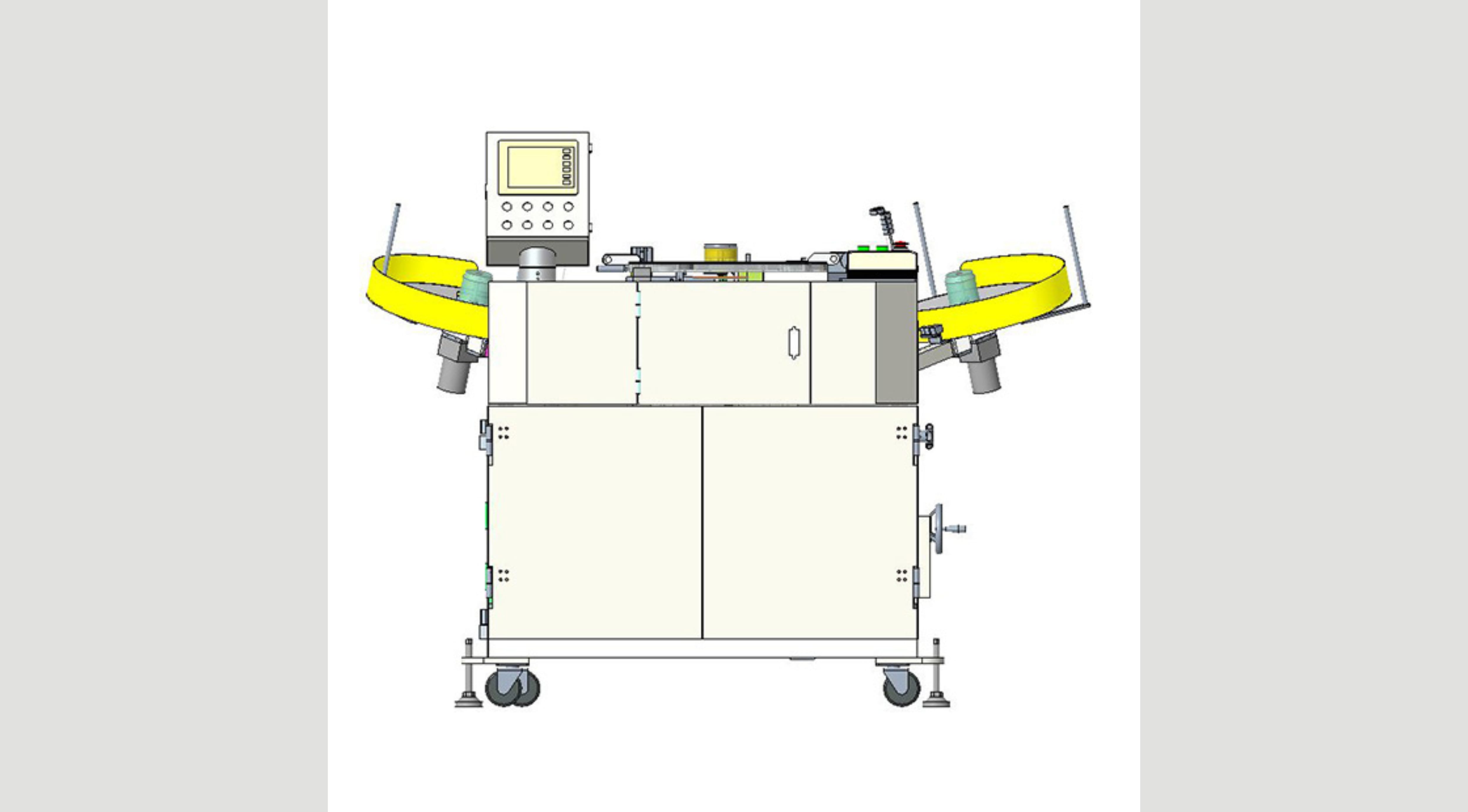

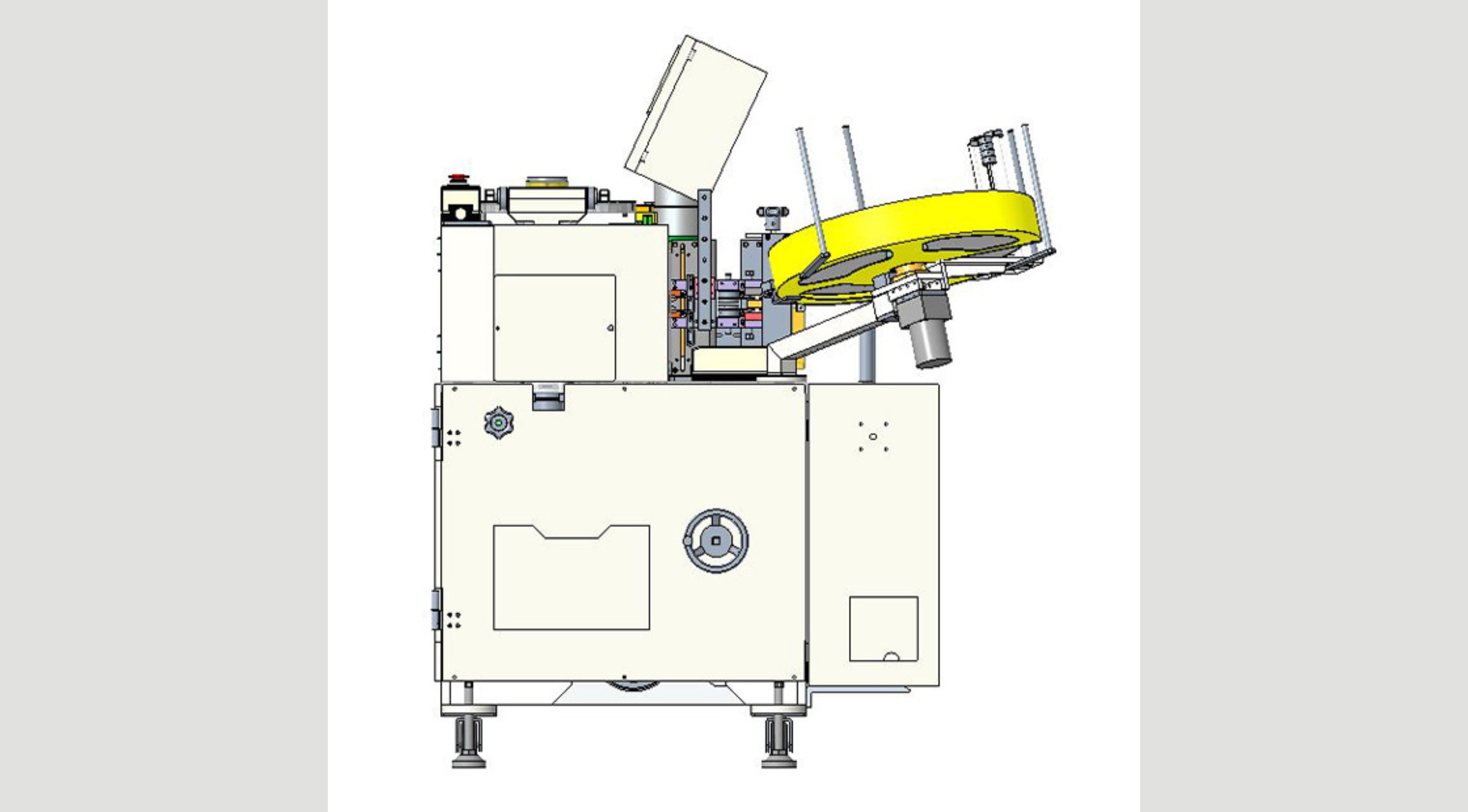

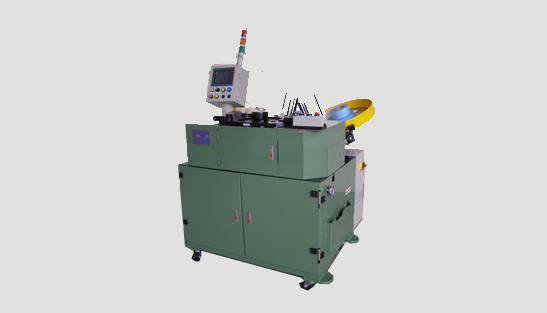

This machine feeds insulation paper from the reel, folds & cuts it to a preset length, forms it to suit the shape of stator slot, inserts it into the slot and then indexes the stator to next slots. It repeats the above actions in a cycle until all slots are insulated.
The only thing the operator has to do is to load and unload the stator on the core nest and press button to start inserting. Then, the operation of the inserting cell finishes. Variety or combination of slot shapes could be insulated by unique tooling system as well.
This machine has a robust construction and has been designed compactly, it can extend the reliability of machine and be easy to arrange to the production line.
| STATOR OUTSIDE DIA | 250 mm Max. |
| STATOR STACK HEIGHT | 50 - 160 mm |
| NUMBER OF SLOTS |
8~48Slots(by mechanism)
|
| INSULATION FILM THICKNESS | 0.188 ~ 0.4mm |
| CUFF WIDTH | 2.0 ~ 6.0mm |
| INSERTING SPEED |
0.5 ~ 0.75 Sec./Slot
|
| PAPER FEEDING |
750W AC SERVO MOTOR
|
| CUTTER MOVEMENT |
750W AC SERVO MOTOR
|
| POWER SUPPLY |
AC 220V/380V/415 ,3 PHASE, 50/60HZ
|
| DRIVER MOTOR |
2HP AC MOTOR c/w 1/15 REDUCER & 3HP INVERTER
|
| CONTROL |
PLC c/w COLORFUL TOUCH PANEL
|
| DIMENSION |
133(L)*80(W)*110(H)cm
|
| WEIGHT | 950Kgs |
