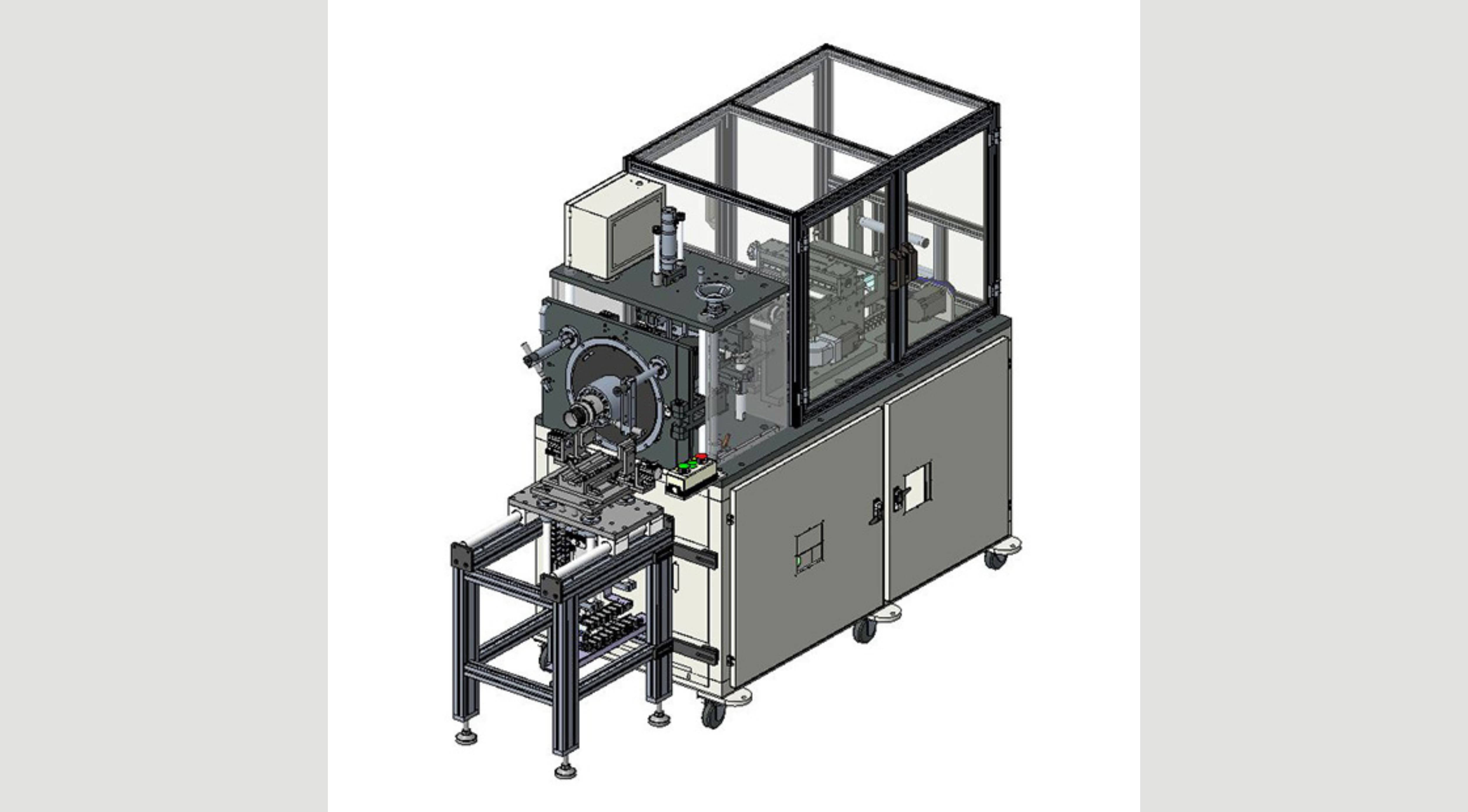

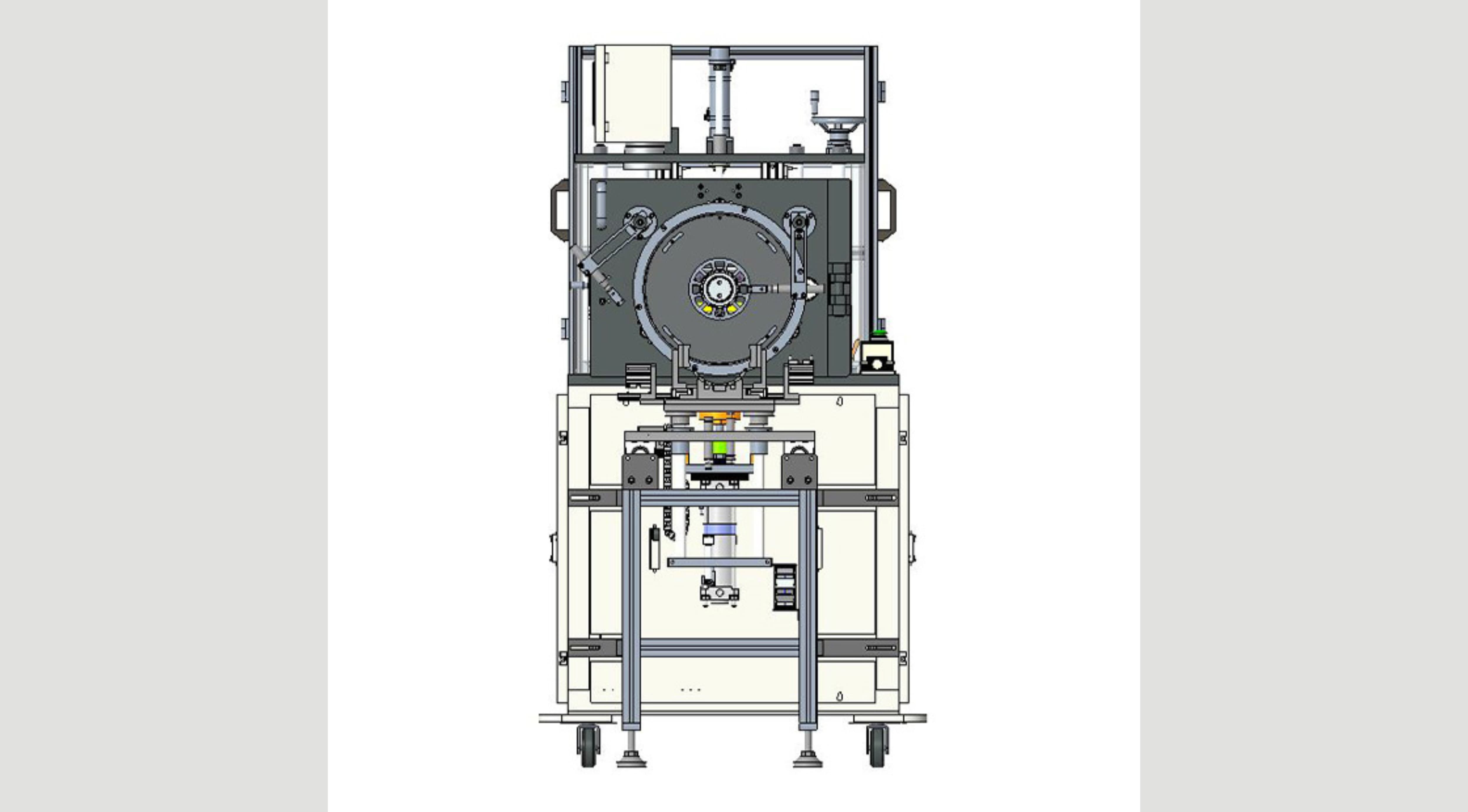

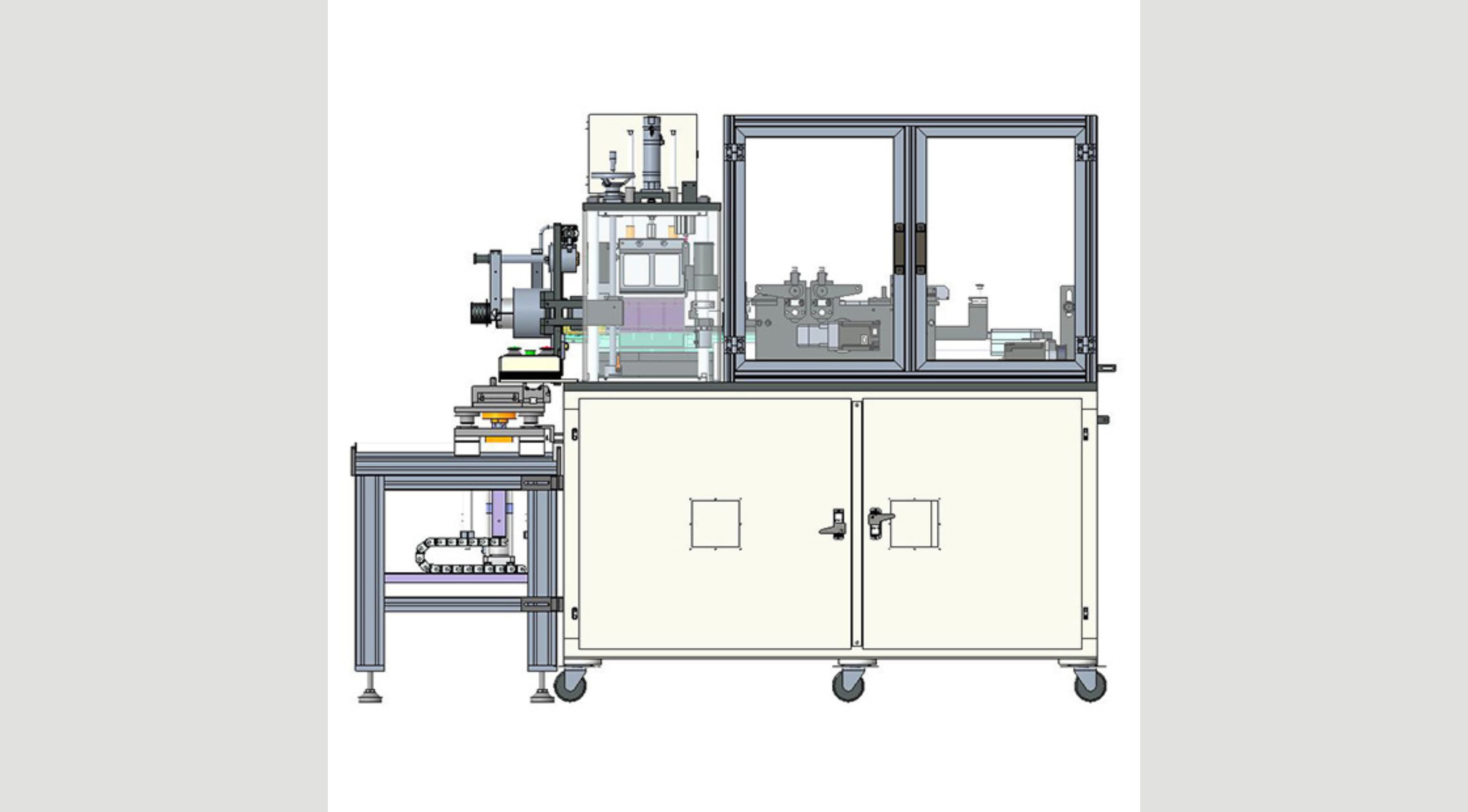

Horizontal slot cell inserter gmw cs-7e

HORIZONTAL SLOT CELL INSERTER GMW CS-7E

MODEL: GMW CS-7E

Stator ID/OD Range (mm):
- ID : 20-160
- Maximum OD ≦ 200
Stator Core Length Range (mm): 10-100
Cycle Time (sec/slot): < 6
Driven System: Servo Motor
Precise Servo Control
Auxiliary Stator Lifting Fixture ensures efficient and safe handling of the material
Quick Tool Change Design allows for smooth and easy transition between different insertion applications
Auto Edge Cut Mechanism ensures a clean and professional finish
Application: Water pump motor, compressor motor, industrial motor

This innovative technology facilitates the insertion of cells into horizontal slots in various materials, including paper, cardboard, and plastic.

Stator OD/ID Limit (mm)	ID : 20-160 Maximum OD ≦ 200
Stator Core Length Limit (mm)	10-100
Stator slots	Maximum 12 slots
Slot paper thickness (mm)	0.125-0.350
Cycle Time (sec/slot)	<6
Floor Area (WLH) (cm)	80210165(cm)
Machine Weight (Kg)	1100
Main Operation Power Source (KW)	1
Pneumatic Source (Kg/cm²)	4~7
Use voltage	Can be customized according to the voltage used in each country
