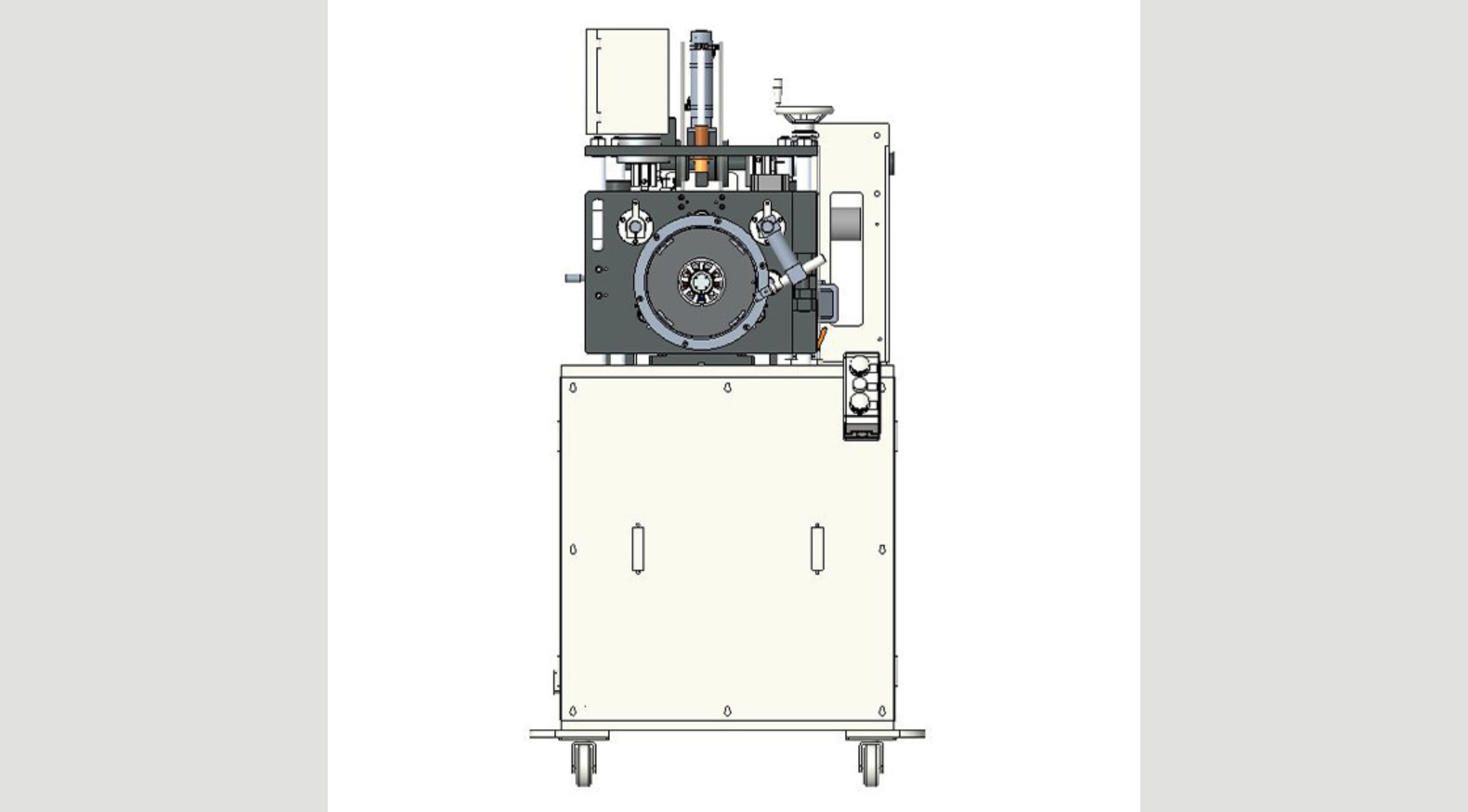

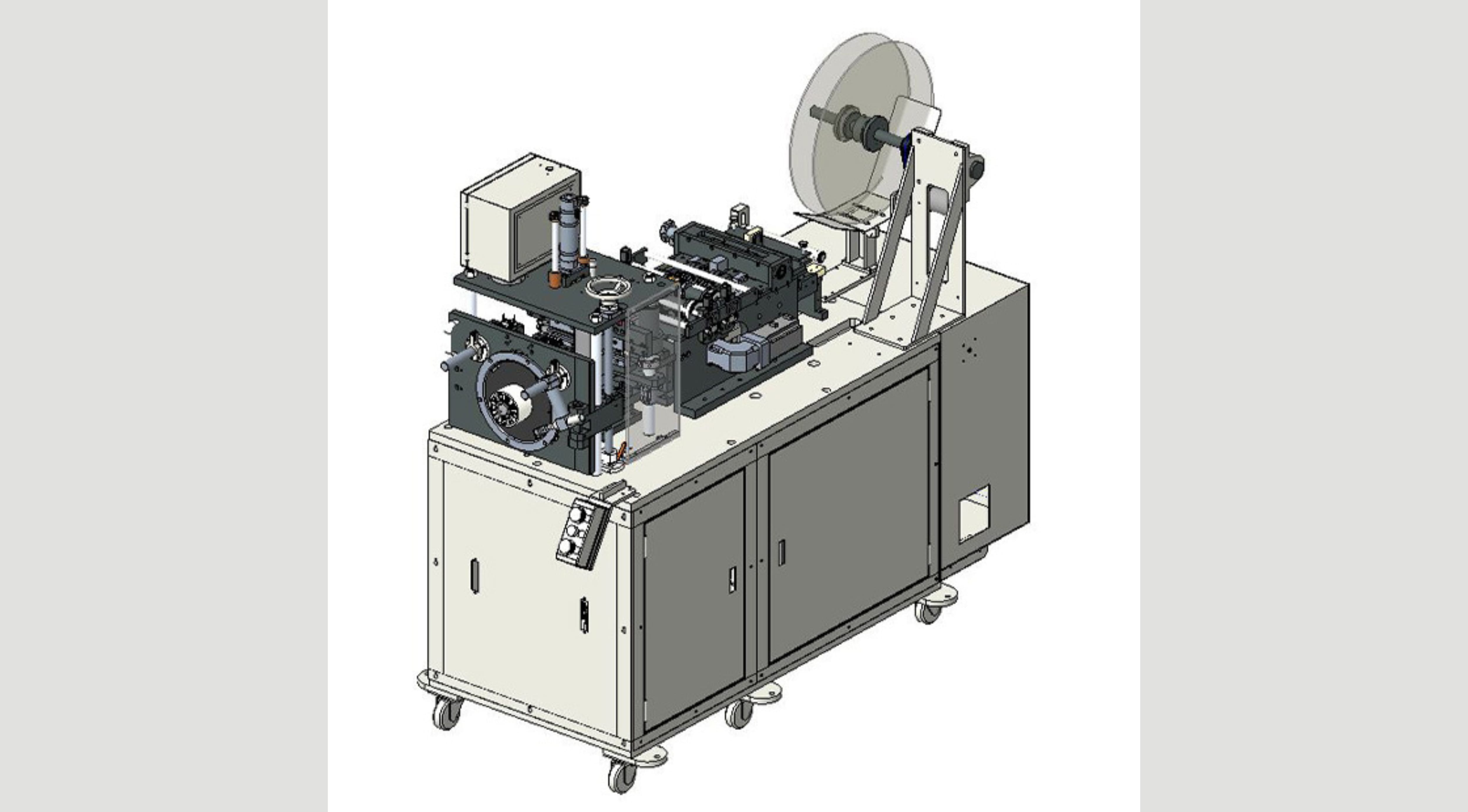

This machine feeds insulation paper from the reel, folds and cuts it to a preset length forms it to suit the shape of the rotor slot, inserts it into the slot, and indexes the rotor to the next slots. This machine repeats the above actions in a cycle until all slots are insulated.
The only thing the operator has to do is to load and unload the rotor on the core nest and depress the button to start inserting. Then, the operation of inserting cell is finished.
This machine has a robust construction and has been designed compactly, it can extend the limit of the machine and be easy to arrange to the production line.
| Specifications | GMW CS-5E |
| Stator OD/ID Limit (mm) | ID : 30-90 Maximum OD ≦ 120 |
| Stator Core Length Limit (mm) | 20-100 |
| Stator slots | Maximum 12 slots |
| Slot paper thickness (mm) | 0.125-0.250 |
| Cycle Time (sec/slot) | < 6 |
| Floor Area (W*L*H) (cm) | 83*181*165(cm) |
| Machine Weight (Kg) | 850 |
| Main Operation Power Source (KW) | 1 |
| Pneumatic Source (Kg/cm²) | 4~7 |
| Use voltage | Can be customized according to the voltage used in each country |
