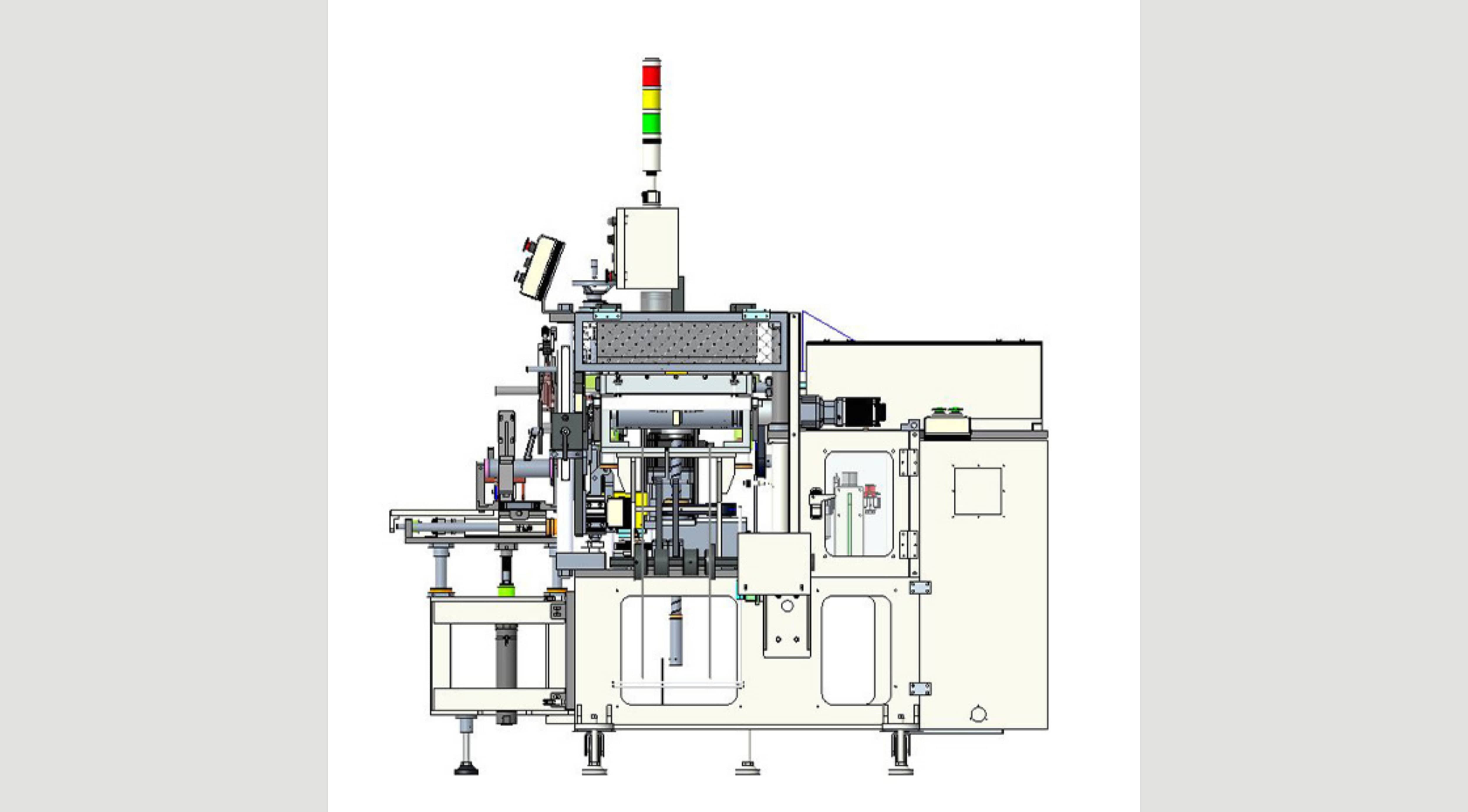

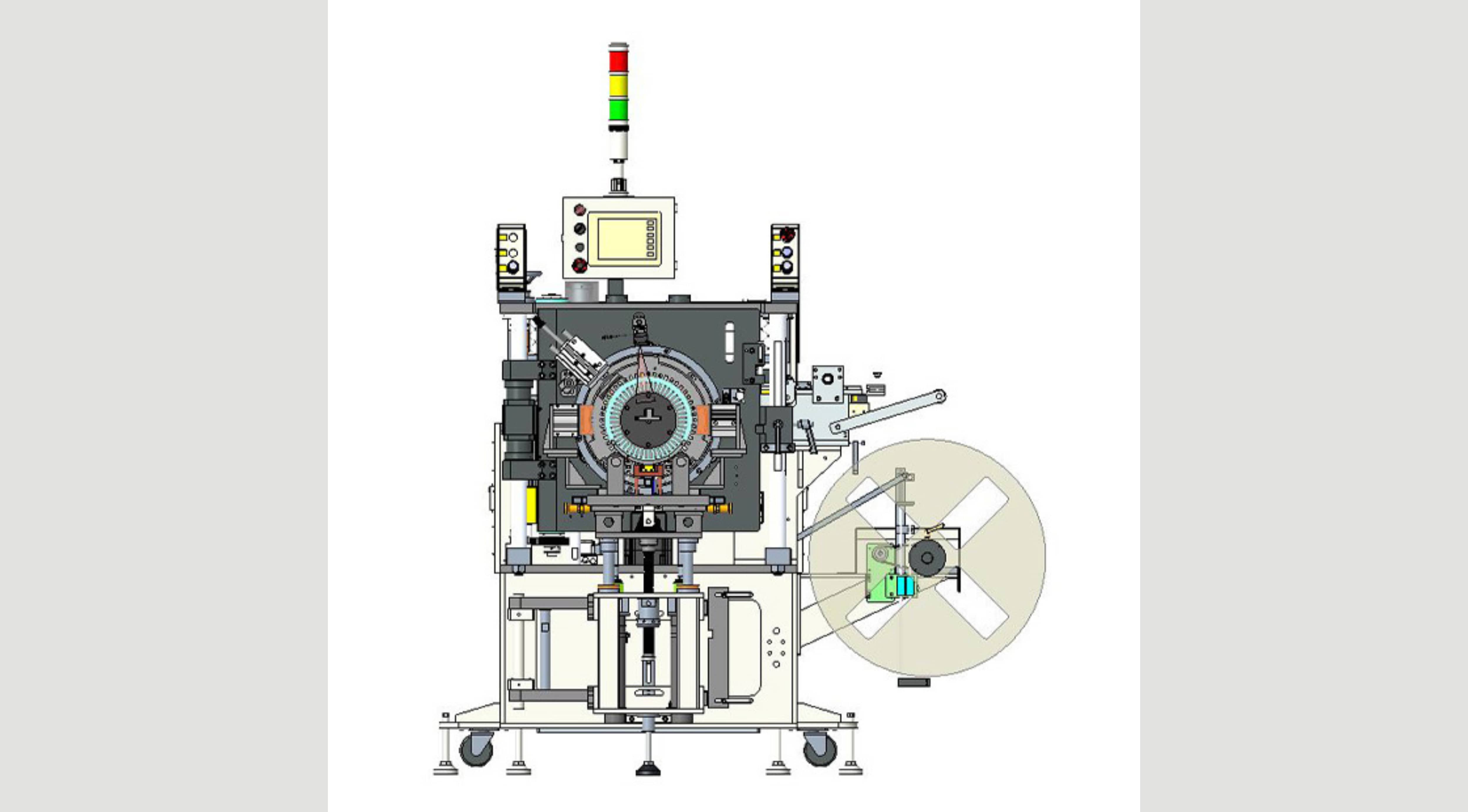

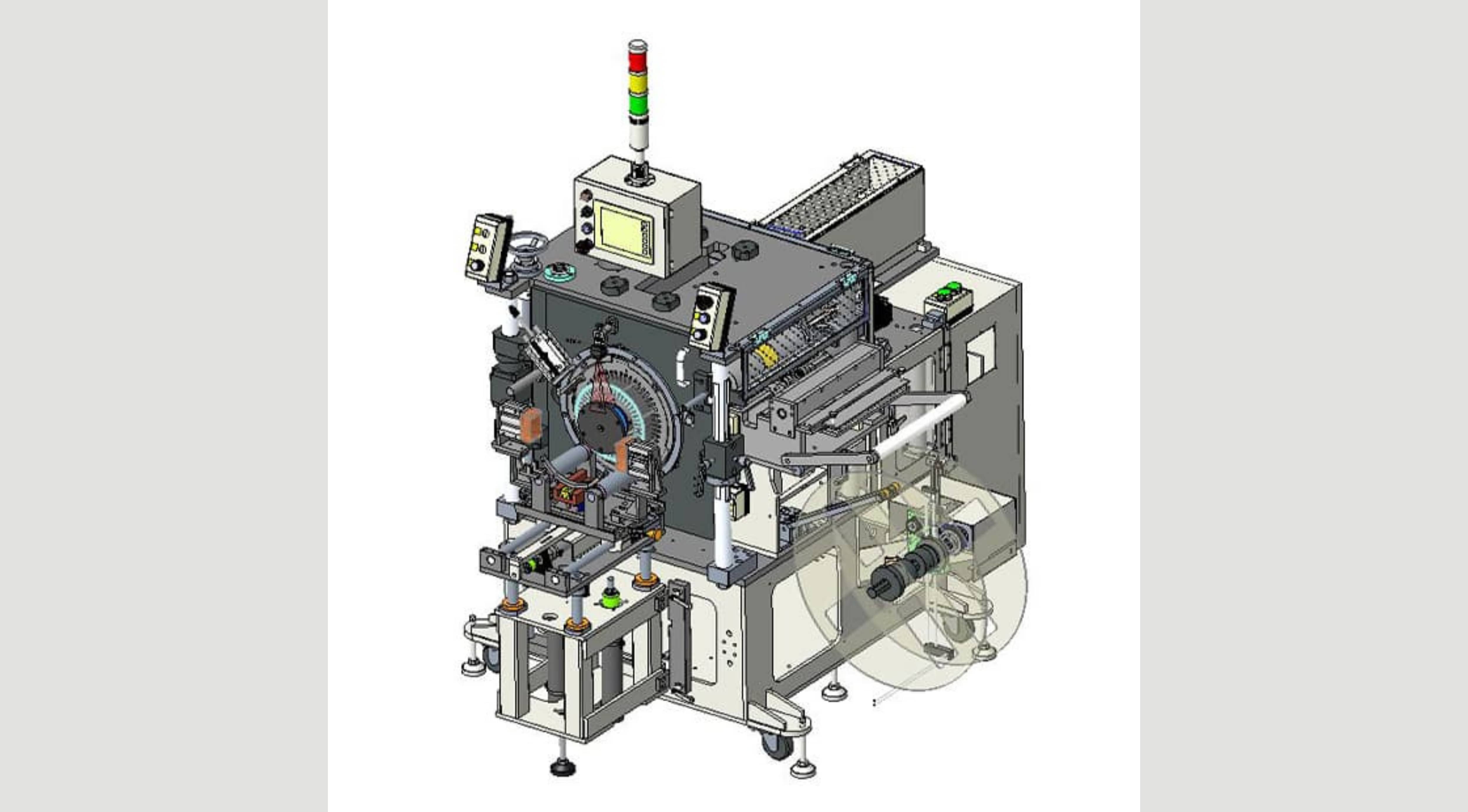

Introducing our Large Stator Horizontal Slot Cell Inserter, designed for high-volume stator production with advanced features for precision and efficiency. The machine features Precise Servo Control for accurate and consistent slot cell insertion. The Auxiliary Stator Lifting Fixture allows for easy and safe handling of large stators. The Paper Roll Usage Warning system ensures uninterrupted production by alerting the operator to low paper levels. Slot Paper Insertion Detection guarantees the proper insertion of slot paper. Our Large Stator Horizontal Slot Cell Inserter is a reliable and effective solution for a variety of stator production needs, making it an essential tool for any motor manufacturing operation.
| Stator OD/ID Limit (mm) | ID : 55-200 Maximum OD ≦ 250 |
| Stator Core Length Limit (mm) | 80-250 |
| Stator slots | 20-72 |
| Slot paper thickness (mm) | 0.25-0.50 |
| Cycle Time (sec/slot) | 1.5 |
| Floor Area (W*L*H) (cm) | 170*205*185 |
| Machine Weight (Kg) | 1500 |
| Main Operation Power Source (KW) | 1.5 |
| Pneumatic Source (Kg/cm²) | 4~7 |
| Use voltage | Can be customized according to the voltage used in each country |
