Technical Information

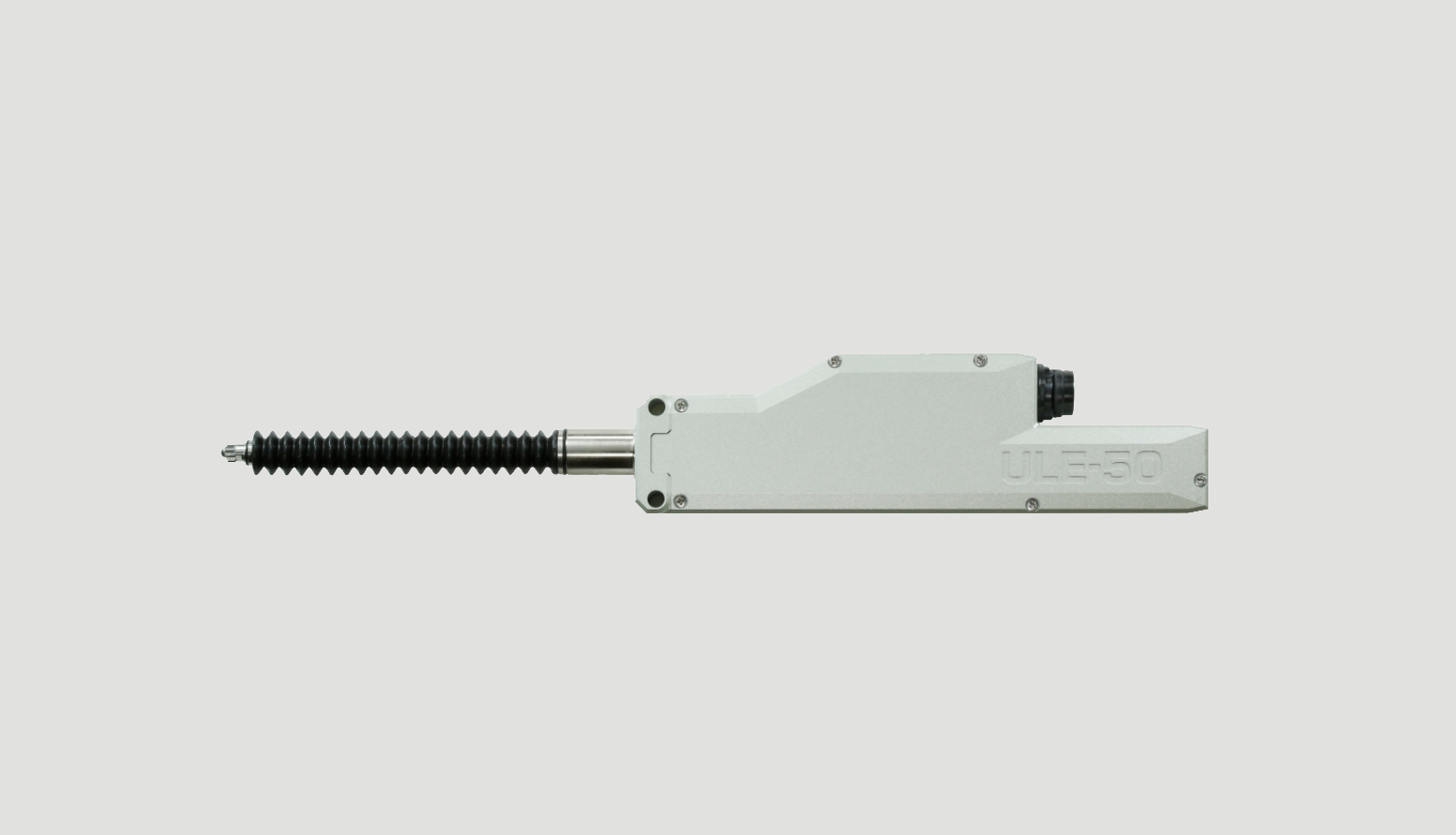

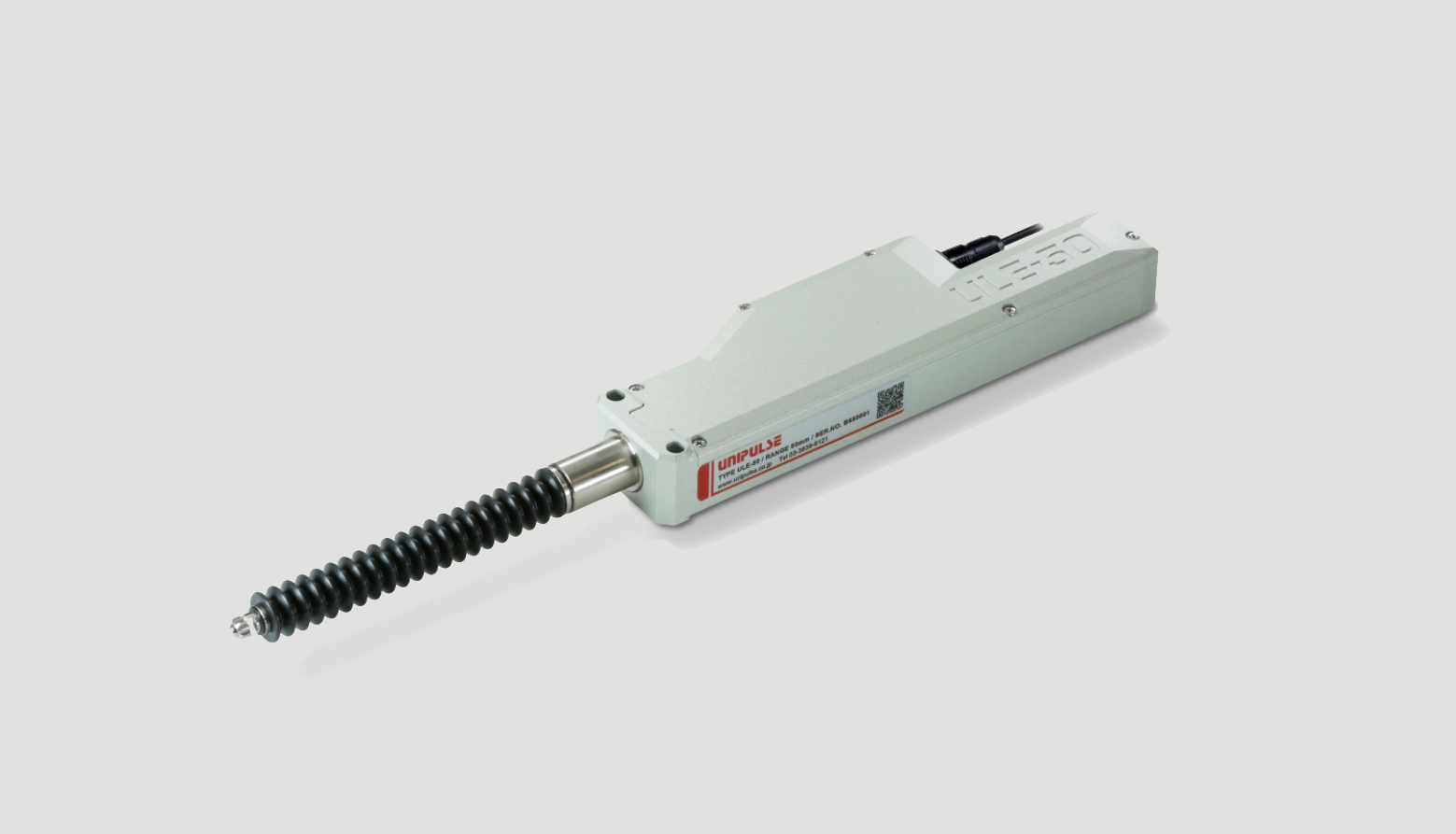

Model ULE-50
Displacement measurement method Optical incremental linear encoder
Measurement range 50mm
Measurement resolution 2.5μm (When connected to a UNIPULSE indicator)
Contact measurement capacity When installed vertically downward: Approx. 2.8NWhen installed horizontally: Approx. 2.6NWhen installed vertically upward: Approx. 2.3N
Output signal Differential line driver signal with 90° phase difference (RS-422A compliant)
Operating temperature range -10℃ to +40℃ (No icing/condensation)
Storage temperature range -20℃ to +60℃ (No icing/condensation)
Cable Robot cable (Length 2 m)
Weight Approx. 350g
Power supply voltage DC4.5 to 30V
Current consumption Approx. 0.1A or less
Attachments Connection cable (Robot cable: Length 2 m)
