Technical Information

Specification

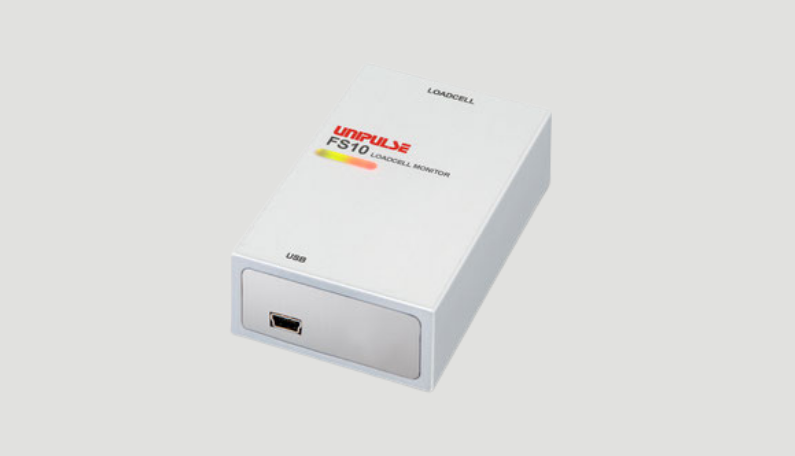

FS10
Excitation voltage
DC5V±10%, Output current within 30mA
Signal input range -3.0 to +3.0mV/V
Accuracy

Non-linearity: within 0.02%FS±1digit
Zero drift: within 0.5μV/℃
Gain drift: within 0.01%℃

Digital low-pass filter

fc=OFF, 2, 4, 6, 8, 10, 30, 50, 100 Hz

(selectable)

A/D converter

Speed: 1200 times/sec. (Same for data output)
Resolution: 24bit (binary)
Approx. 1/30000 with respect to 3mV/V

LED status light

LED (Red): Power supply/alarm status
LED (Green): Loaded condition

Power supply

DC5V (USB bus power)

Power consumption

1W typ

Operating conditions

Temperature: Operation: -10℃ to +40℃, Storage: -40℃ to +80℃
Humidity: 80%RH or less (non-condensing)

Dimensions

50 (W) × 23 (H) × 80 (D) mm

(Projections excluded)

Weight

Approx. 120g
