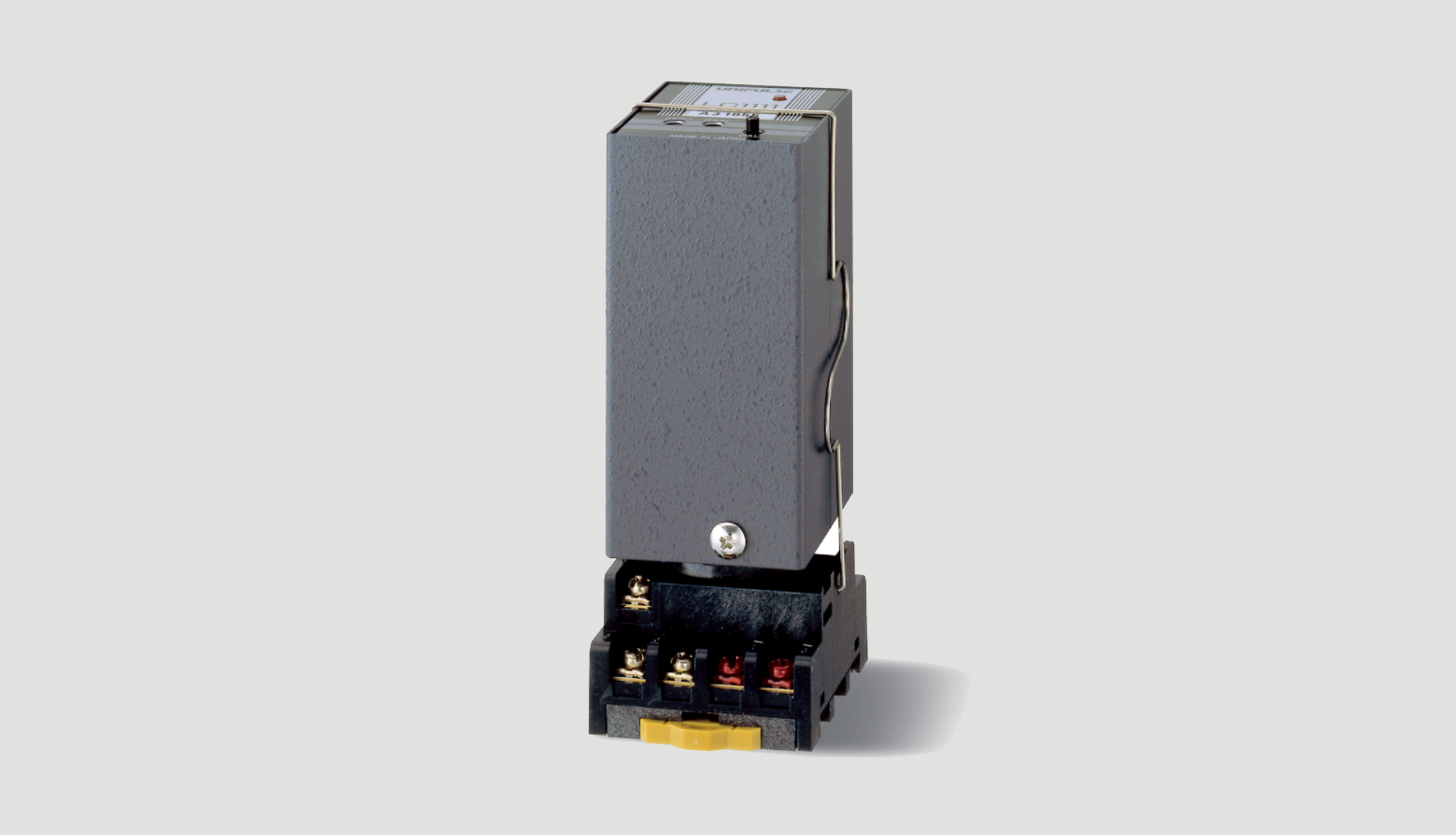

| Common specifications | |
| Excitation voltage | 5V±5% DC, Output current: within 60mA(Up to 4 loadcells at 350Ω are parallel-connectable.) |
|---|---|
| Zero adjustment range | ±0.4mV/V (bridge resistance: 350Ω)20 turn trimmer potentiometerExpandable by external resistance connection if the above range is exceeded. |
| Gain adjustment range | 0.6mV/V to 1.4mV/V (HI range)1.3mV/V to 3.2mV/V (LO range)Switching is performed by internal jumper. |
| Accuracy | Non-linearity: within 0.02% FSZero drift: within 1μV/°C RTIGain drift: within 0.01%/°CNoise: within 1μVp-p RTI (2Hz) |
| Output signal | Voltage output: 0 to ±10V, Load resistance: 2kΩ or moreCurrent output: 4 to 20mA, Load resistance: 500Ω or less |
| Low-pass filter | Low-pass filter (-6dB/oct.) 2Hz/-3dB |
| Calibration value | 1mV/V |
| Power supply voltage | 100V AC ±10%, 50/60Hz12 to 24V DC ±15% (LC1111[DC])With regard to AC or DC specifications, please specify when ordering. |
| Power consumption | AC spec:2VA typ, DC spec:2W typ. |
| Operating conditions | Temperature: Working temperature range -10 to +40°CHumidity: 85% RH or less (non-condensing) |
| Dimensions | 38(W)×93.5(H)×50(D) mm |
| Weight | Approx. 300g |
| Attachments | Dedicated socket: 1Fixing spring: 1Mini-driver: 1Operation manual: 1 |
