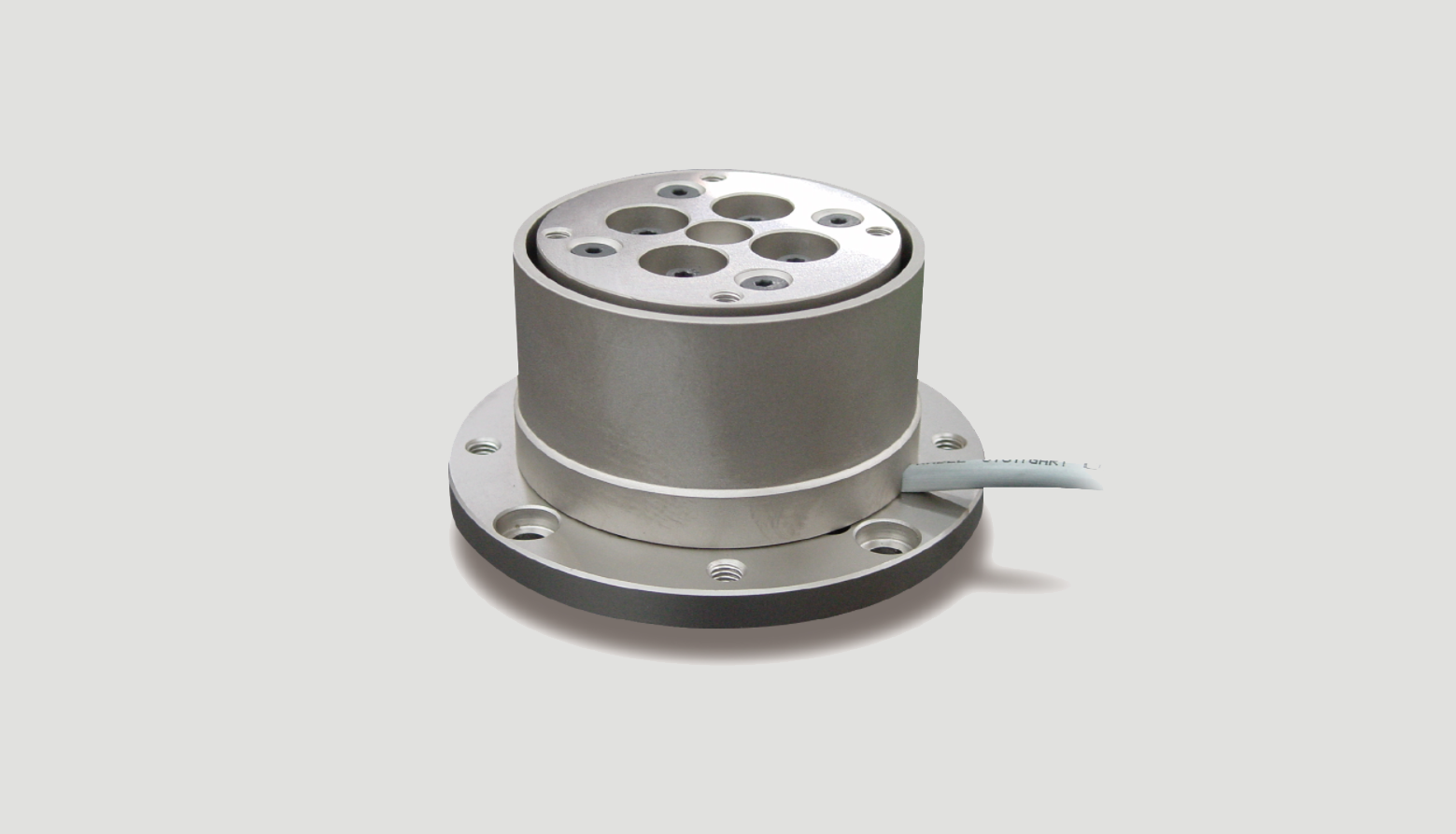

UNIPULSE CENTER MASTER

Automatically compensating column point errors in press fitting process

Technical Information

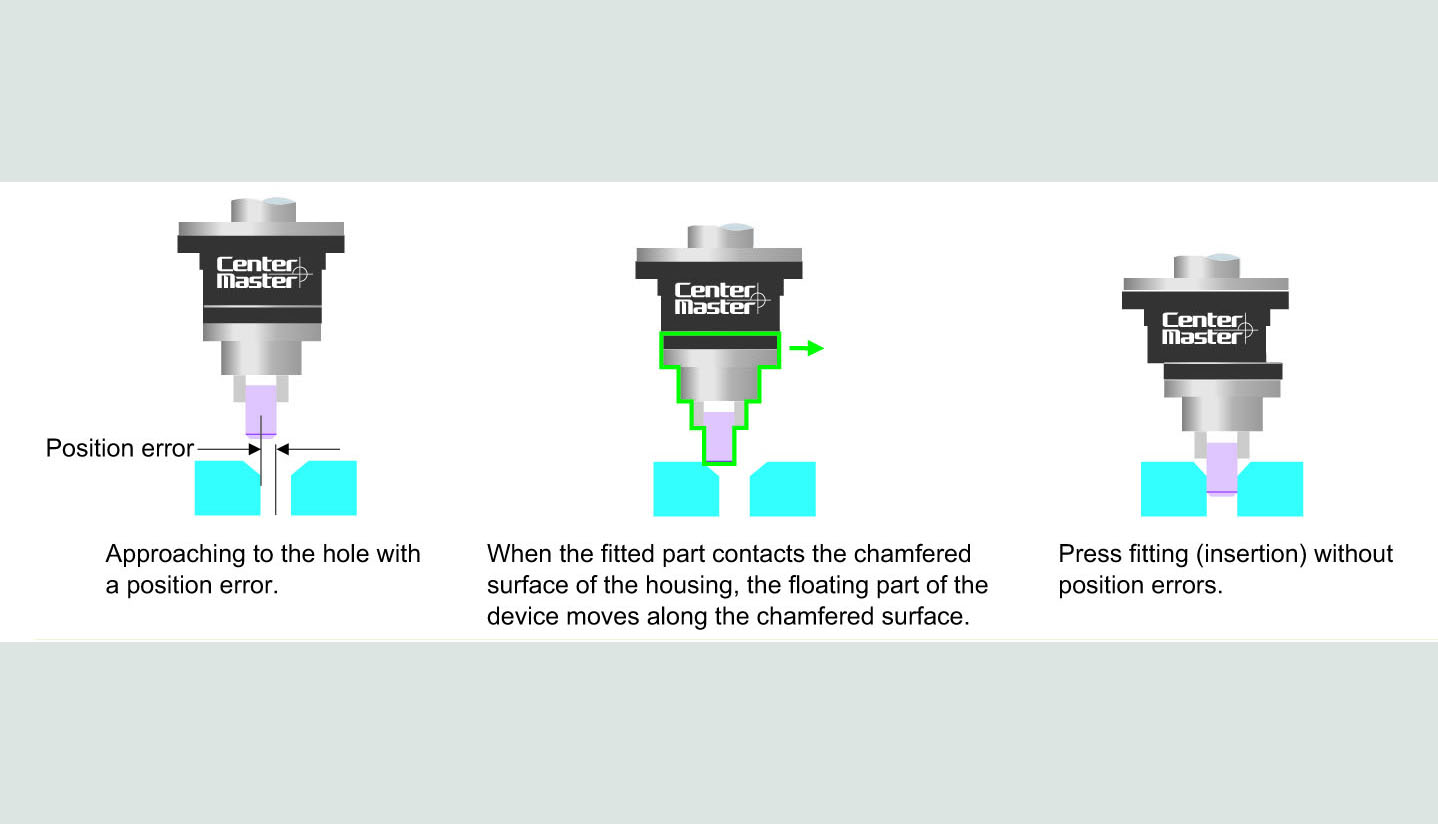

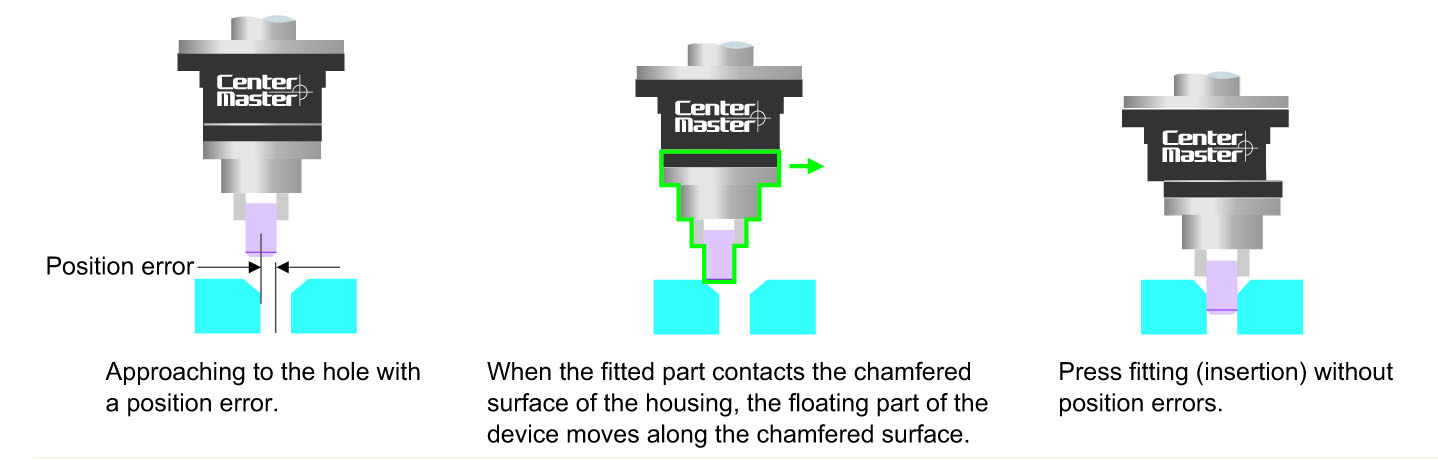

Automatic compensation of position error

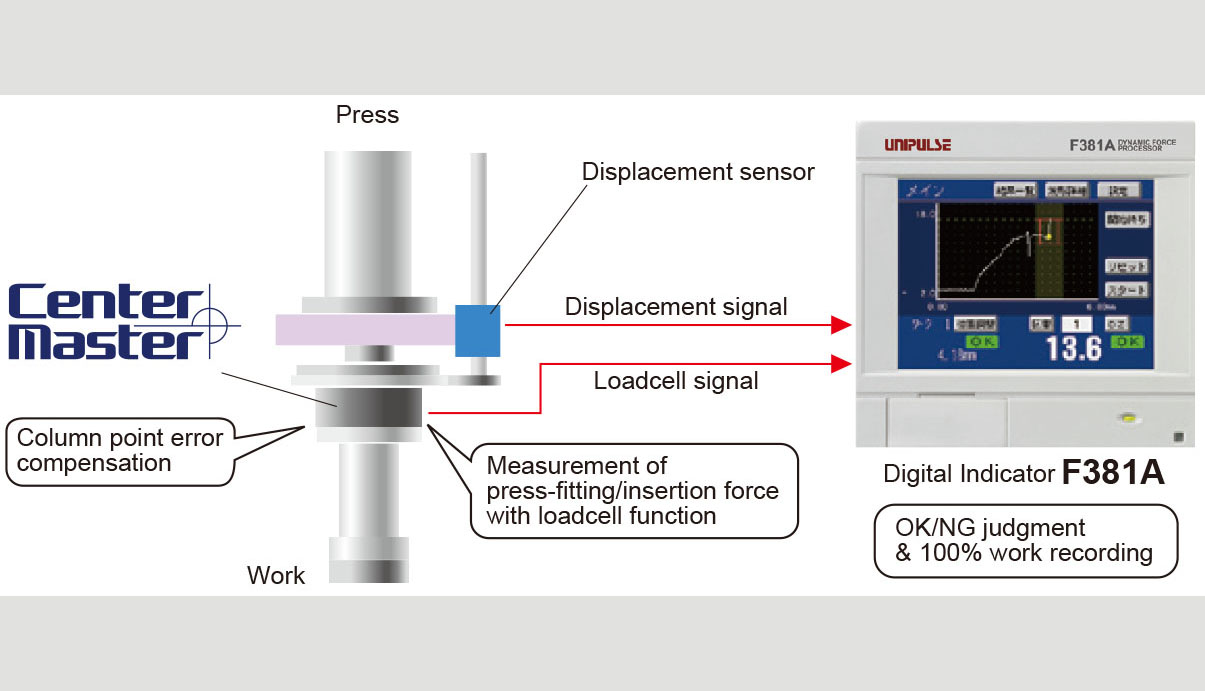

Press-fitting/insertion waveform control by combination with indicator
By combining load cell signal from the Center Master and control equipment such as a digital indicator, systematic quality control is made possible.

  • Real-time quality control by press-fitting/insertion force waveform display
  • OK/NG judgment of press fitting results by use of displayed waveform
  • 100% work waveform recording in an SD card

When the Center Master S-Series and Digital Indicator F381A are used.
