Grip master unipulse grip master

GRIP MASTER UNIPULSE GRIP MASTER

Quantifying of grip force in metalworking Daily management tool to support precision machining

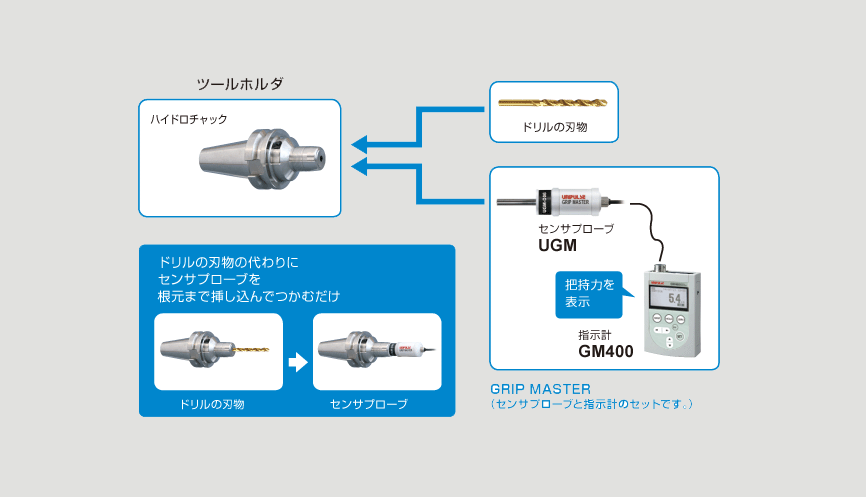

Grip force of tool holders can be easily checked by simply inserting and gripping the sensor probe by a tool holder
It's most suitable for hydraulic chuck

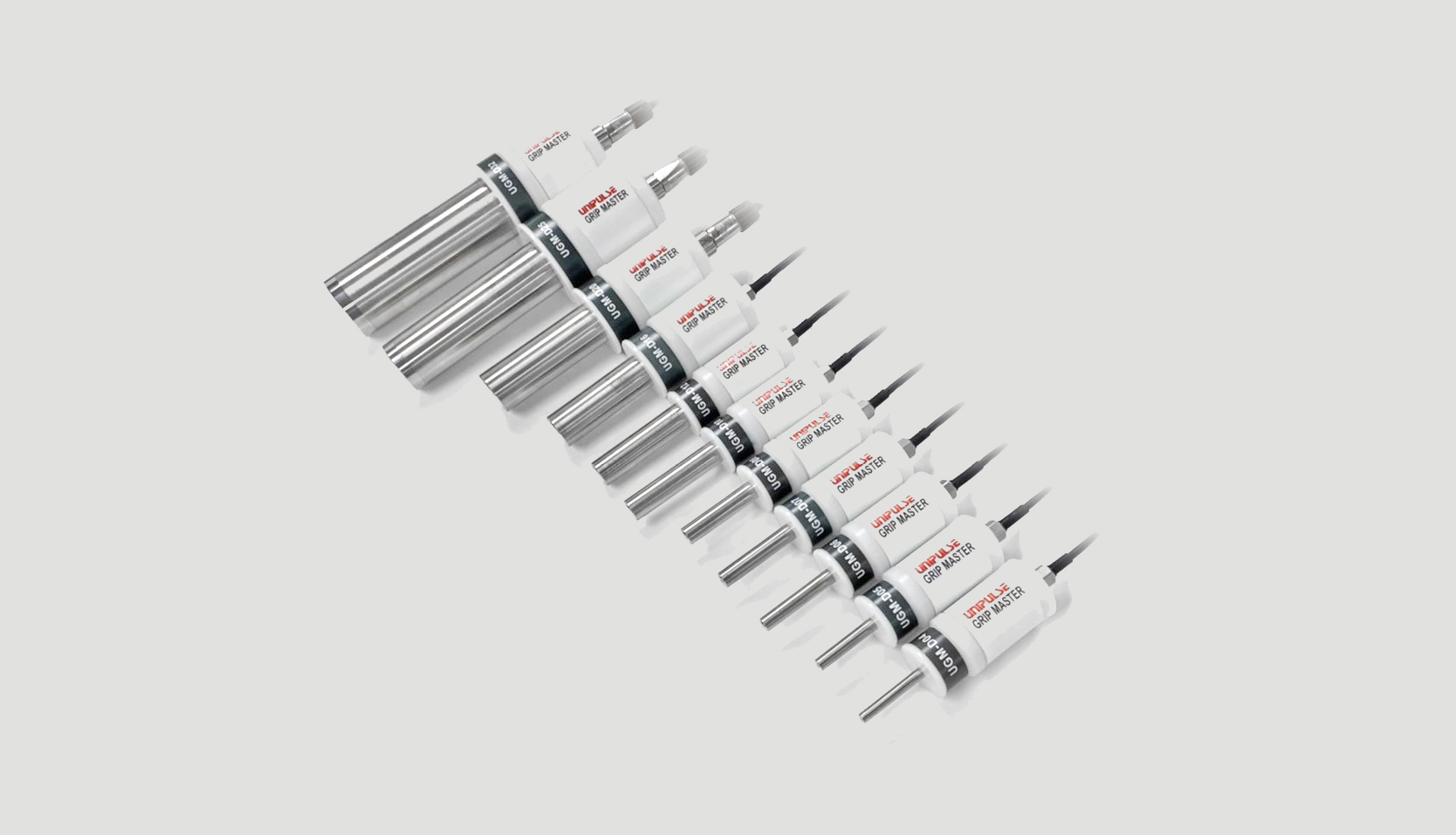

Sensor probe (UGM) product line includes wide-ranging diameter from φ4mm to 32mm
Information of the sensor is stored in the memory of the sensor probe itself. There is no need to enter information for calibration each time when a sensor probe is changed
Measurement data will be recorded with date and time when "SAVE" button is pressed
Recorded data can be easily exported to PC via USB interface
A carrying case convenient for storage and transportation comes with the product

UGM: Sensor probe (φ4, φ5, φ6, φ7, φ8, φ10, φ12, φ16)
Model	UGM-D04	UGM-D05	UGM-D06	UGM-D07	UGM-D08	UGM-D10	UGM-D12	UGM-D16
Diameter	4mm	5mm	6mm	7mm	8mm	10mm	12mm	16mm
Rated capacity(R.C)	10kN	10kN	20kN	20kN	20kN	40kN	40kN	60kN
Calculated holding torque at R.C	15,3Nm	19,1Nm	45,9Nm	53,6Nm	61,2Nm	153,0Nm	183,6Nm	367,2Nm
Maximum safe overload	120% R.C.
Safe temperature range	＋10〜＋40℃
Cable	φ3 shielded cable 1.5m connector included						φ5 shielded cable 1.5m connector included
Material	Sensor probe：stainless, Cover：polyacetal (it cannot be removed)
Weight (excluding cable)	Approx 100g	Approx 100g	Approx 100g	Approx 100g	Approx 100g	Approx 120g	Approx 130g	Approx 150g

UGM: Sensor probe (φ20, φ25, φ32)
Model	UGM-D20	UGM-D25	UGM-D32
Diameter	20mm	25mm	32mm
Rated capacity(R.C)	100kN	150kN	200kN
Calculated holding torque at R.C	765Nm	1430Nm	2400Nm
Maximum safe overload	120% R.C.
Safe temperature range	+10 to +40℃
Cable	φ5 shielded cable 1.5m connector included
Material	Sensor probe：stainless, Cover：polyacetal (it cannot be removed)
Weight (excluding cable)	Approx 360g	Approx 800g	Approx 1000g

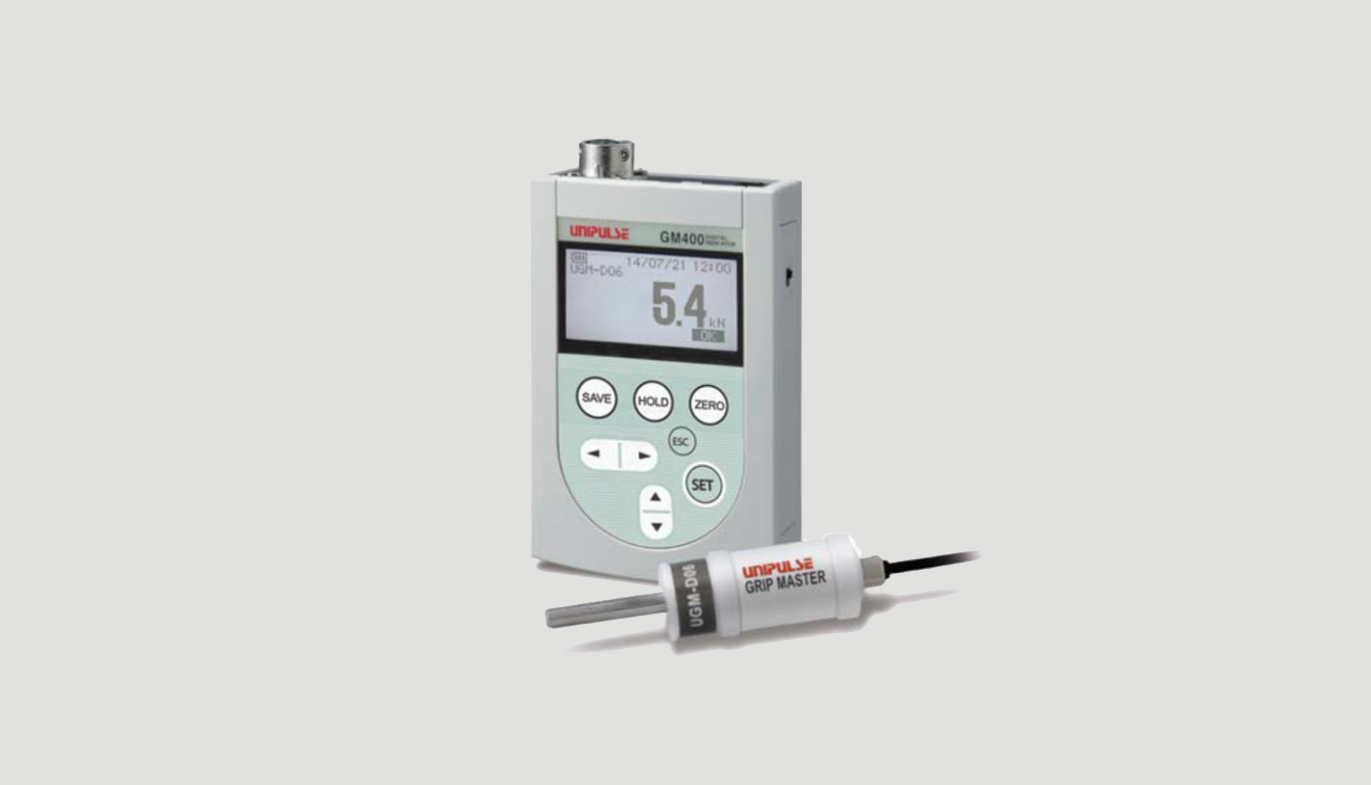

Indicator : GM400
A/D converter	80 times/sec.
Display unit	128×64dot LCD
Recording function	Record when [SAVE] is pressed
Recording media	Internal memory
Recording method	Texts in CSV format
Recorded data	ID, sensor number, date and time, indicated value/reading (torque and grip force),unit, and temperature
Memory for recorded data	12,000 data

General specifications
Internal power supply	AA alkaline batteries or nickel metal hydride batteries (4 pcs.)
External power supply	AC adopter for 100 Vac (sold separately)
Max. continuous operating time	Approx. 30 hours (when backlight is off)
Operating conditions	Temperature: -10 to +40 ℃ Humidity: 80% RH or less (non-condensing)
Dimensions	86(W)×132(H)×30(D)mm (not including protrusions)
Weight	Approx. 290 g (including the 95g weight of battery)
