FIXED-MOUNT CODE SCANNER 1D & 2D MARS TOHKEN | MCR-F180 SERIES

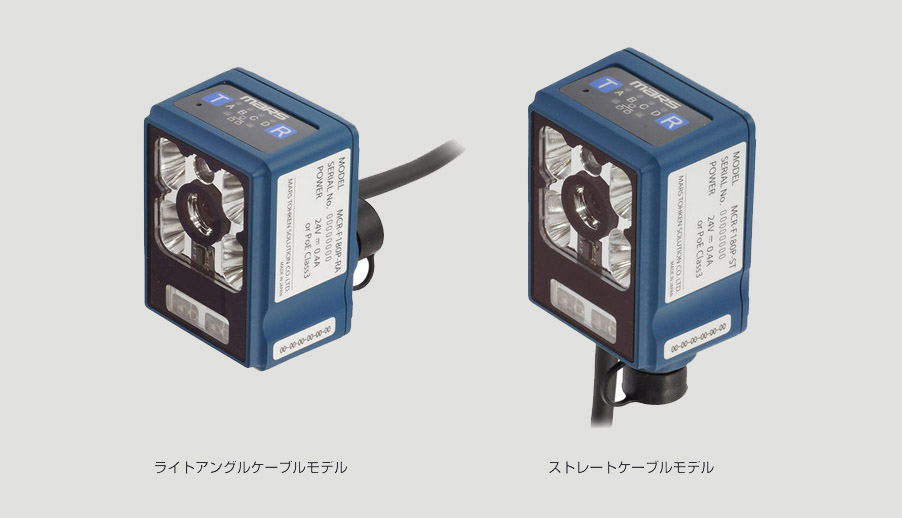

Model: MCR-F180-ST, MCR-F180-RA, MCR-F180P-ST, MCR-F180P-RA

1D&2D fixed-mount code scanner with Ethernet interface from Mars Tohken Solution.

Technical Information

Model MCR-F180
Interface Ethernet
Supported barcodes (2D) DataMatrix (ECC200), QR Code, MicroQR, PDF417, Aztec Code, Composite Code
Supported barcodes (1D)  JAN/EAN/UPC, ITF, Codabar, Code39, Code93, Code128, EAN128, GS1 Data Bar

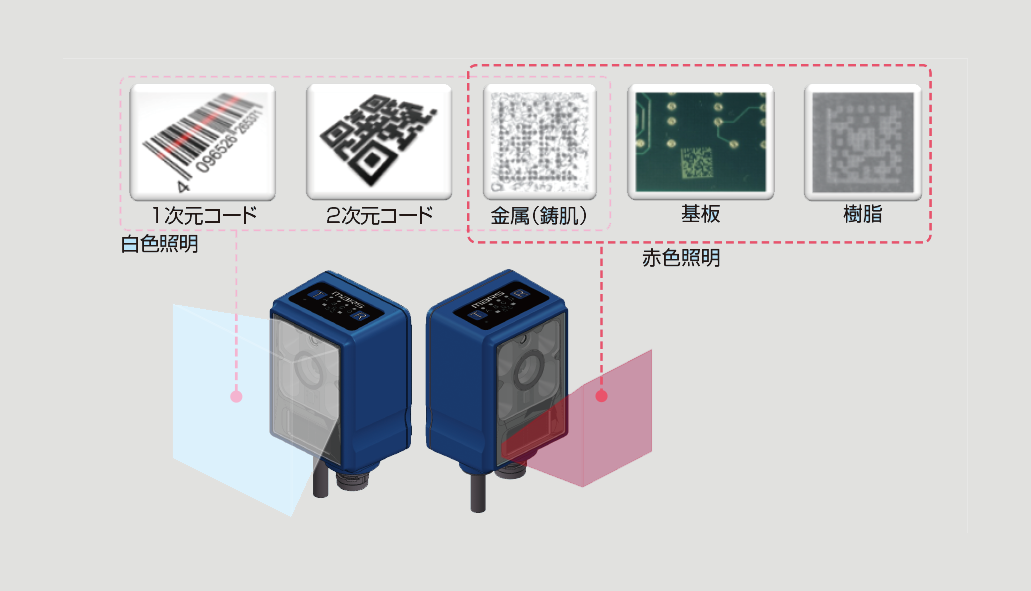

Integrated lighting White LED and Red LED
Minimum resolution 0.125mm (5.92mil)
Power supply DC24.0V+/-10%
Power consumption Less than 400mA
Operating temp./humi. 0 ~ 40 deg C / 35 ~ 85%RH (non-condensing)
Storage temp./humi. -20 ~ 60 deg C / 35 ~ 85%RH (non-condensing)
Digital input Photocoupler isolation  x 2
Digital output Photocoupler isolation x 2
Dimensions 45(W) x 60(H) x 35(D)mm
Weight 125g
