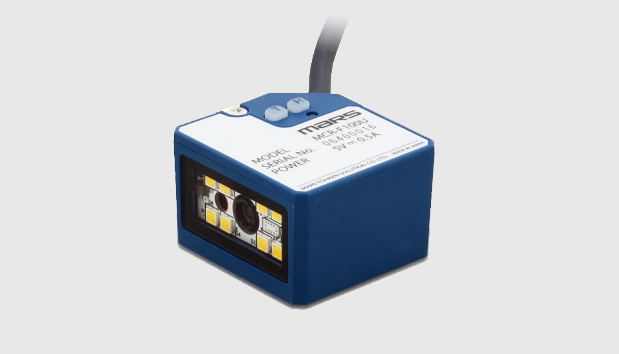

FIXED-MOUNT & COMPACT CODE SCANNER 1D & 2D MARS TOHKEN | MCR-F100, MCR-F110 SERIES

Model: MCR-F100U, MCR-F100R, MCR-F100R5, MCR-F110U, MCR-F110R, MCR-F110R5

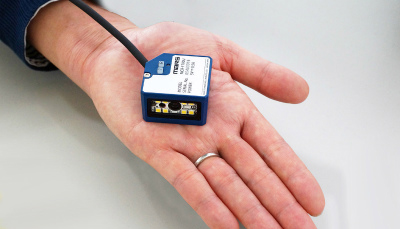

Compact 1D & 2D Fixed Mount Barcode Scanner from Mars Tohken Solution.

Technical Information

Model MCR-F100U/F100R/F100R5  MCR-F110U/F110R/F110R5
Interface RS-232C(5V, 24V), USB 2.0
Supported barcodes (2D) DataMatrix(ECC200), QR Code, MicroQR, PDF417, Aztec Code, Composite Code
Supported barcodes (1D) JAN/EAN/UPC, ITF, Codabar, Code39, Code93, Code128, EAN128,
GS1 Data Bar
Integrated lighting White LED Red LED
Minimum resolution 0.19mm(7.48mil)  0.125mm (5.92mil)
Power supply DC24.0V+/-10%(F100R, F110R), DC5.0V+/-10%(F100U, F100R5, F110U, F110R5)
Power consumption 500mA less (F100U, F100R5, F110U, F110R5), 150mA less(F100R, F110R),
Operating temparature/Humid 0 to 40 C / 35 to 85%RH (no condence)
Storage temparature/Humid -20 to 60 C / 35 to 85%RH (no condence)
Digital input Photocoupler isolation x 1, Resistance: 1kΩ, OFF voltage: 0 to 0.8V, ON voltage: 6 to 28V
Digital output Photocoupler isolation x 3, Rated value DC30V 50mA

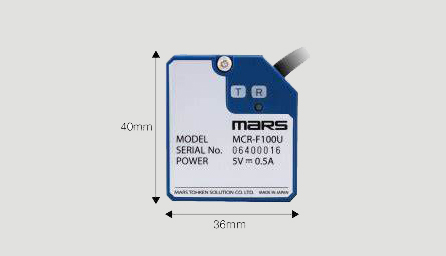

Dimension 40(W) x 24(H) x 36(D)mm
Weight 30g
