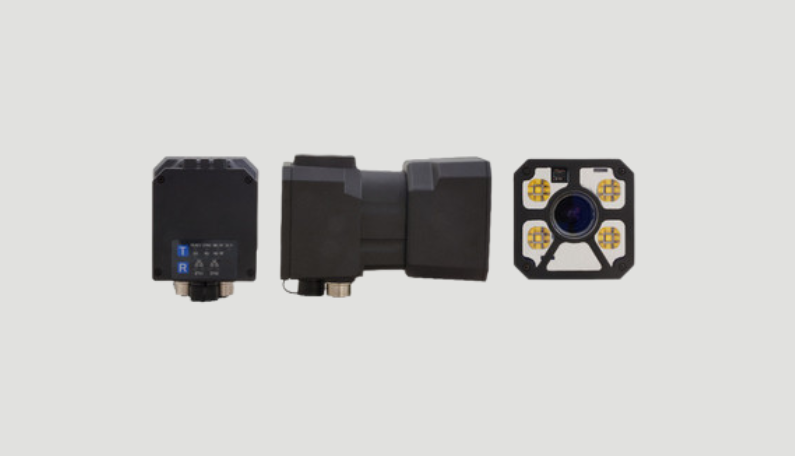

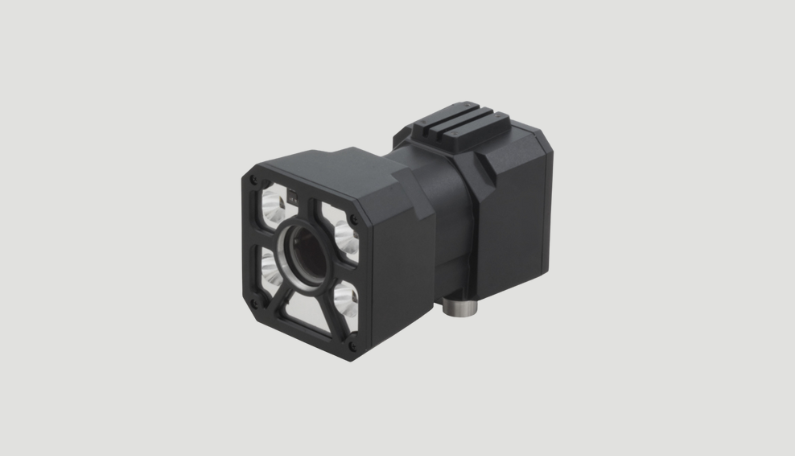

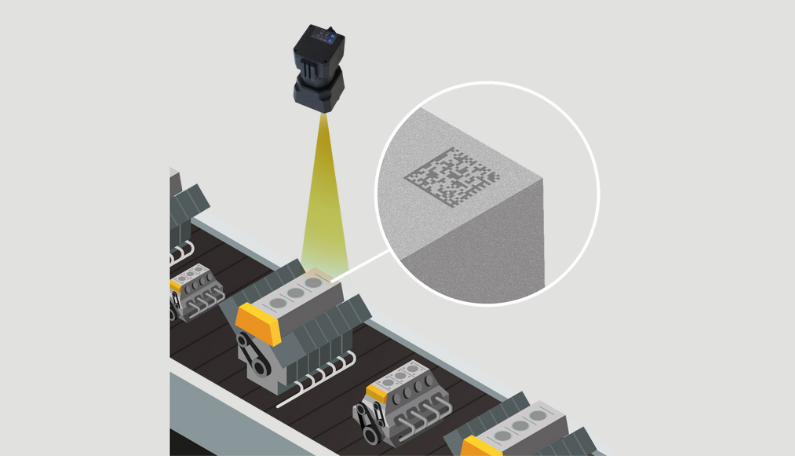

| Specifications | ||
| Model | MCR-F1000 | |
| Correspondence Symbols | Barcode | Code39, Code128 / GS1-128(EAN128), Codabar(NW7) ITF(Interleaved 2/5), UPC / EAN(jan) GS1 DataBar, Code93 |
| Two-dimensional codes | Data Matrix(ECC200), CompositeCode QR Code / Micro QR Code, PDF417 / MicroPDF417 AztecCode | |
| Read angle |
PITCH: ±35° SKEW: ±35° TILT: 360° |
|
| Minimum resolution |
0.1 mm |
|
| Light receiving unit | Image sensor |
2/3" CMOS Image Sensor Black & White |
| Number of effective pixels |
2448 (X) × 2048 (Y)(approx. 5 million pixels) |
|
| Focus adjustment |
Auto (Focus position can be automatically adjusted during installation and tuning) |
|

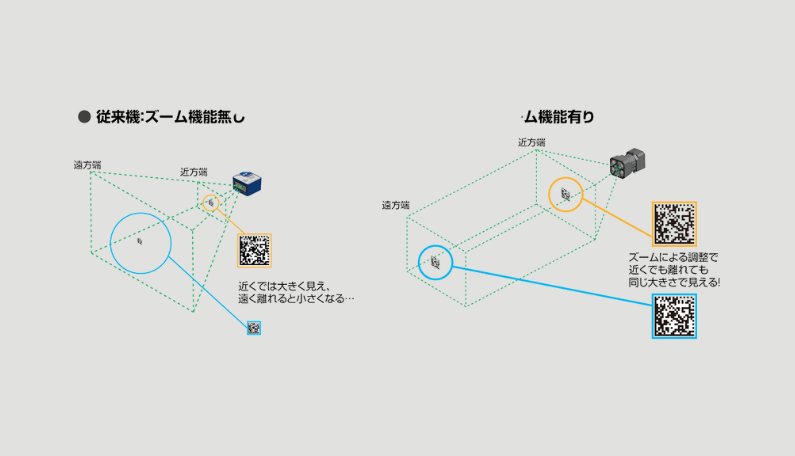

| Magnification adjustment |
Semi-automatic (only cell size and number of imaging pixels, or shooting range are set manually) |
|
| Light emitting unit | Illumination |
High Brightness White LED |
| Ranging sensor |
Infrared laser 940 nm |
|
| Power Supply Rating | Power supply voltage |
DC 24 V±10% |
| Current consumption |
1 A |
|
| Digital input |
Two optocoupler insulation points Input resistance: 2.2 kΩ ON voltage: 10.8 ~ 28 V OFF voltage : 0 ~ 0.8 V |
|
| Digital output |
Optocoupler insulation x 3 points Maximum rated DC 30 V 50 mA |
|
| Buzzer |
Electromagnetic buzzer |
|

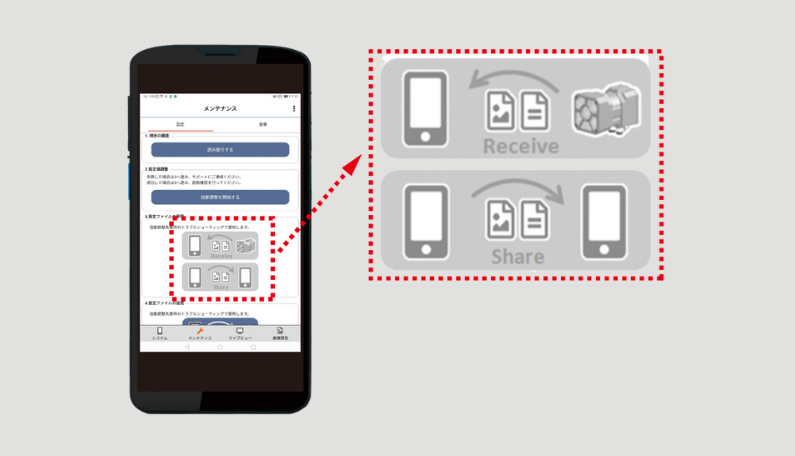

| Interface |
Ethernet(1000BASE-T, 100BASE-TX, 10BASE-Te) |
|
| Vibration resistant | Operating Temperature |
0 ~ 40 °C |
| Operating humidity |
35 ~ 85% R.H. (non-condensing) |
|
| Storage temperature |
-20 °C ~ 60 °C |
|
| Storage humidity |
35 ~ 85% R.H. (non-condensing) |
|
| Vibration resistant |
10~150Hz Amplitude 0.15 mm (total width)/X, Y, Z in each direction: 2 hours (*1) |
|
| Protection structure |
IP67 |
|
| Ambient illuminance |
10000 lx or less |
|
| Dimensions |
65 (H) mm × 65 (W) mm × 110 (D) mm (not including standoffs) |
|
| Mass |
~400 g (not including cable) |
|
*1 This is a test value, not a guaranteed value.
* Please note that product specifications are subject to change without notice.
