FIXED-MOUNT CODE SCANNER WITH OCR MARS TOHKEN | MVF-500 SERIES

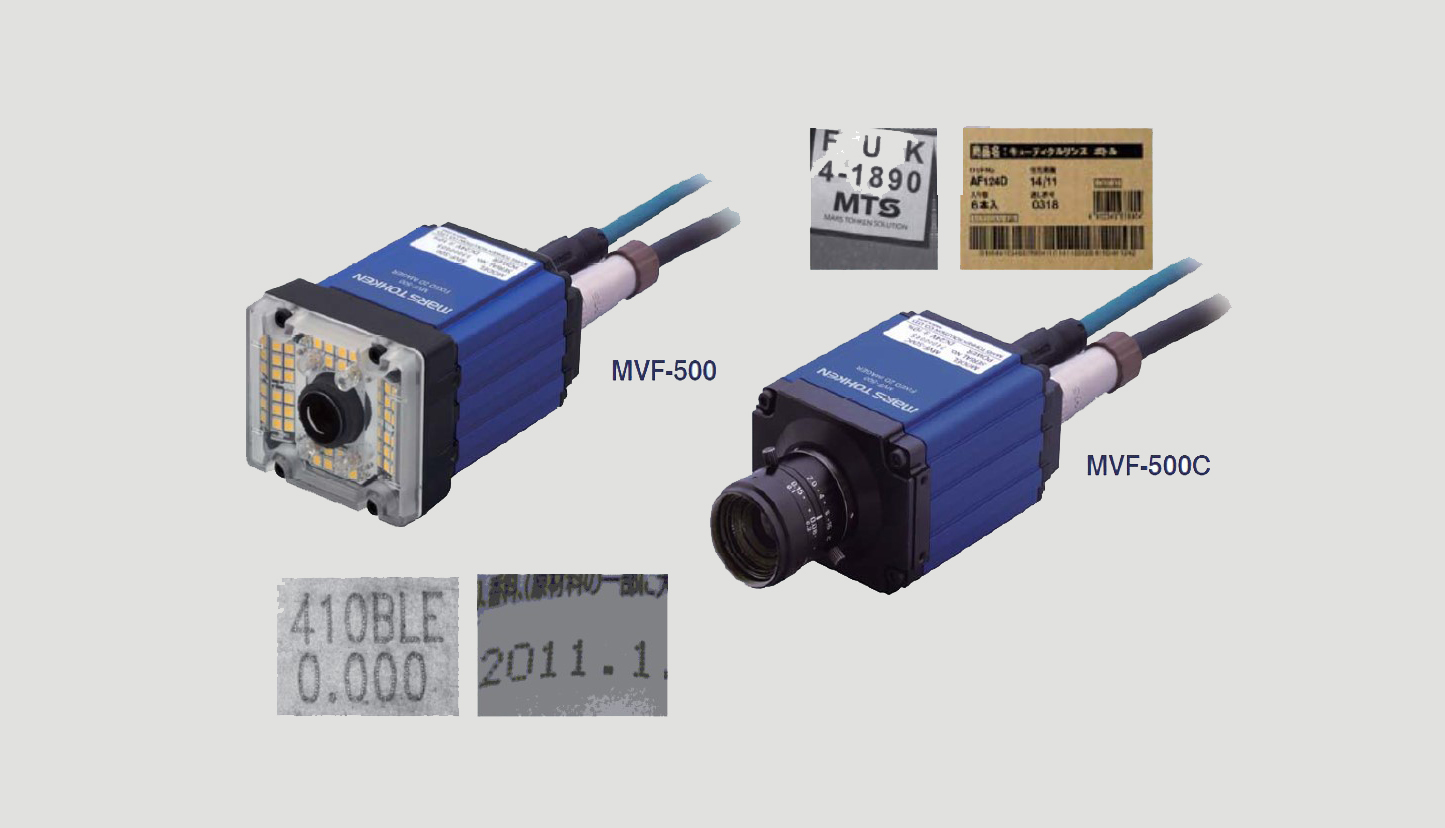

Model: MVF-500, MVF-500C.

Reading 1D / 2D symbols, OCR, pattern matching inspection simultaneously possible! The "print quality inspection" of the barcode for stable operation is also possible with one scanner from Mars Tohken Solution.

FIXED-MOUNT CODE SCANNER WITH OCR MARS TOHKEN | MVF-500 SERIES

High speed processor
OCR (Character recognition）
Pattern matching (Shape recognition)
Print quality verification ※ISO15415 and AIM DPM 2006-1 output inspection results in evaluation items.
PLC Programless connection
Easy setting & Maintenance
Direct marking compatible
Easily set various parameters from the PC Included software
C Mount lens type (MVF-500C) lineup (NEW!)

DISCONTINUED - REPLACE BY MODEL: MCV-F1000

download Request a quotation

Technical Information

Model	MVF-500, MVF-500C
Interface	RS-232C, RS-485, Ethernet (10 Base-T, 100BASE-TX, 1000BASE-T)
Supported barcodes (2D)	DataMatrix(ECC200), PDF417, MaxiCode, QR Code, MicroQR, MicroPDF, GS1 Data Bar Composite
Supported barcodes (1D)	JAN/EAN/UPC, ITF, Codabar, Code39, Code93, Code128, EAN128, GS1 Data Bar
Working distances	MVF-500: DataMatrix:Basic bar width/Cell size 0.25mm 、Nearness 165mm、Distant 235mm 　　　　　　Basic bar width/Cell size 0.38mm 、Nearness 140mm、Distant 265mm QR code:Basic Bar Width / Cell Size0.25mm 、Nearness165mm、Distant 230mm 　　　　　Basic Bar Width / Cell Size 0.33mm 、Nearness155mm、Distance245mm MVF-500C(35mmReference value when using lens）: DataMatrix:Basic Bar Width / Cell Size 0.25mm 、Nearness335mm、Distant 380mm 　　　　　　Basic Bar Width / Cell Size 0.38mm 、Nearness 315mm、Distant 560mm QRコード:Basic Bar Width / Cell Size 0.25mm 、Nearness 345mm、Distant 380mm 　　　　Basic Bar Width / Cell Size 0.33mm 、Nearness 340mm、Distant 490mm
Integrated lighting	White LED
Power supply	DC24V+/-10%
Power consumption	Standby 200mA , Operation 400mA
Operating temperature / humidity	0 ~40 deg. C / 35 ~ 85% RH (non-condensing)
Storage temperature / humidity	-20 ~65 deg. C / 35 ~ 85% RH (non-condensing)
Digital input	Photocoupler isolation ×1 / Input resistance： 1kΩ / OFF Voltage： 0～0.8V / ON Voltage： 6～28V
Digital output	Photocoupler isolation ×3 / Max rating DC30V 50mA
Dimensions	MVF-500 : 54(H)x65(W)x100(D)mm（No including Connector & protrusion） MVF-500C : 51.4(H)×65(W)×84.7(D)mm（No including Connector & protrusion）
Weight	MVF-500 : 430g or less MVF-500C : 390g or less
Options	Image processing function(Pattern matching、Measuring length etc.）、Illumination：MLU-21-W、Standard power supply : MPSU-3200-24U、Multi-connection power supply : MPSU-500M
