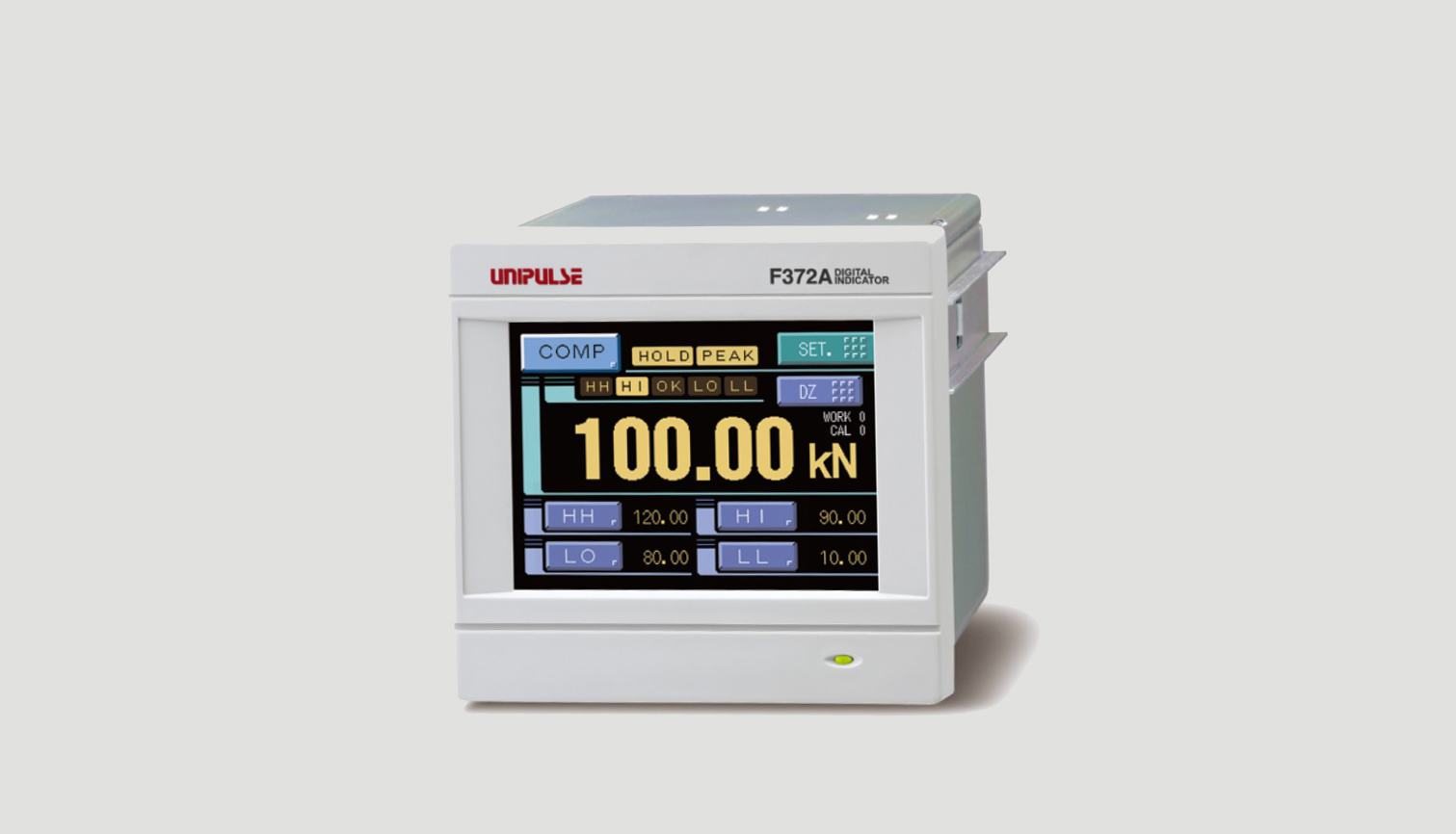

FORCE INDICATOR UNIPULSE F372A

Graphic display/ touch panel type digital indicator

Changes in physical quantity, that are recognizable only by numerical display, are displayed in waveform
Extensive Hold functions that enable holding an accurate point and OK/NG judgment function
Double Hold that can perform two types of Hold simultaneously, Before Value Comparison and Relative Value Comparison functions are included
Easy and simple setting operation by directly touching touch panel
Compact square DIN 96 size
High-speed digital processing capability of 2000 times/sec.

Common specifications
Power supply voltage	DC24V (±15％)
Power consumption	18W Max
Operating conditions	Temperature: Operation temperature　-10℃ to +40℃ Storage temperature　-20℃ to +60℃ Humidity: 85% RH or less (non-condensing)
Inrush current (typ)	55A, 1msec (cold start at room temperature)
Dimensions	96(W)×96(H)×138(D) mm (protruding areas are not included)".
Weight	Approx. 1.0kg
CE marking certification	EMC Directives EN61326-1
