HIGH ACCURACY TENSION/COMPRESSION LOADCELL UNIPULSE USB58

Top-of-the-line compression / tension type loadcells uniquely developed through the perseverance of Unipulse

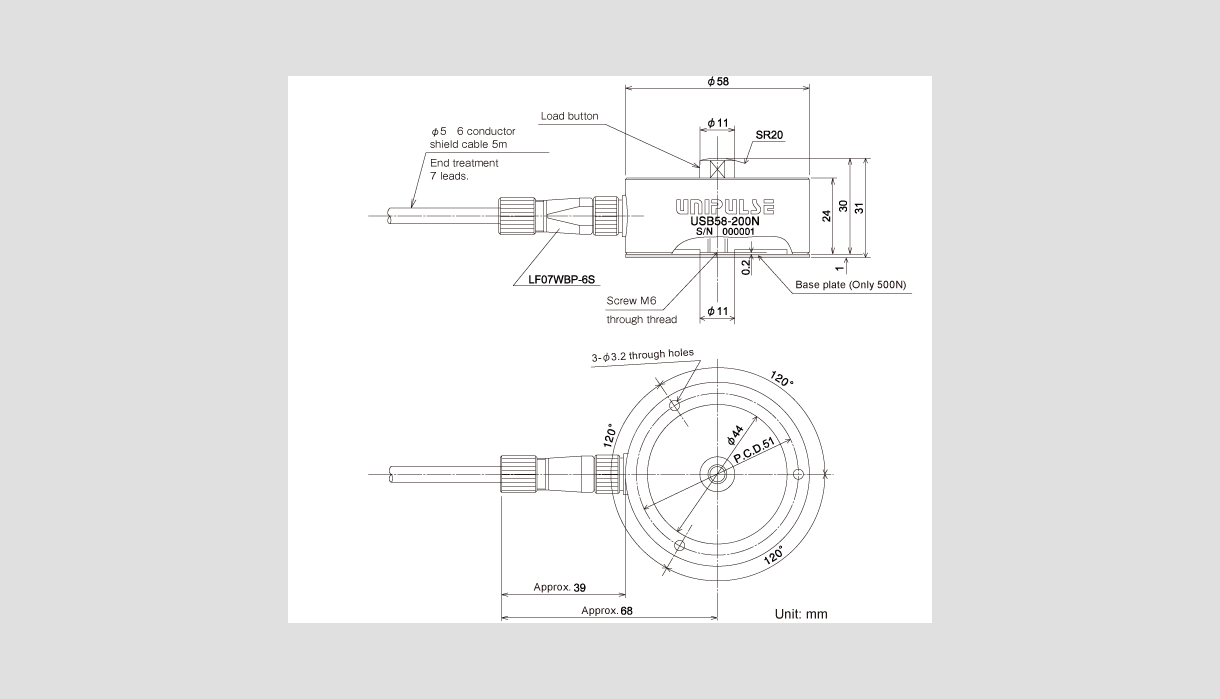

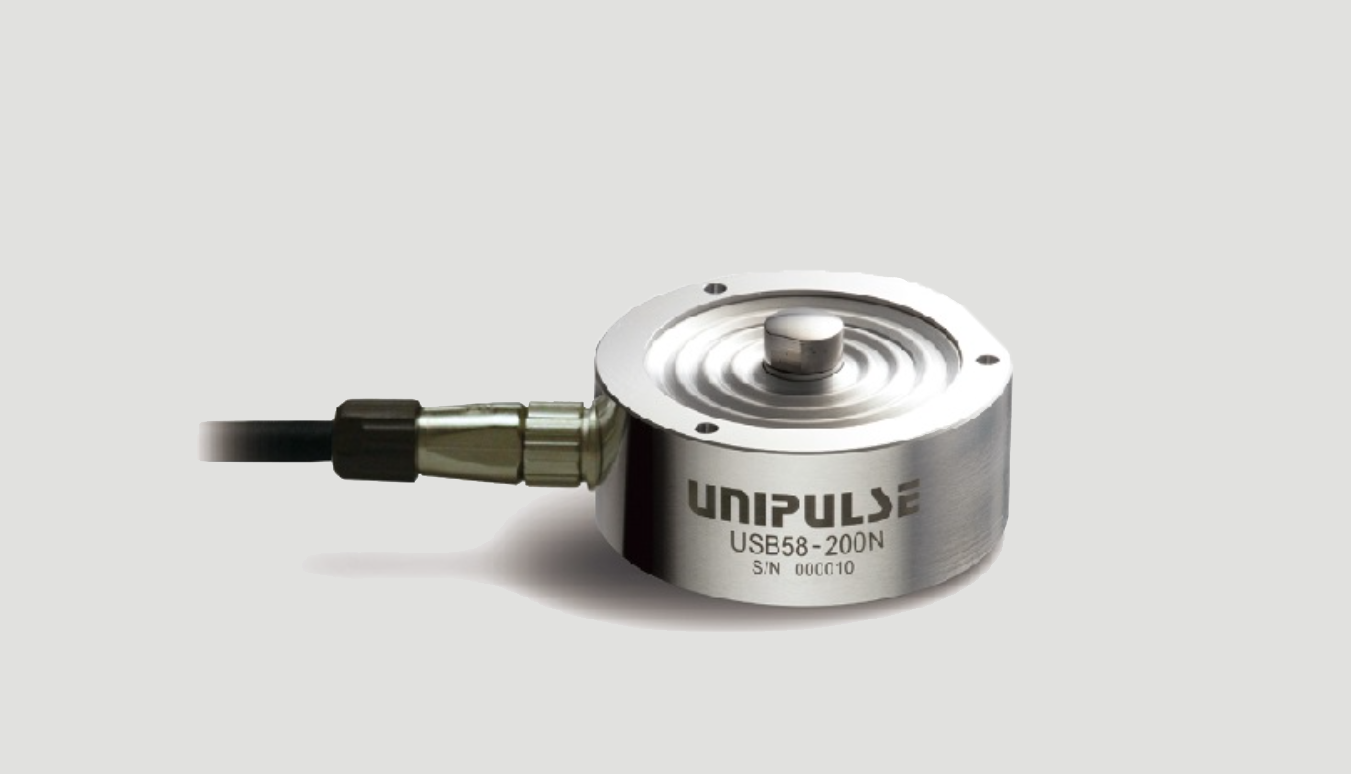

Model : USB58-200N, USB58-500N

Model	USB58-200N, USB58-500N
Rated capacity	200, 500	N
Rated output	1±1%	mV/V
Safe overload	150	%R.C.
Zero balance	±2	%R.O.
Non-linearity	0.01	%R.O.
Hysteresis	0.01	%R.O.
Repeatability	0.01	%R.O.
Creep	0.03	%R.O./30min
Operation temperature range	-10 to +70	℃
Safe temperature range	-30 to +80	℃
Temperature effect on Zero	0.015	%R.O./10℃
Temperature effect on span	0.015	%R.O./10℃
Input resistance	1050±15%	Ω
Output resistance	1050±1%	Ω
Recommended excitation voltage	10	V
Maximum excitation voltage	20	V
Insulation resistance (DC50V)	1000 or more	MΩ
Cable	φ5 6-conductor color shield cable. Length 5m.End treatment -7leads.
Cable color code	＋EXC：Red＋S：Yellow－S：Orange－EXC：Black＋SIG：Green－SIG:WhiteSHIELD
Loadcell material	Aluminum alloy
Deflection at rated	Approx. 0.025	mm
Natural frequency	Approx. 2	kHz
Weight	120	g
