High stiffness digital load cell dscb

HIGH STIFFNESS DIGITAL LOAD CELL DSCB

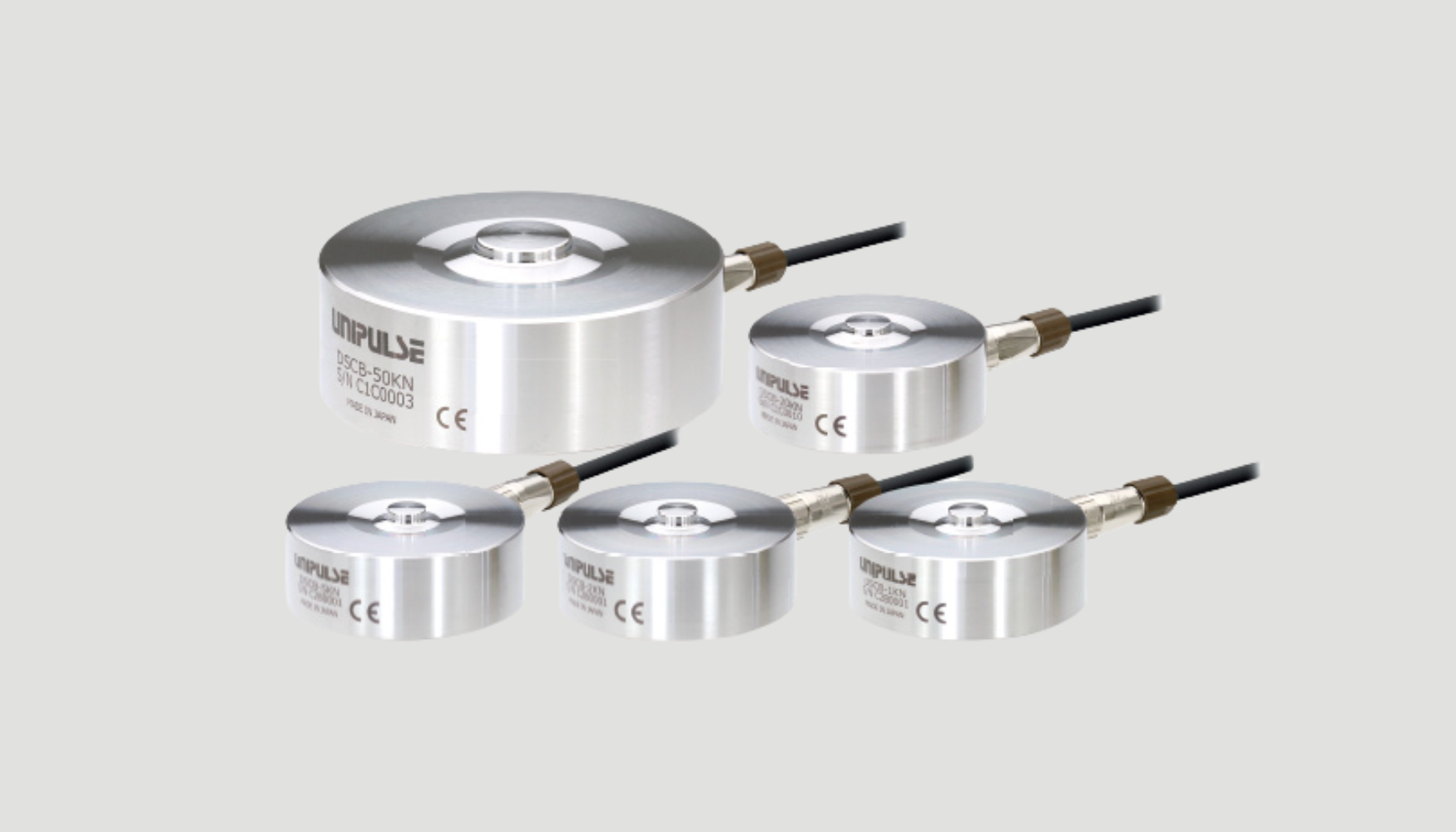

Model: DSCB-1KN, DSCB-2KN, DSCB-5KN, DSCB-20KN, DSCB-50KN

High-stiffness load cell with noise-resistant digital output incorporated!

HIGH STIFFNESS DIGITAL LOAD CELL DSCB

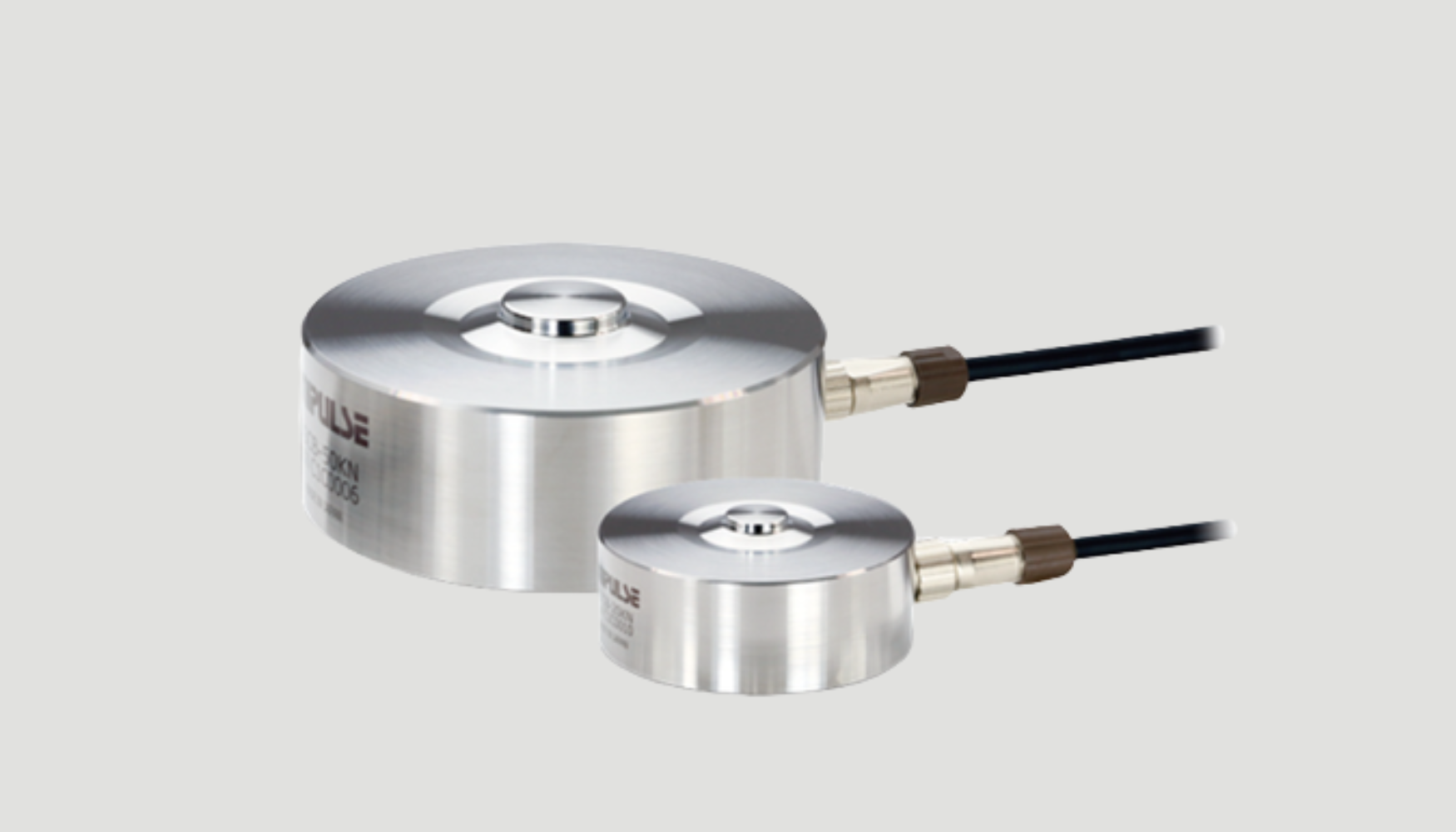

Capacity 1 kN / 2 kN / 5 kN / 20 kN / 50 kN

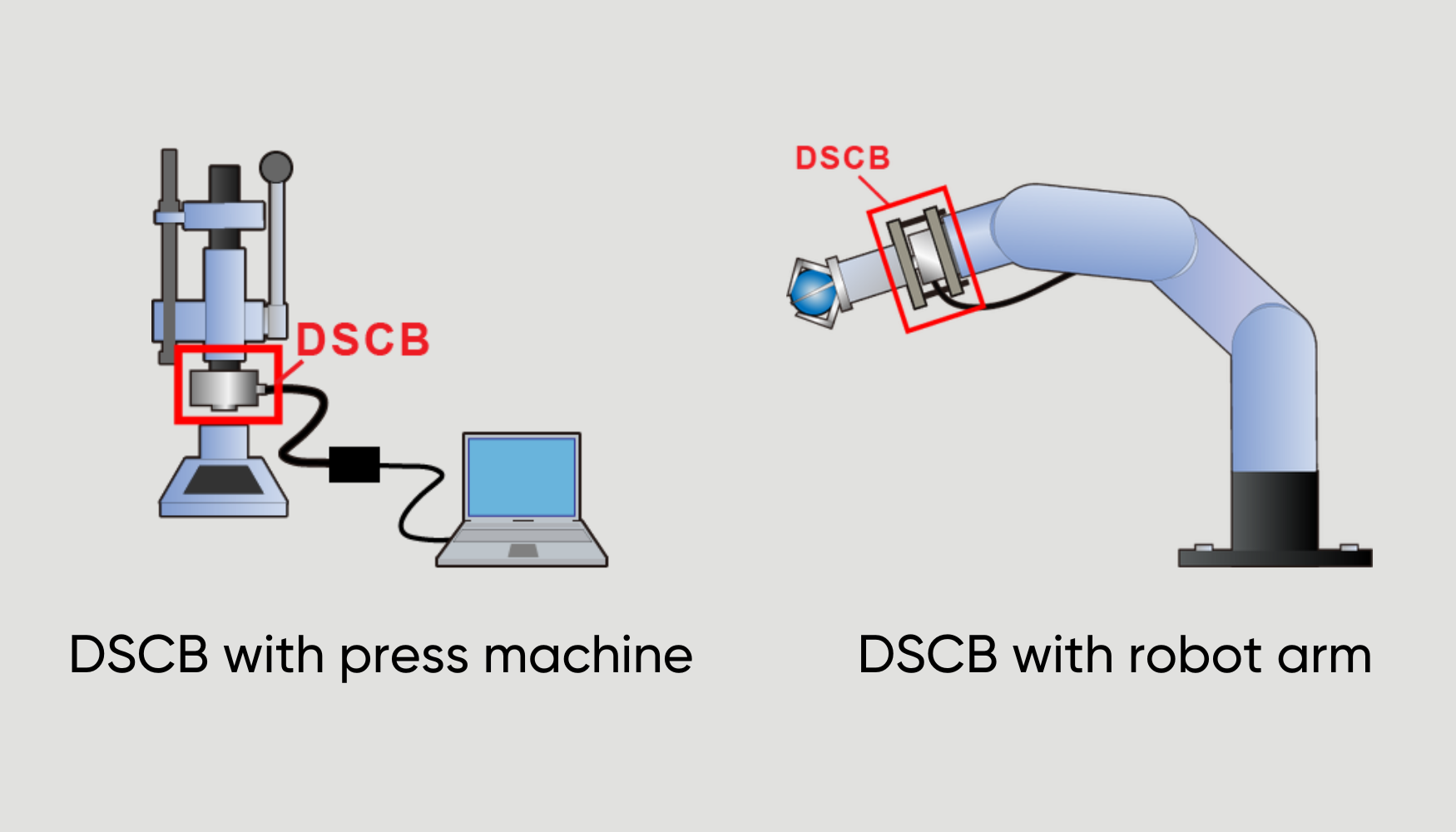

High stiffness and Safe overload of 500％. DCSB can be used safely for cutting by machine tools or for measuring grinding force. With its 500% safe overload, DSCB can stably measure even severe load over a long period.
Excellent maintainability. Zero point and full scale are adjusted at the time of shipment from a factory; recalibration is unnecessary at a replacement of DSCB.

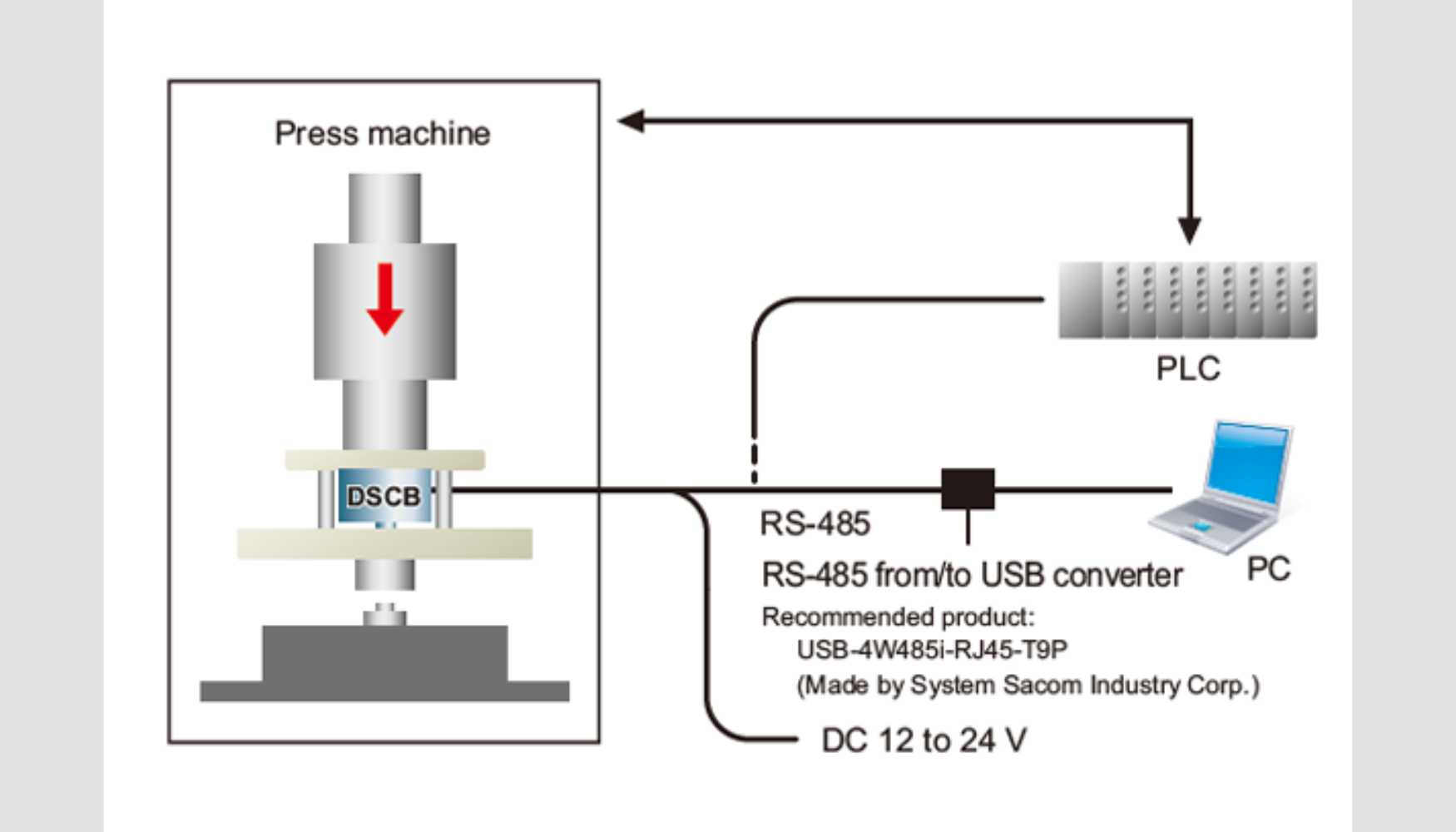

Amplifier incorporated, the output format is compliant with RS-485 standard thus is noise resistant
Hold function and high/low limit comparison function can be used without an indicator
Displays load change on PC in real-time

download Request a quotation

Technical Information

Model	DSCB-1KN	DSCB-2KN	DSCB-5KN	DSCB-20KN	DSCB-50KN
Rated capacity	1 kN	2kN	5kN	20kN	50kN
Safe overload	500% R.C.
Load cell material	Stainless steel
Non-linearity	0.1% R.O. or less R.O.
Hysteresis	0.2% R.O. or less R.O.
Repeatability	0.1% R.O. or less R.O.
Compensated temperature range	-10 to +60℃
Safe temperature range	-20 to +70℃
Temperature effect on zero	0.015% R.O./℃ or below
Temperature effect on span	0.01% R.O./℃ or below
Converter resolution	24 bit
Deflection at rated	0.010 mm	0.012 mm	0.021 mm	0.035 mm	0.065 mm
Natural frequency	22 kHz	22 kHz	21 kHz	26 kHz	15 kHz
Weight	300 g	300 g	400 g	400 g	2.0 kg
Power supply voltage	DC 12 to 24 V±15% (Insulated internally)
Power consumption	0.7 W or less
Digital low-pass filter	Can be set anywhere between OFF, 0.1 to 999.9 Hz
Moving average filter	Can be set anywhere between OFF, 2 to 999 times
Sampling rate	4800 times/sec.
Interface	RS-485 interface (4-wire)
Operation & setting methods	Display & configuration by command operation or through dedicated software (Free software)
Dedicated software function	Indicated value display Waveform display Setting changes Data logging function
Display digit number	5 digits (-99999 to +99999 plus decimal point)
Other functions	Digital zero OK/NOK judgment (Upper and lower limit comparison: HH, HI, OK, LO, LL) Hold function (Sample. Peak, Bottom, Peak & Bottom, Average) Calibration date / rated capacity / serial info read-out
Cable	φ5 6-conductor flexible cable (2 m) Cable end: 7 wires
Optional accessories	φ5 6-conductor flexible cable (5 m) Cable end: 7 wires
CE marking certification	EMC directives EN61326-1, EN61326-2-3
