INTELLIGENT RFID READER-WRITER MTR-115

Intelligent reader/writer with integrated NFC reader/writer for both FeliCa and Mifare.

Model: MTR-115

Can operate autonomously without a control PC.
Two operating modes
Reads IC cards in stand-alone mode using only the main unit and transmits data to a higher level server or similar.
It can also be controlled by sending commands like a normal reader/writer.
As a network compatible IC card reader, no USB connection is required.
LED flashing and sound can also be used in conjunction with reading.

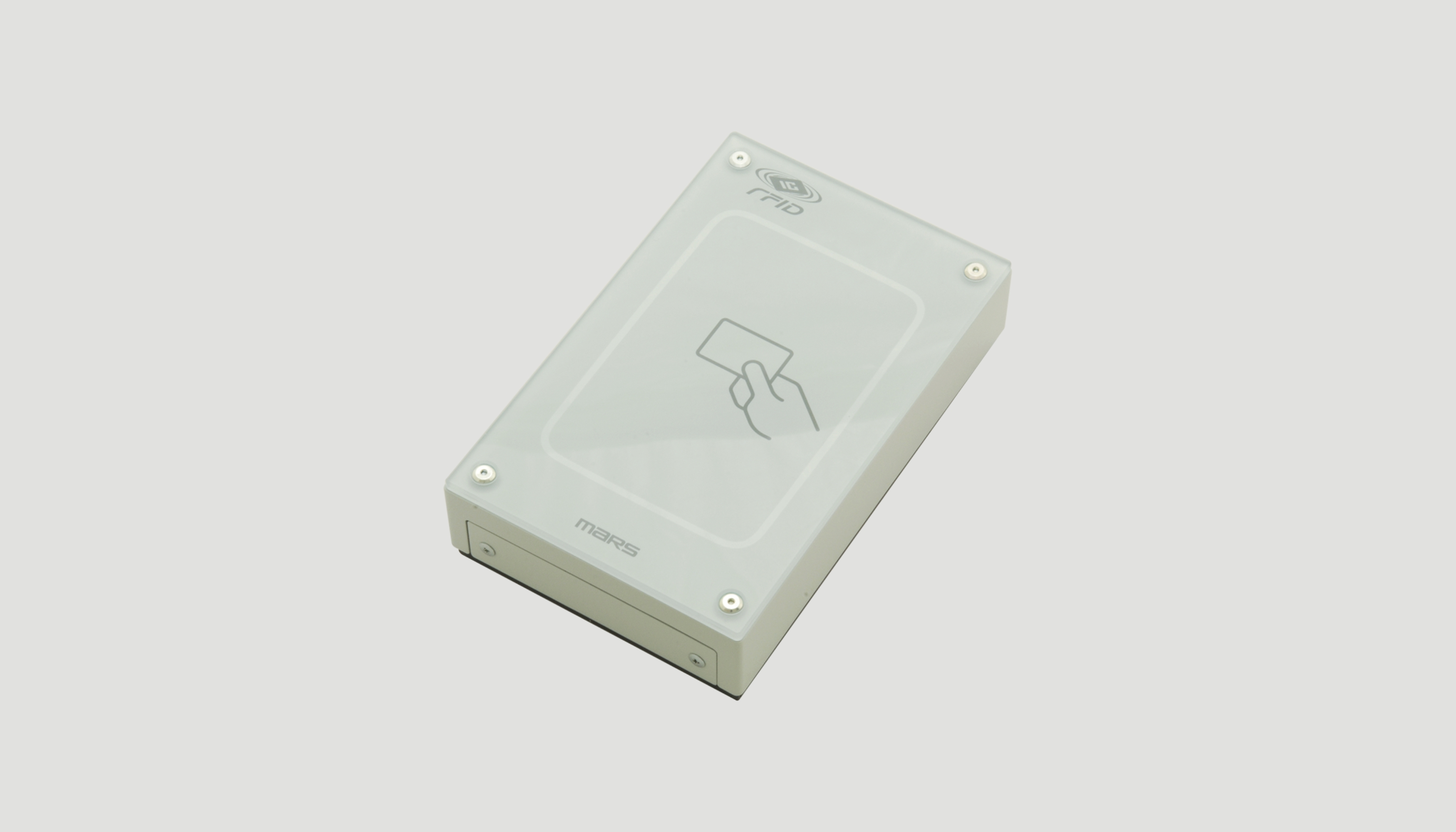

The new model has a stylish design and can be used as a wall or desktop unit.
NFC IP-2 (ISO/IEC 21481) compatible, Mifare ISO/IEC 14443 Type A, FeliCa (not compatible with encryption), ISO/IEC 14443 Type B, ISO/IEC 15693

Two modes can be selected to suit the application: stand-alone mode, which operates autonomously according to pre-defined settings, and command response mode, which operates according to commands from the host.
In stand-alone mode, the device operates as an IC card reader and various settings can be easily made via a browser.
The user simply sets the target IC card to be read, the data to be sent, the LEDs and sounds, etc., without having to write any code.
If more complex operations are required, the on-board software can be customized.
RS-232C and LAN are available; for LAN connections, the user can choose between HTTP and Socket communication.
It can also be used in environments where USB cannot be used on a PC for security reasons.

HTTP communication is possible, allowing it to be used in system design in conjunction with web applications.
PoE is also included as standard, so there is no need for a power supply and it can be operated using just a LAN cable.

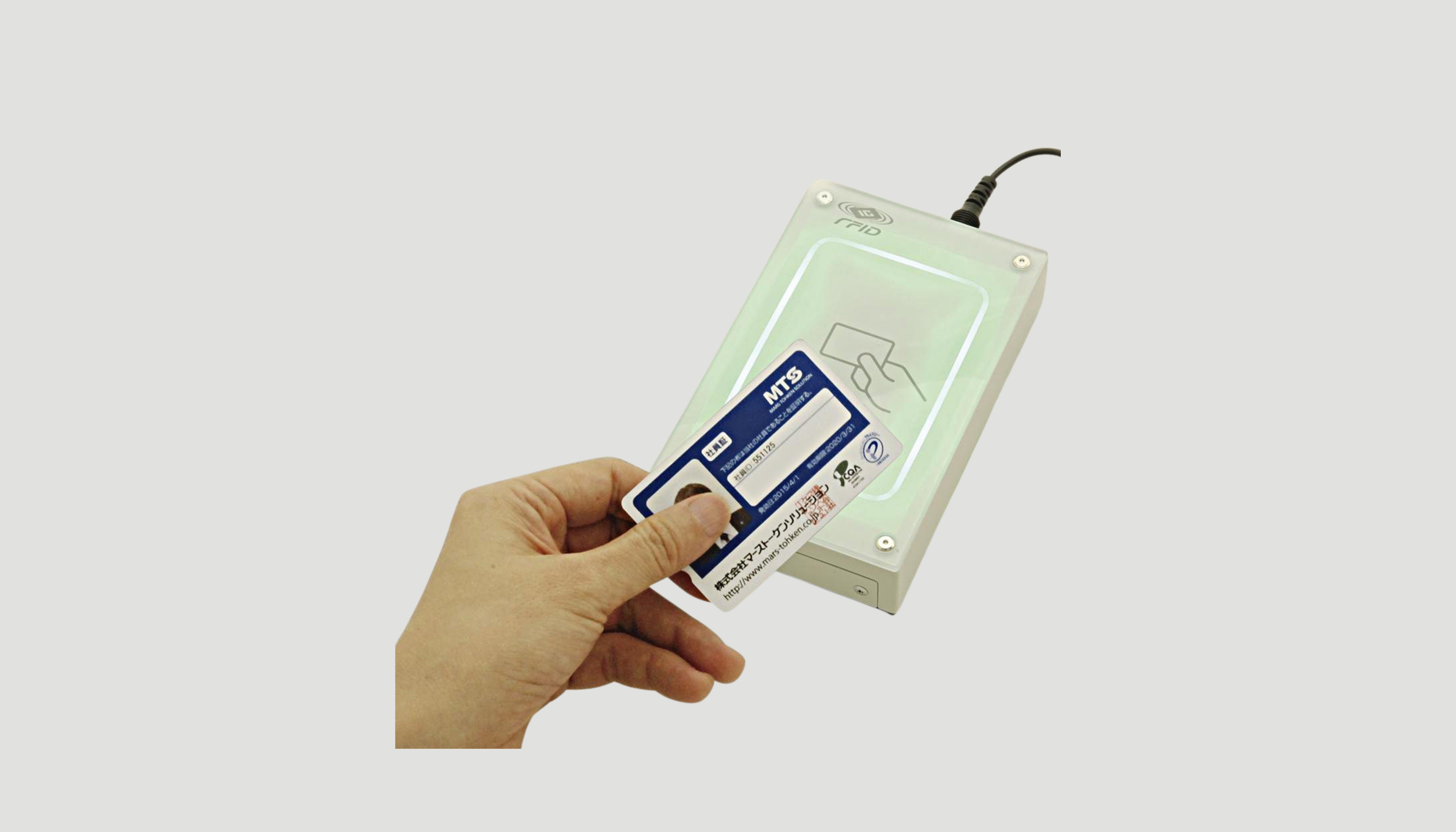

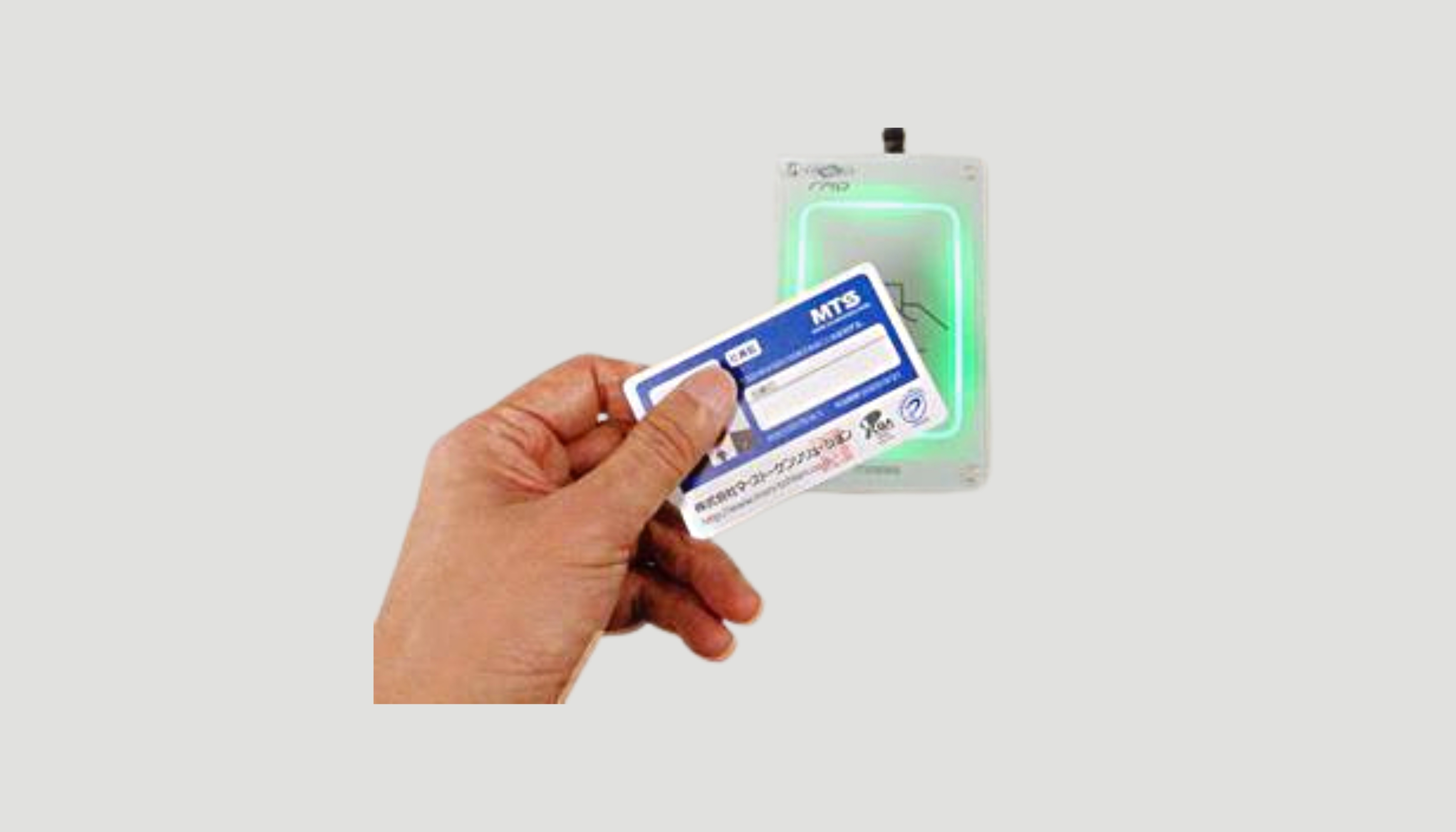

The user interface design features tricolour LEDs around the reading area, making it very easy to see when an IC card has been read and to confirm when an error has occurred.
Sound and music can also be played through the built-in speaker.

Model		MTR-115
Display part	LED	LED:RGB x 6
Sound		Speaker output 0.5W (max 1W)
External interface	Cable LAN	10Base-T/100Base-TX x 1 port
External interface	RS-232C	TXD, RXD, RTS, CTS × 1 Port
Power source	Rated voltage	DC12V±10% or IEEE802.3af compliant POE hub/POE injector
Power source	Maximum power consumption	6W
Environmental condition	Operating Temperature and Humidity	0 to +40°C / 20 to 80% RF *No condensation.
Environmental condition	Storage temperature and humidity	-10 to +60°C/10 to 90%RF *No condensation.
Outer dimensions		88(W)×34(H)×138(D)mm *excluding rubber feet and protruding parts
Dust and spill resistant		IP3X
Weight		Approx. 450g
RFID reader/writer	Communication frequency	13.56MHz
	Target IC tag	NFC-IP2 (Mifare classic (1k,4k), Mifare Ultralight, FeliCa (non-cryptographic))
	Target IC tag	FeliCa lite ISO/IEC14443 TypeB、ISO/IEC15693(I-CODE SLI ,etc )
