UHF RFID ANTENNA MARS TOHKEN

Range of UHF RFID antennas with different characteristics for different applications

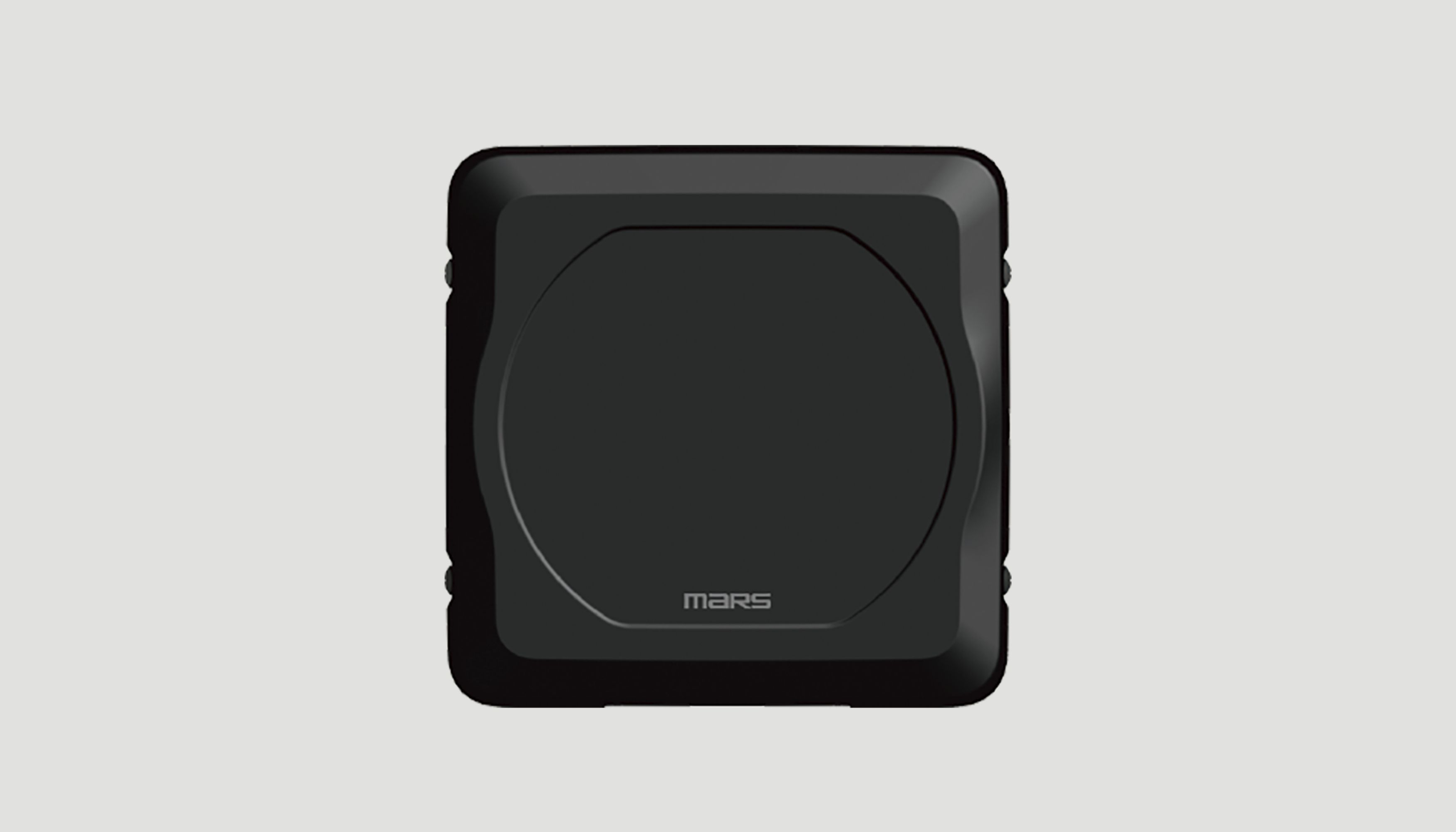

Model: UAT-001G / UAT-002 / UAT-006

The UAT-002 high gain antenna for 1W premises radios is now available

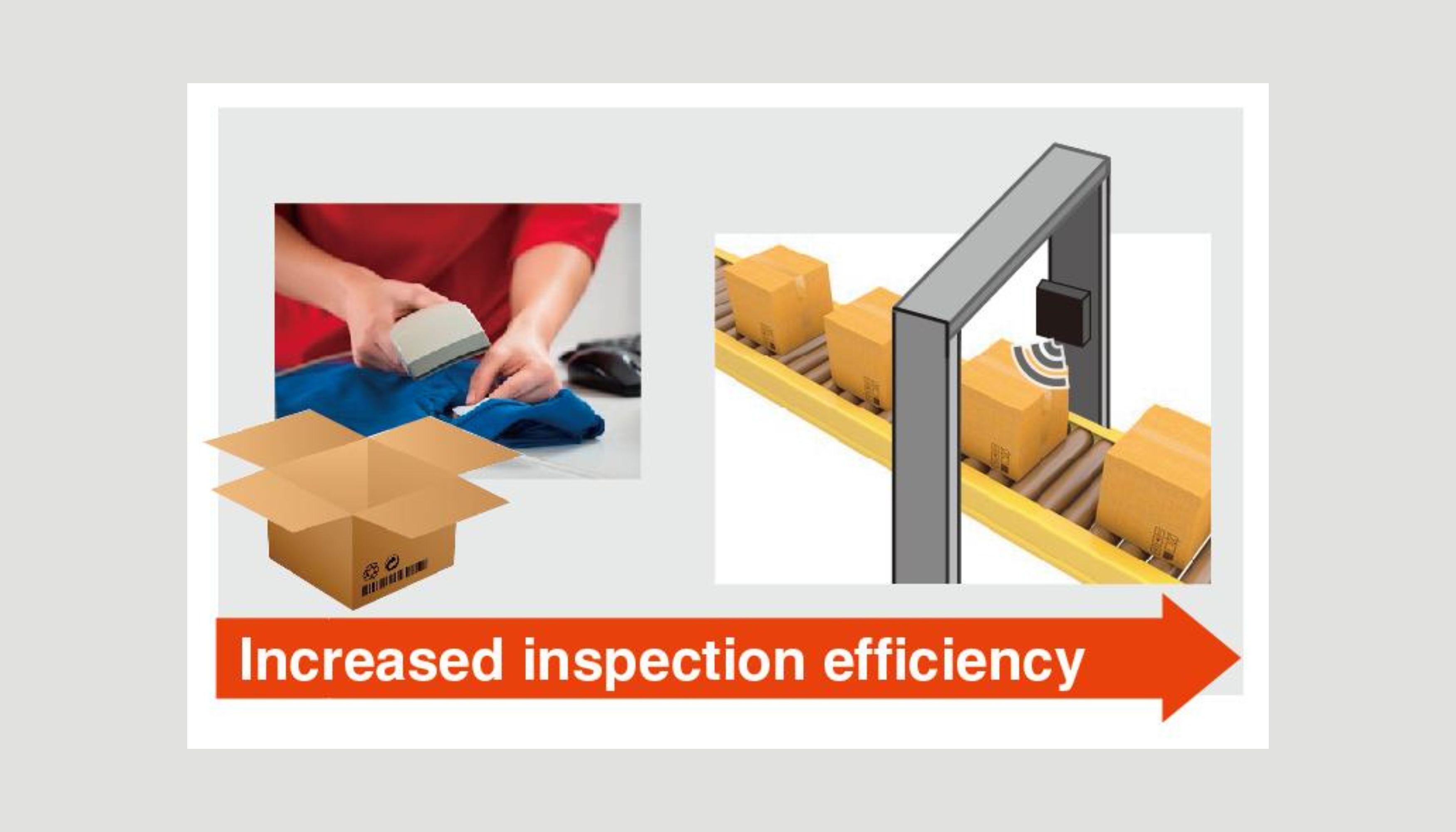

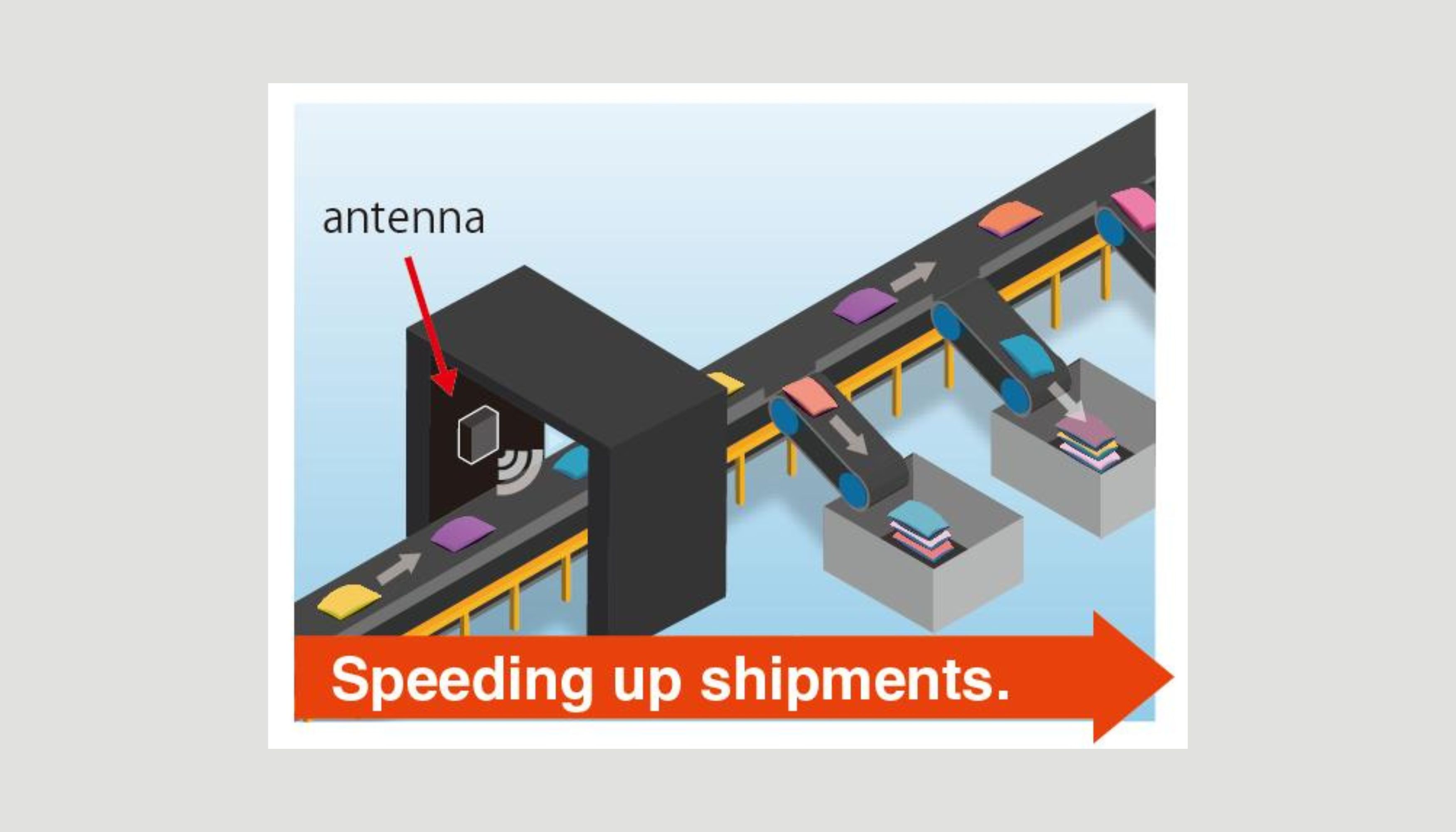

The UAT-001G and UAT-002 general purpose antennas are available for applications where a large number of tags need to be read in batches to improve operational efficiency. Increased inspection efficiency. Automatic transport batch inspection. Allows incoming inspection while packed. Speeding up shipments. Controlled destination sorting on automated conveyor lines.

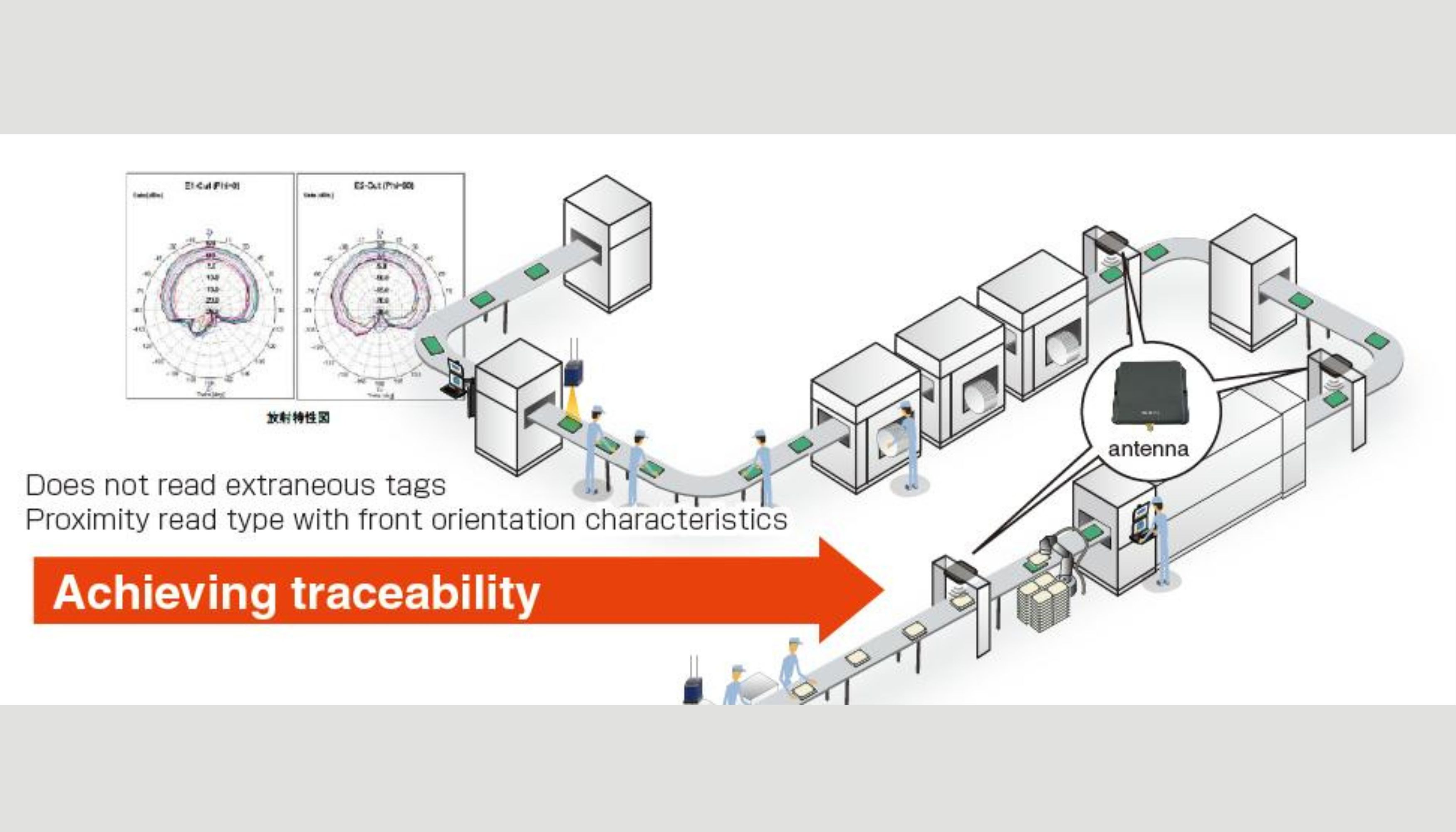

For equipment integration, the UAT-006 is a compact proximity antenna that does not read unnecessary tags. Proximity read type with front orientation characteristics. Achieving traceability

Model		UAT-002	UAT-001G	UAT-006
Polarization characteristics		Circular polarization
Frequency		917～925MHz
Applicable reader/writer		MRU-F5100JP/FRU-4100Plus	MRU-F5025/MRU-F5100JP/FRU-4025/FRU-4025Plus	MRU-F5025/MRU-F5100JP/FRU-4025/FRU-4025Plus
Gain		6 dBi or less	3 dBi or less	2.2 dBi or less
Operating environment	Operating temperature	0-40°C (no condensation)	0 to 50°C (no condensation)
	Operating humidity	20-85% RF (no condensation)
	Storage temperature and humidity	-20 to 60°C (non-condensing) / 10 to 90% RF (non-condensing)
	Dust and spill resistant	-	IP52/JIS Drip-proof Type II (*1)	-
External dimensions *Excluding projections (W x H x D)		182 x 33.5 x 182 mm		182 x 33.5 x 182 mm
Weight		Approx. 590g	650g	80g
