Technical Information

Optimum reading performance

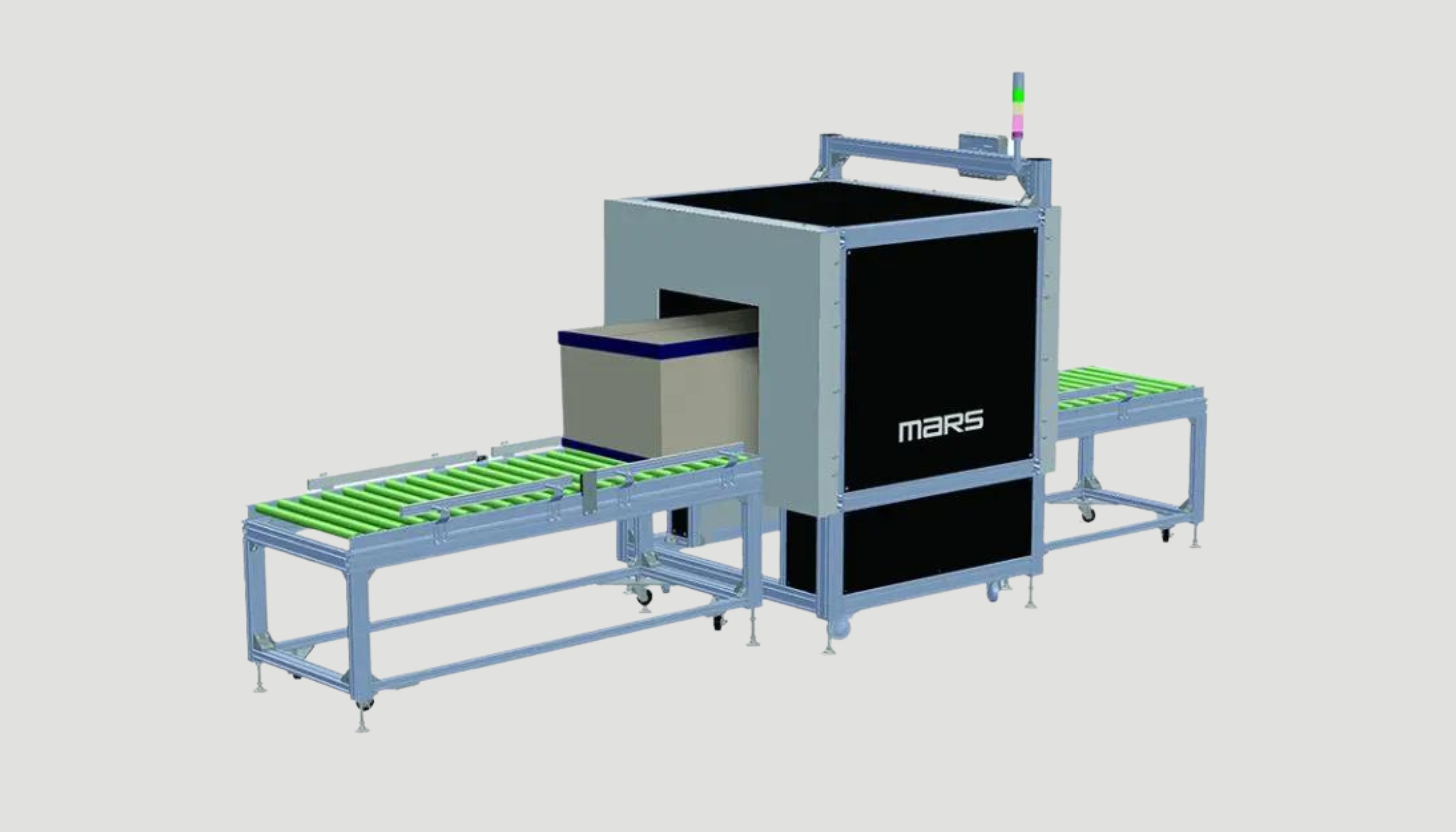

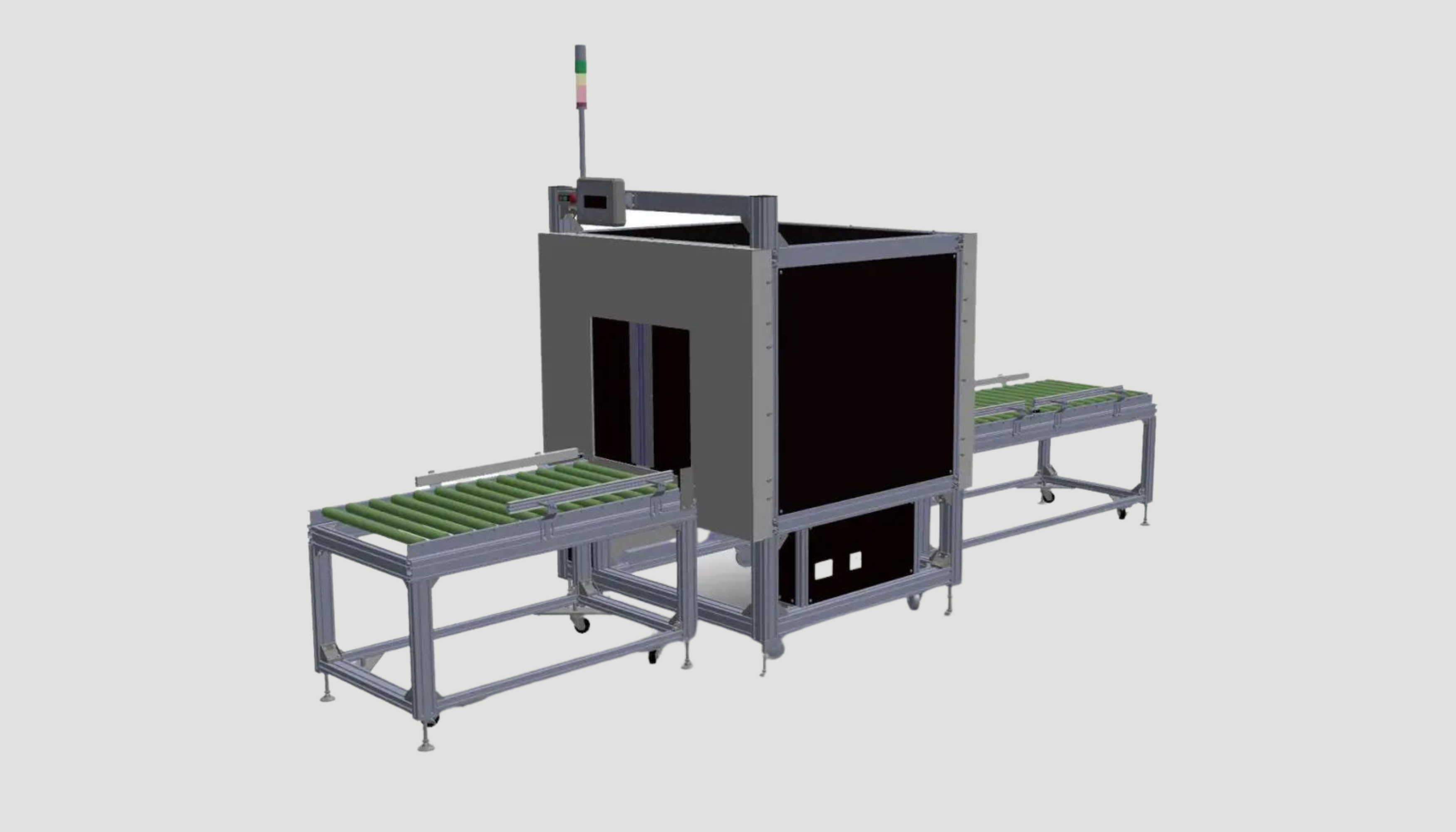

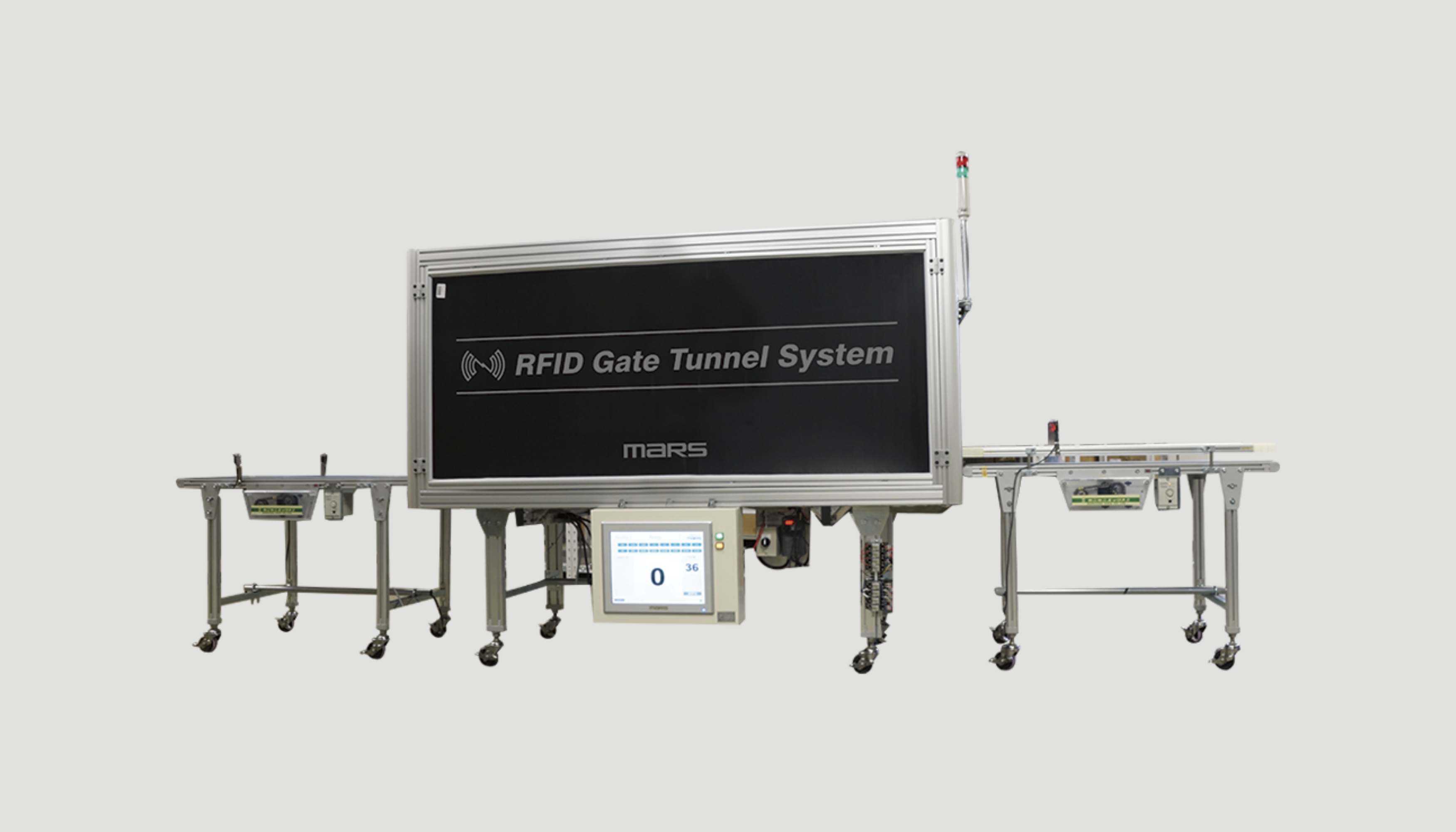

  • In-house developed reader/writer and reading software for optimum reading performance. Tunnel-type readers with integrated UHF RFID reader/writer are ideal for reading on conveyors.
  • The system has been customized to provide optimum reading performance according to the customer's requirements.
  • It can be easily adapted to a wide range of applications.
  • Can be customized to suit the product to be scanned and the packaging.

Flexibility

  • Despite its compact size, it achieves high-accuracy reading and can be used in a wider range of workplaces. Combined with our newly developed reading software, it can also be used in the garment industry, consumer goods, books, medical equipment, etc., to quickly achieve on-site DX for logistics and operations required by society.
  • Wide range of antennas to choose from due to in-house development. Optimum customization possible.
  • Combinations of large antennas and high power 1W reader/writers are available, as well as specified low power 250mW reader/writer models that do not require an application.
    A wide range of antennas have been certified for technical compliance.
  • The optimum reader/writer and antenna can be selected according to the object to be read.
  • Can tailor the optimum solution to suit the product to be read and the packaging.
  • A unique algorithm automatically adjusts the optimum reading settings according to the number of inputs and the site environment.



Electromagnetic shielding boxes

  • Electromagnetic shielding boxes that do not read IC tags outside the gate.
  • They are shielded against reading IC tags of external, non-targeted goods, improving workability during actual operation.



In-line compatible

  • The system can be linked to other manufacturers’ conveyors, such as in-line conveyors, simply by connecting to the PIO, and the on-board automatic shutters allow greater automation of operations.
