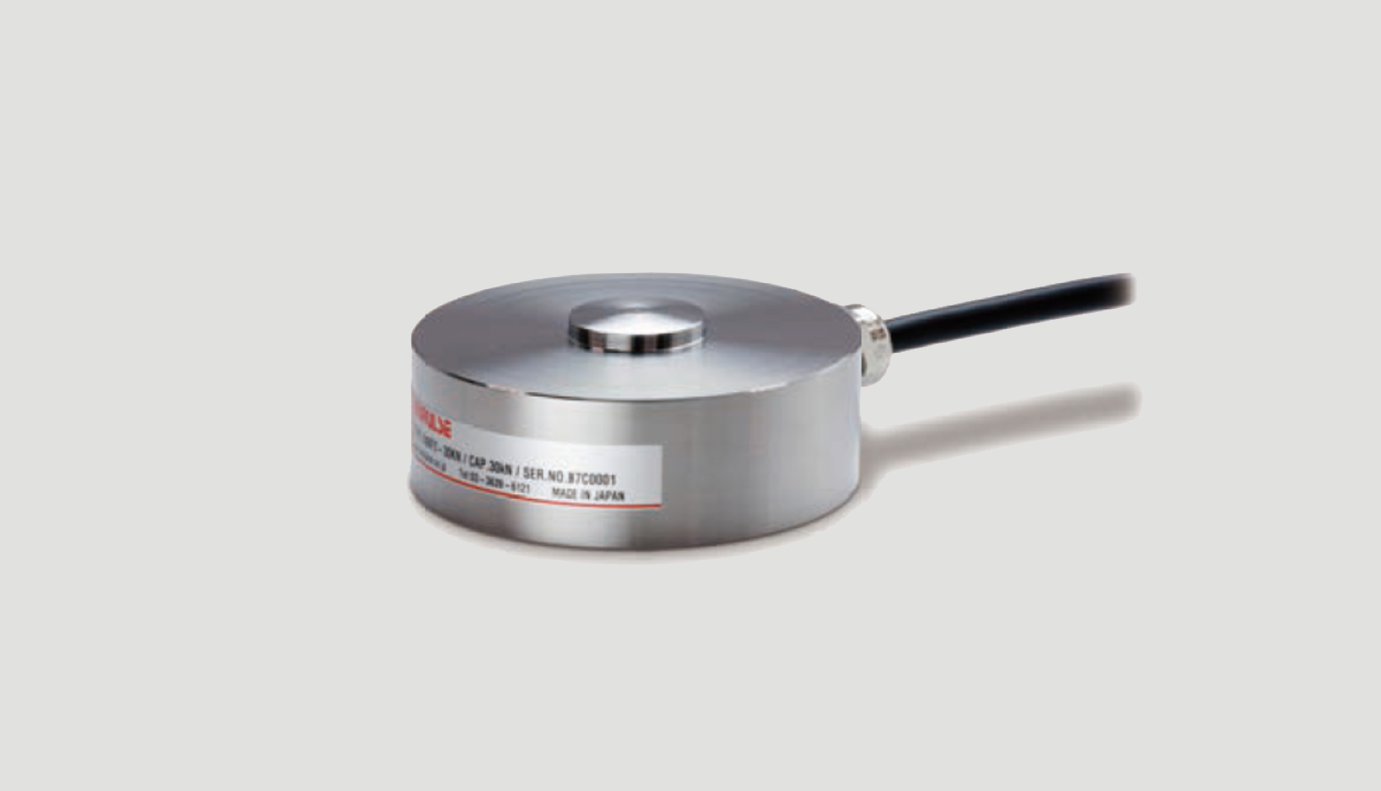

| Model | UNBF2-30KN, UNBF2-50KN, UNBF2-100KN, UNBF2-200KN, UNBF2-300KN, UNBF2-500KN | |
| Rated capacity | 30, 50, 100, 200, 300, 500 | kN |
|---|---|---|
| Rated output | 2±0.5% | mV/V |
| Safe overload | 150 | %R.C. |
| Zero balance | ±10 | |
| Non-linearity | 0.35 | |
| Hysteresis | 0.35 | |
| Repeatability | 0.20 | |
| Compensated temperature range | -10 to +60 | ℃ |
| Safe temperature range | -20 to +70 | ℃ |
| Temperature effect on zero | 0.1 | %R.O./10℃ |
| Temperature effect on span | 0.1 | %R.O./10℃ |
| Input resistance | Approx.400 | Ω |
| Output resistance | Approx.350 | Ω |
| Recommended excitation voltage | 10 | V |
| Maximum excitation voltage | 20 | V |
| Insulation resistance (DC50V) | 1000 or more | MΩ |
| Cable | φ8 4-conductor color shield cable. Length 3m. | |
| Cable color code | ＋EXC: Red＋SIG: White－EXC: Blue－SIG: BlackSHIELD: Yellow | |
| Loadcell material | Stainless steel | |
| Deflection at rated | 30KN：0.13050KN：0.140100KN：0.160200KN：0.200300KN：0.250500KN：0.350 | mm |
| Natural frequency | 30KN：950KN：12100KN：17200KN：9.4300KN：8.9500KN：6.2 | kHz |
| Weight | 30KN：1.650KN：1.6100KN：1.6200KN：3.9300KN：6.3500KN：11 | kg |
