LOADCELL UNIPULSE UNLS

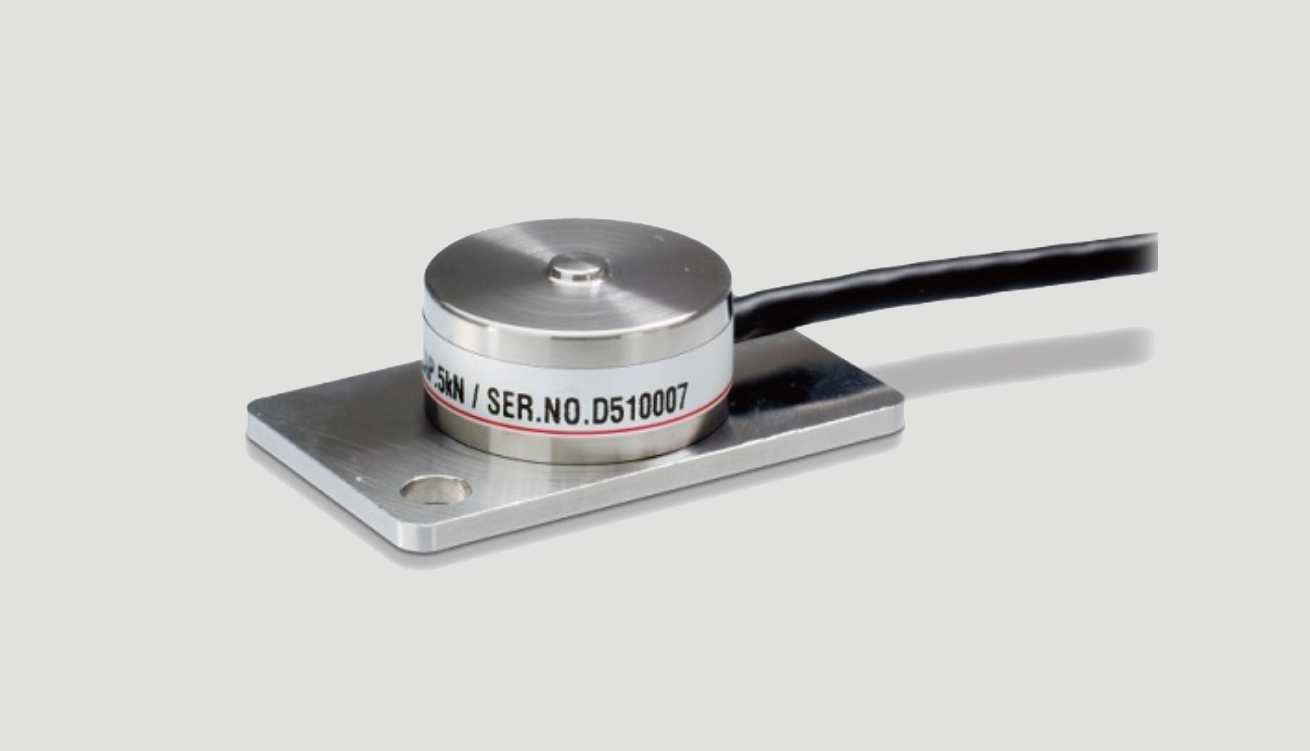

Compact compression type loadcell with a diameter of 21 mm and a height of 10 mm

Model: UNLS-100N, UNLS-200N, UNLS-500N,UNLS-1KN, UNLS-2KN, UNLS-5KN, UNLS-100N-FG, UNLS-200N-FG, UNLS-500N-FG, UNLS-1KN-FG, UNLS-2KN-FG, UNLS-5KN-FG



Technical Information

Model UNLS-100N, UNLS-200N,UNLS-500N,UNLS-1KN,UNLS-2KN, UNLS-5KN, UNLS-100N-FG, UNLS-200N-FG, UNLS-500N-FG,UNLS-1KN-FG,UNLS-2KN-FG,UNLS-5KN-FG
Rated capacity 100, 200, 500, 1k, 2k, 5k N
Rated output 1±20% mV/V
Safe overload 150 %R.C.
Zero balance ±10 %R.O.
Non-linearity 0.5 1.0 %R.O.
Hysteresis 0.3 0.5 %R.O.
Repeatability 1.0 1.0 %R.O.
Compensated temperature range 0 to +50 ℃
Safe temperature range 0 to +60 ℃
Temperature effect on zero 0.5 %R.O./10℃
Temperature effect on span 0.5 %R.O./10℃
Input resistance Approx.350 Ω
Output resistance Approx.350 Ω
Recommended excitation voltage 2.5 V
Maximum excitation voltage 5 V
Insulation resistance (DC50V) 1000 or more MΩ
Cable φ3 4-conductor color　shield cable. Length 2m.End treatment 5-leads.
Cable color code ＋EXC: Red＋SIG: Green－EXC: White－SIG: BlackSHIELD: Yellow
Loadcell material Stainless steel
Deflection at rated 100N：0.015200N：0.015500N：0.0201kN: 0.0202kN: 0.0255kN: 0.040 mm
Natural frequency 100N：35200N：47500N：601kN: 852kN: 985kN: 102 kHz
Weight 100N: 20, 100N-FG: 35200N: 20, 200N-FG: 35500N: 20, 500N-FG: 351kN: 20, 1kN-FG: 352kN: 20, 2kN-FG: 355kN: 20, 5kN-FG: 35 g
