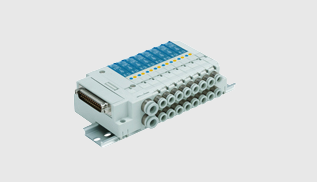

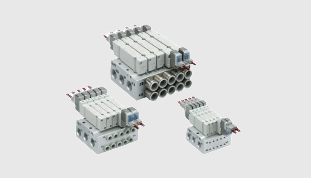

SOLENOID VALVE SMC SY3000/5000/7000 SERIES

5 Port Solenoid Valve

Model: SY3120-5GE-C4-F1/VBA22A-03GN/SY3140-5HZ/VBA42A-04GN

Technical Information

Valve type SY3000 SY5000 SY7000 SY9000
Fluids Ari
Operating pressure range of control valve (MPa) 2 positions 1 coil 0.15 to 0.7
Operating pressure range of control valve (MPa) 2 positions 2 coils 0.1 to 0.7
Operating pressure range of control valve (MPa) 3 positions 0.2 to 0.7
Fluid and ambient temperature (°C) -10 to 50 (no freezing)
Old-fashioned operating frequency (Hz) 2 positions 1 coil, 2 coil 10 5
Ancient operating frequency (Hz) 3 positions 3
Manual start No lock, press mode; Slotted rotary presser Rotary press, lock, with convex lever
Air release method of the control valve unit Main valve and control valve use the same discharge port
Lubrication No need
How to install Unlimited
Impact/vibration resistance (m/s2 ) 150/30
Device case Dustproof (DIN port and M8 connector according to: IP65)
