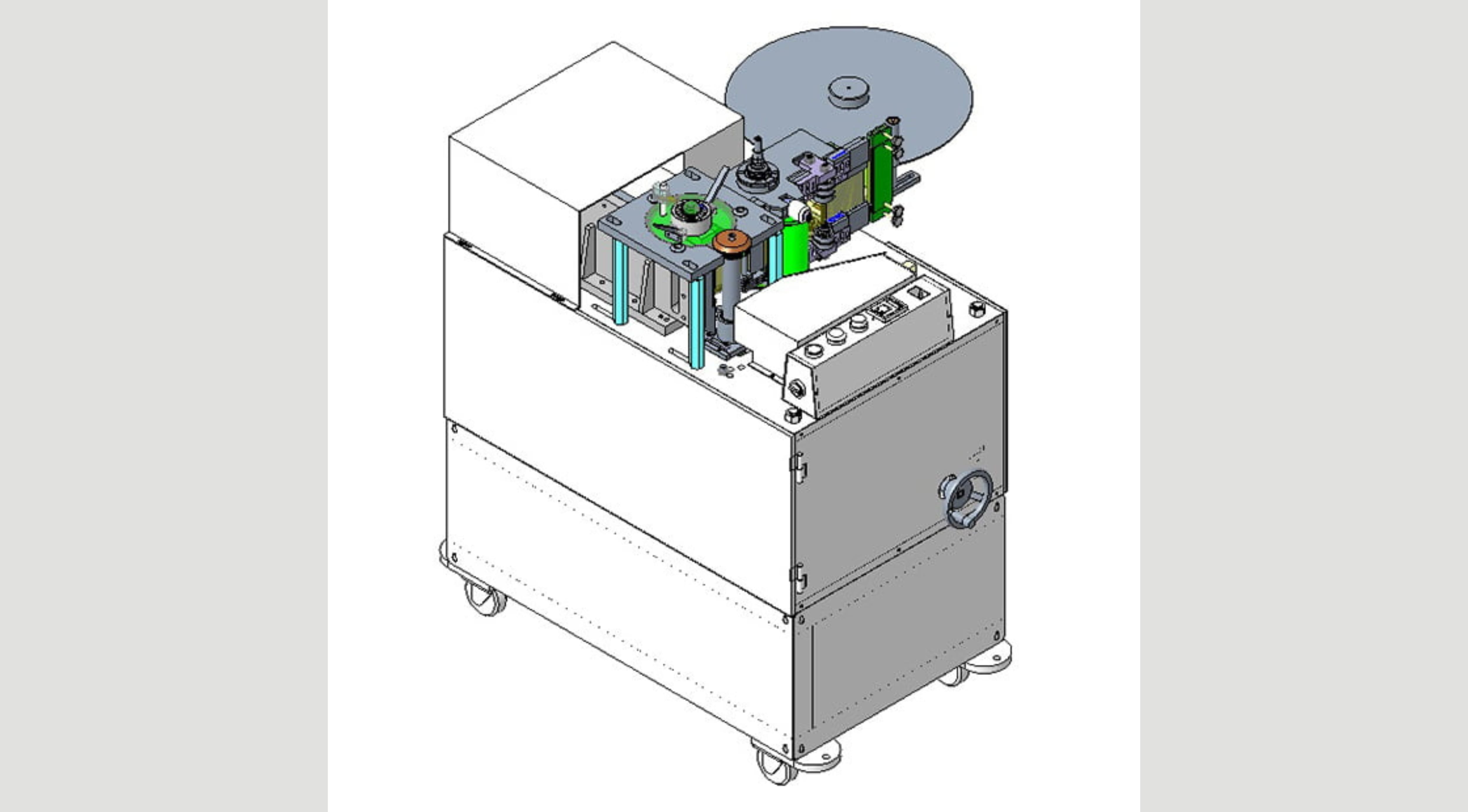

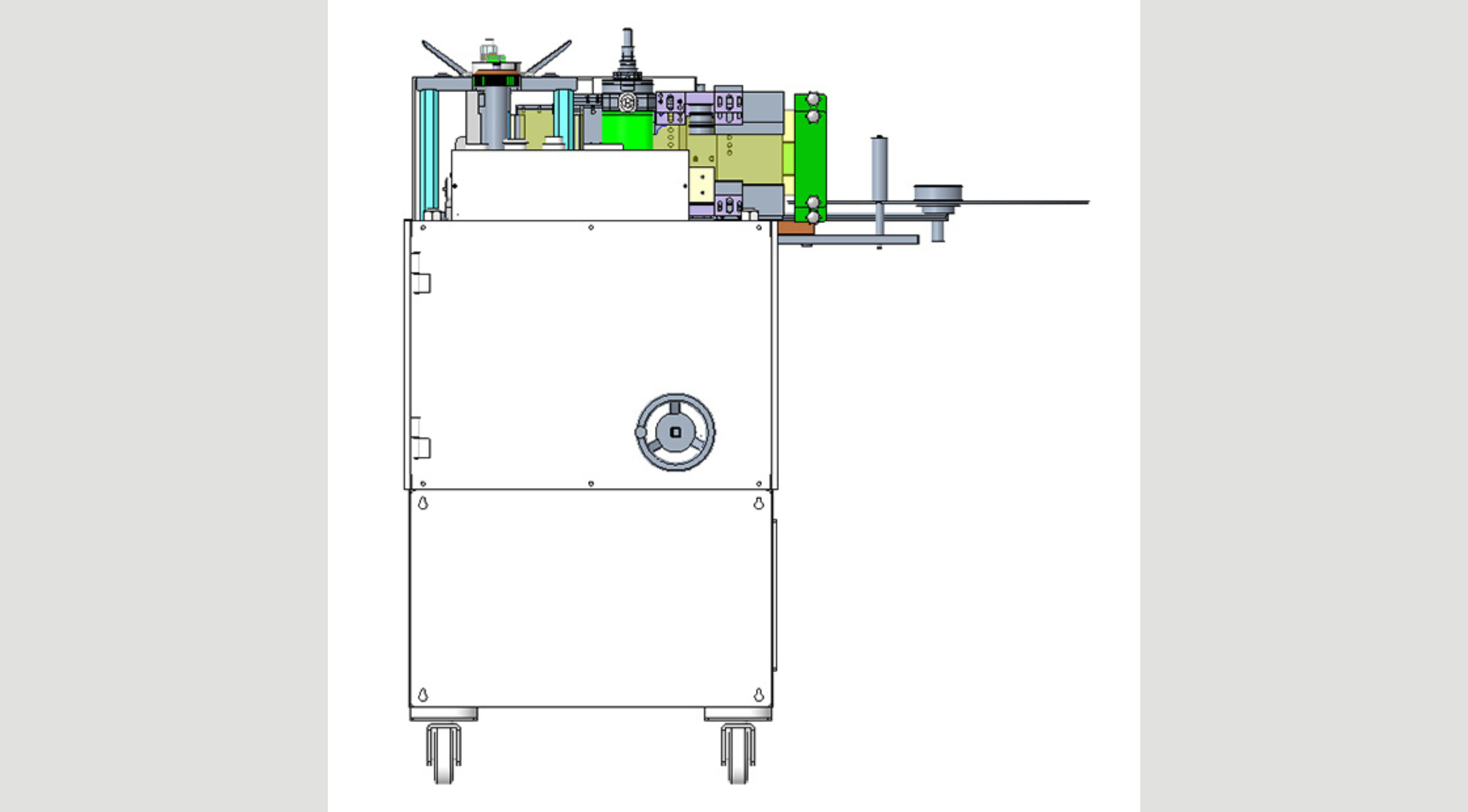

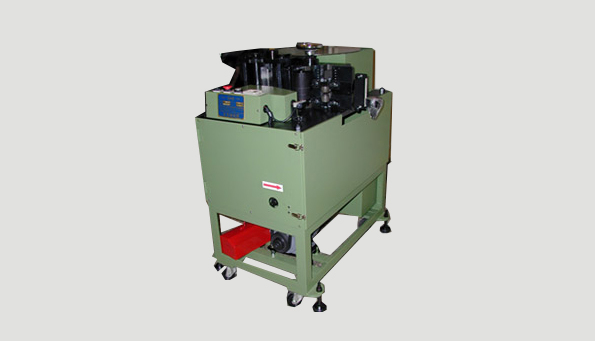

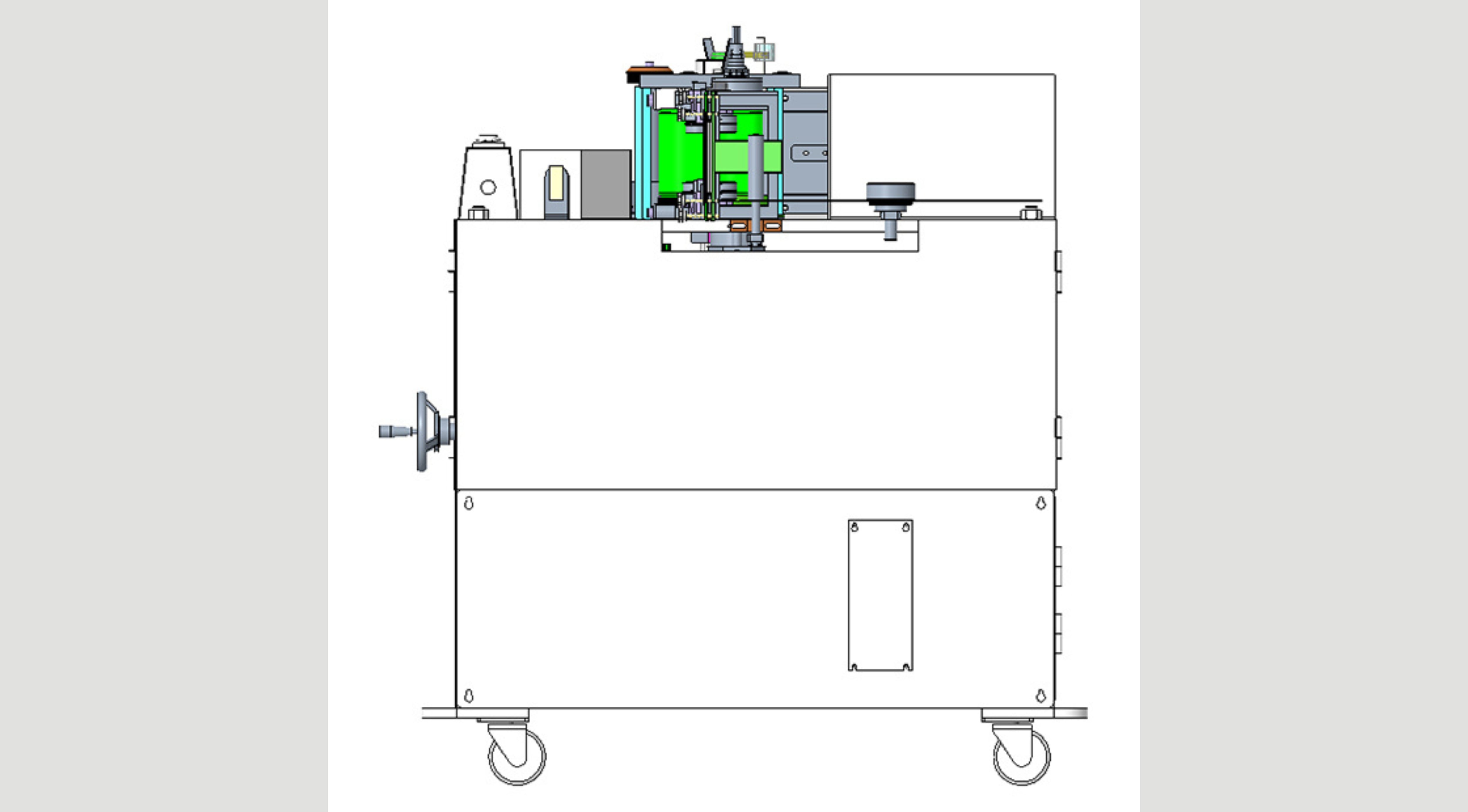

This machine feeds insulation paper from the reel, folds, and cuts it to a preset length forms it to suit the shape of stator slot , inserts into the slot and indexes the stator to next slots. This machine repeats the above actions in a circle until all slots are insulated.
The only thing the operator has to do is to load and unload the stator on the core nest and depress button to start inserting. Then, the operation inserting cell is finished.
This machine has a robust construction and has been compactly designed , it can extend the limit of machine and be easy to arrange to production line.
| STATOR OUTSIDE DIA. |
MAX：180mm
|
| STATOR STACK HEIGHT | 20-110mm |
| NUMBER OF SLOTS | 8-48 Slots |
| INSULATION FILM THICKNESS | 0.19-0.4mm |
| INSERTING SPEED |
0.5 Slot/Second.60/50HZ
|
| POWER SUPPLY |
3Ø.220/380V.50/60HZ
|
| MOTOR |
1 HP AC Motor
|
| DIMENSION |
95(L) * 100(W) * 115(H) cm
|
| WEIGHT | 450Kgs |
