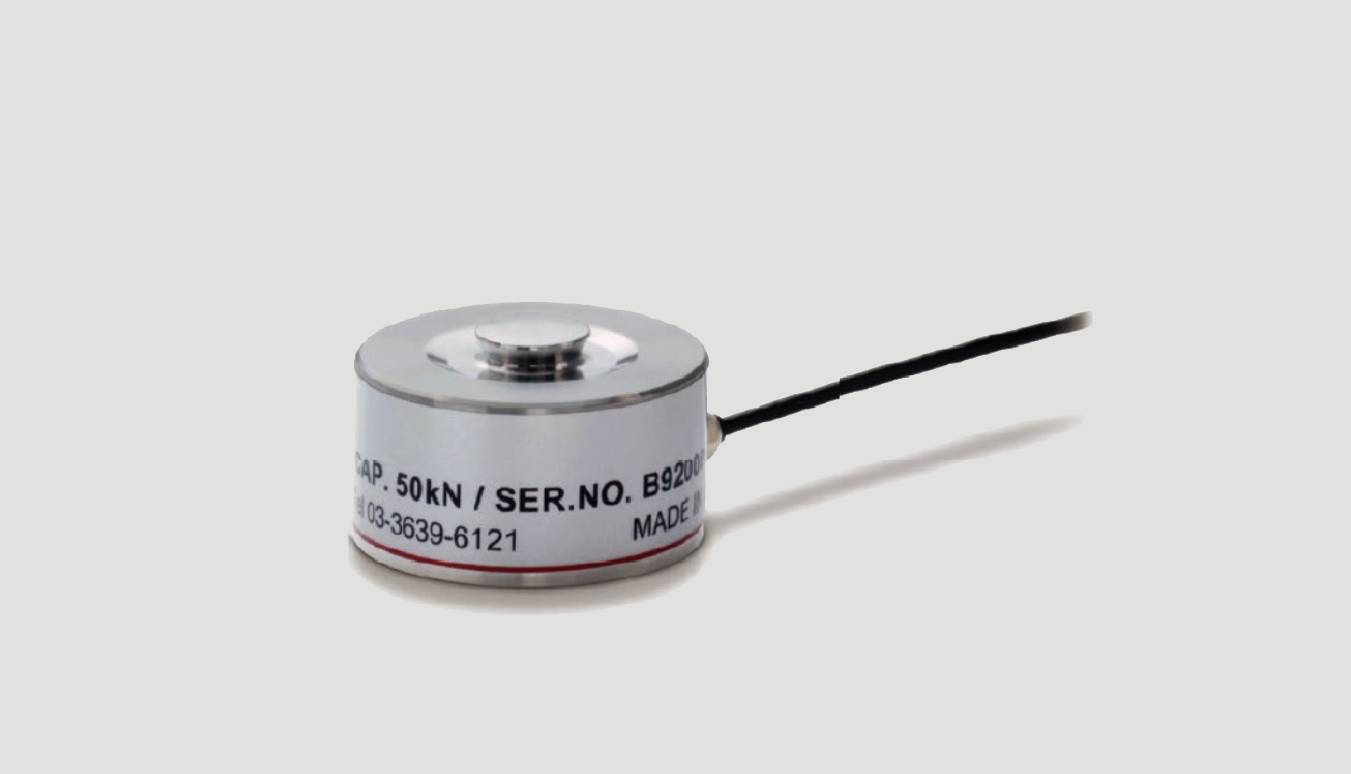

TENSION - COMPRESSION LOADCELL UNIPULSE USH

Compact high-capacity compression type loadcell

Model: USH-10kN, USH-20kN, USH-50kN

Technical Information

Model USH-10KN, USH-20KN USH-50KN
Rated capacity 10,20 50 kN
Rated output 1±20% mV/V
Safe overload 200 %R.C.
Zero balance ±20 %R.O.
Non-linearity 0.2 %R.O.
Hysteresis 0.15 %R.O.
Repeatability 0.1 %R.O.
Compensated temperature range -10 to +70 ℃
Safe temperature range -30 to +85 ℃
Temperature effect on zero 0.2 %R.O./10℃
Temperature effect on span 0.2 %R.O./10℃
Input resistance Approx.1000 Ω
Output resistance Approx.1000 Ω
Recommended excitation voltage 5 V
Maximum excitation voltage 7.5 V
Insulation resistance 1000 or more MΩ
Cable φ2.5mm 6-conductor flexible cable (3m)
Cable color code ＋EXC : Red＋S : Yellow－S : Orange－EXC : Black＋SIG : Green－SIG : WhiteSHIELD : Blue
Deflection at rated 0.06 0.07 mm
Natural frequency 20 15 kHz
Loadcell material Stainless steel
Weight 100 180 g
