Tension/compression & center-hole type load cell

Model: UCPI-1KN, UCPI-2KN, UCPI-5KN, UCPI-10KN, UCPI-20KN, UCPI-50KN

There is a tapped hole cut in the center, and this load cell can be used for both tension & compression measurement.
Ideal for assembling into press machine and compression & tension testing machine due to its low-profile body.
The cable comes with a connector thus is exchangeable.

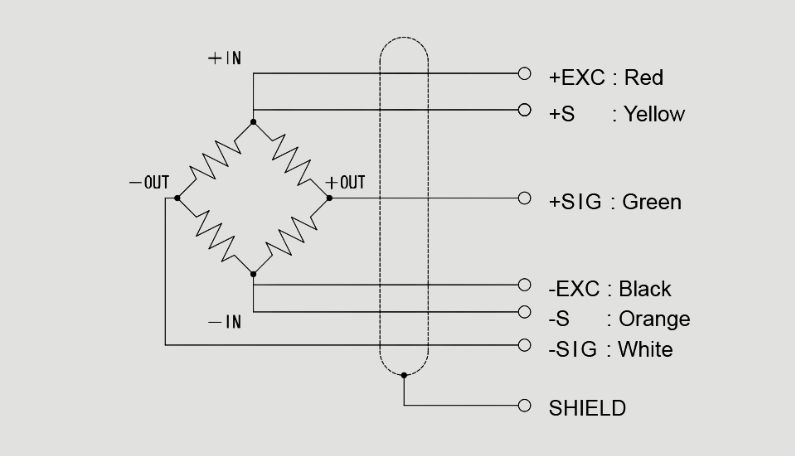

Supporting 6-wire (remote sensing), UCPI can weigh accurately even if wiring gets long.
Capacity: 1kN, 2kN, 5kN, 10kN, 20kN / Accuracy: 0.1%; Capacity 50kN / Accuracy: 0.15%

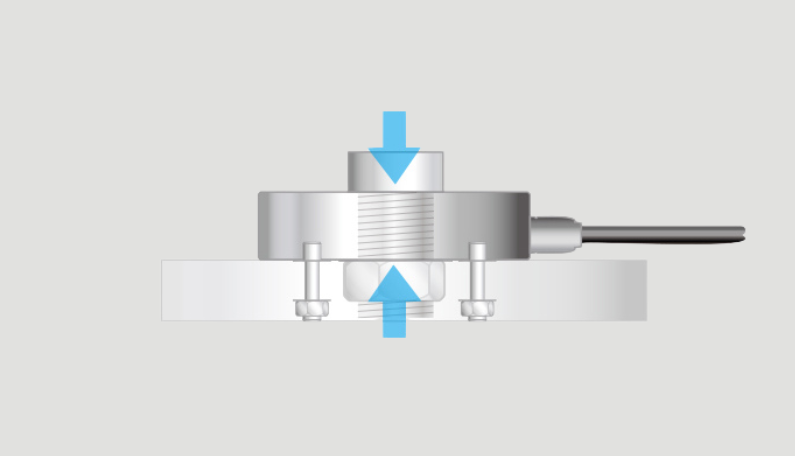

UCPI is capable of measuring axial force between bolt and nut, and is ideal for tension measurement of anchor!

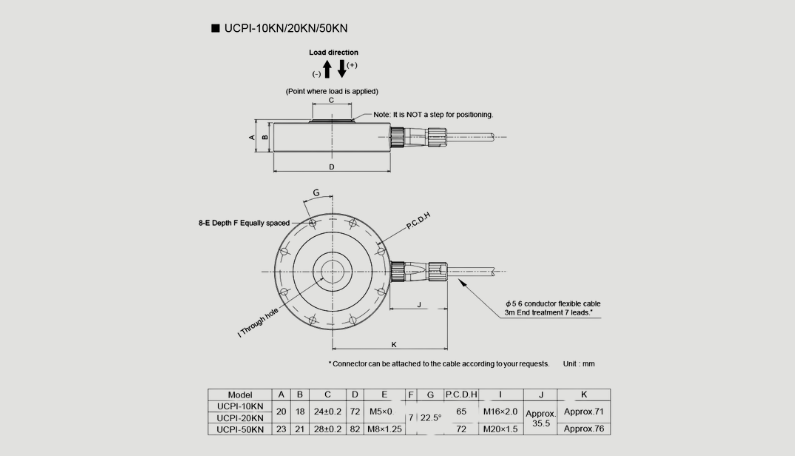

Model	UCPI-1KN	UCPI-2KN	UCPI-5KN	UCPI-10KN	UCPI-20KN	UCPI-50KN
Rated capacity	1kN	2kN	5kN	10kN	20kN	50kN
Rated output	Approx. 2mV/V
Safe overload	150%R.C.
Zero balance	±10%R.O.
Non-linearity	0.1% R.O. or less					0.15%R.O. or less
Hysteresis	0.1% R.O. or less					0.15%R.O. or less
Repeatability	0.1% R.O. or less
Compensated temperature range	-10 to +60℃
Safe temperature range	-20 to +70℃
Temperature effect on zero	0.1%R.O/10℃ or less
Temperature effect on span	0.1%R.O/10℃ hoặc nhỏ hơn
Input resistance	Approx. 1000Ω
Output resistance	Approx. 1000Ω
Recommended excitation voltage	10V
Maximum excitation voltage	15V
Insulation resistance	1000MΩ or more
Cable	φ5 6 conductor flexible cable 3m End treatment 7 leads.
Loadcell material	Stainless steel
Deflection at rated	0.05 mm		0.06 mm	0.04 mm	0.05 mm	0.06 mm
Natural frequency	5kHz	7k Hz	10kHz	10kHz	13kHz	13kHz
Weight	350g			410g		630g
