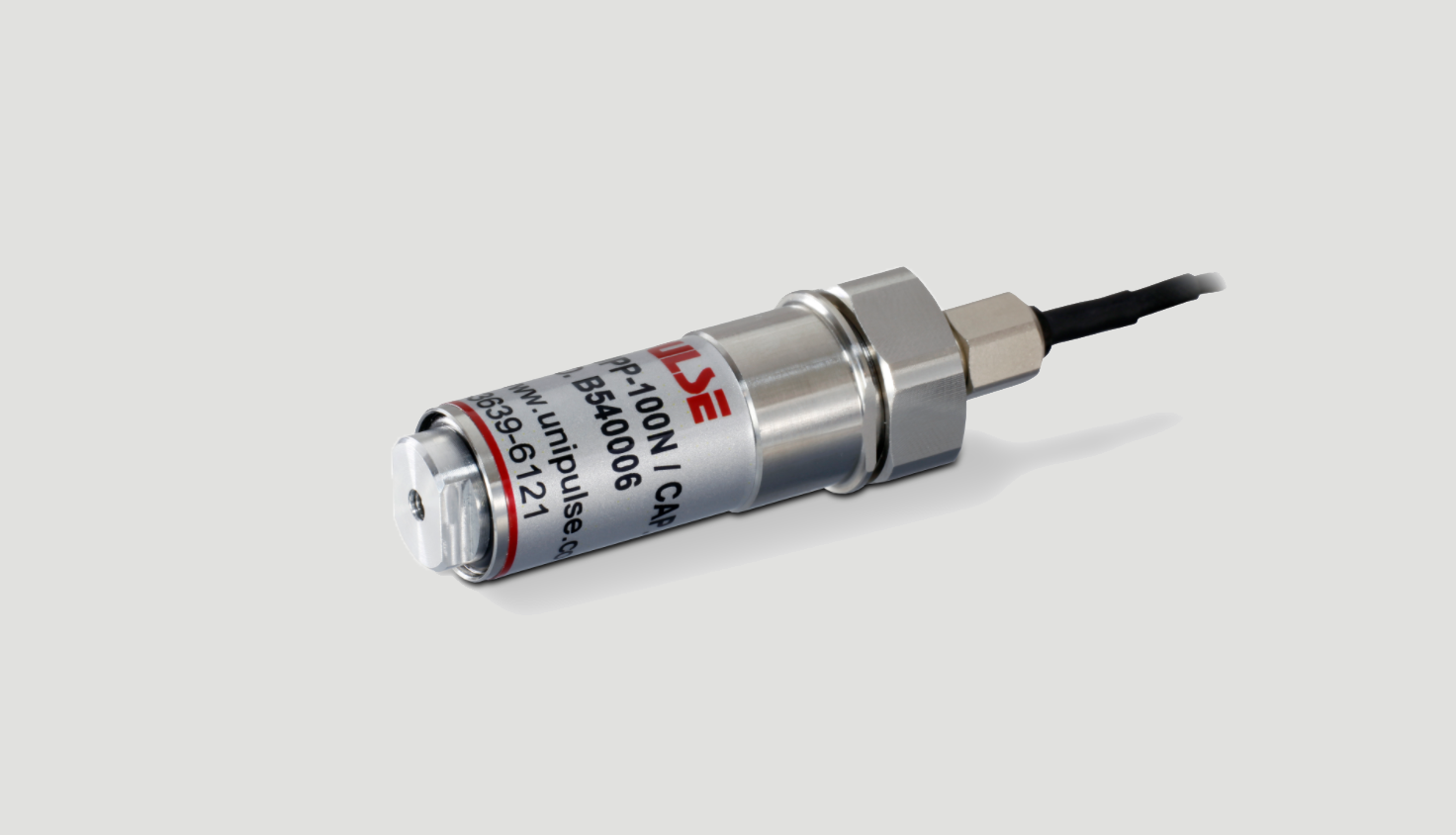

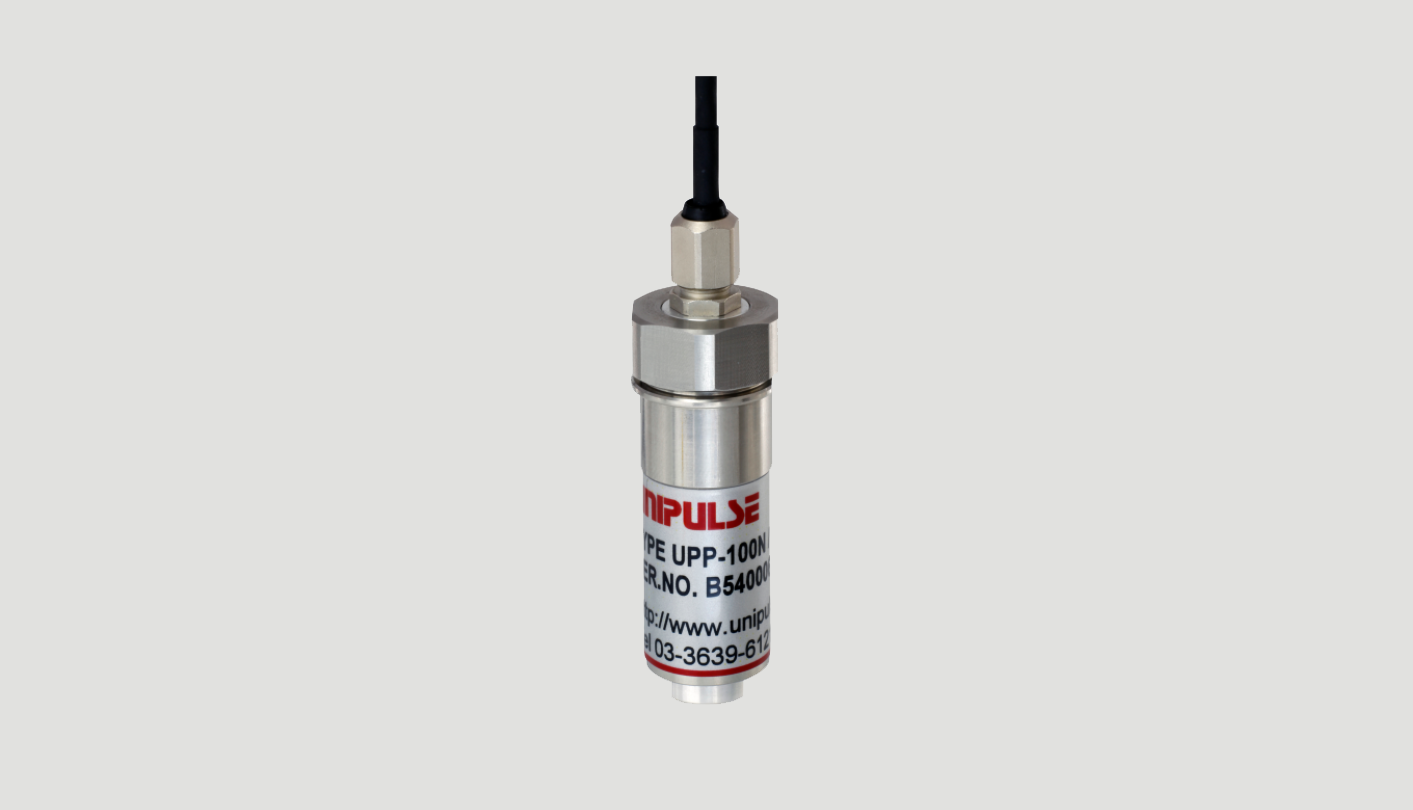

TENSION/COMPRESSION LOADCELL UNIPULSE UPP-100

Safe overload of 500% ! High axial stiffness ! Tension/compression loadcell

Technical Information

Model UPP-100N
Rated capacity 100 N
Rated output Approx. 0.4 mV/V
Safe overload 500 %R.C.
Zero balance ±0.3 mV/V
Non-linearity 0.5 %R.O.
Hysteresis 0.5 %R.O.
Repeatability 0.5 %R.O.
Compensated temperature range 0 to +40 ℃
Safe temperature range -10 to +50 ℃
Temperature effect on span 0.5 %R.O./10℃
Input resistance Approx. 1000 Ω
Output resistance Approx. 1000 Ω
Recommended excitation voltage 10 V(AC,DC)
Cable φ2mm 4-conductor flexible cable (1.5m)
Cable color code ＋EXC: Red＋SIG: Green－EXC: (Black/Blue)－SIG: WhiteSHIELD
Loadcell material Aluminum alloy
Weight Approx. 30 (Excluding the cable) g
